10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) BLADE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

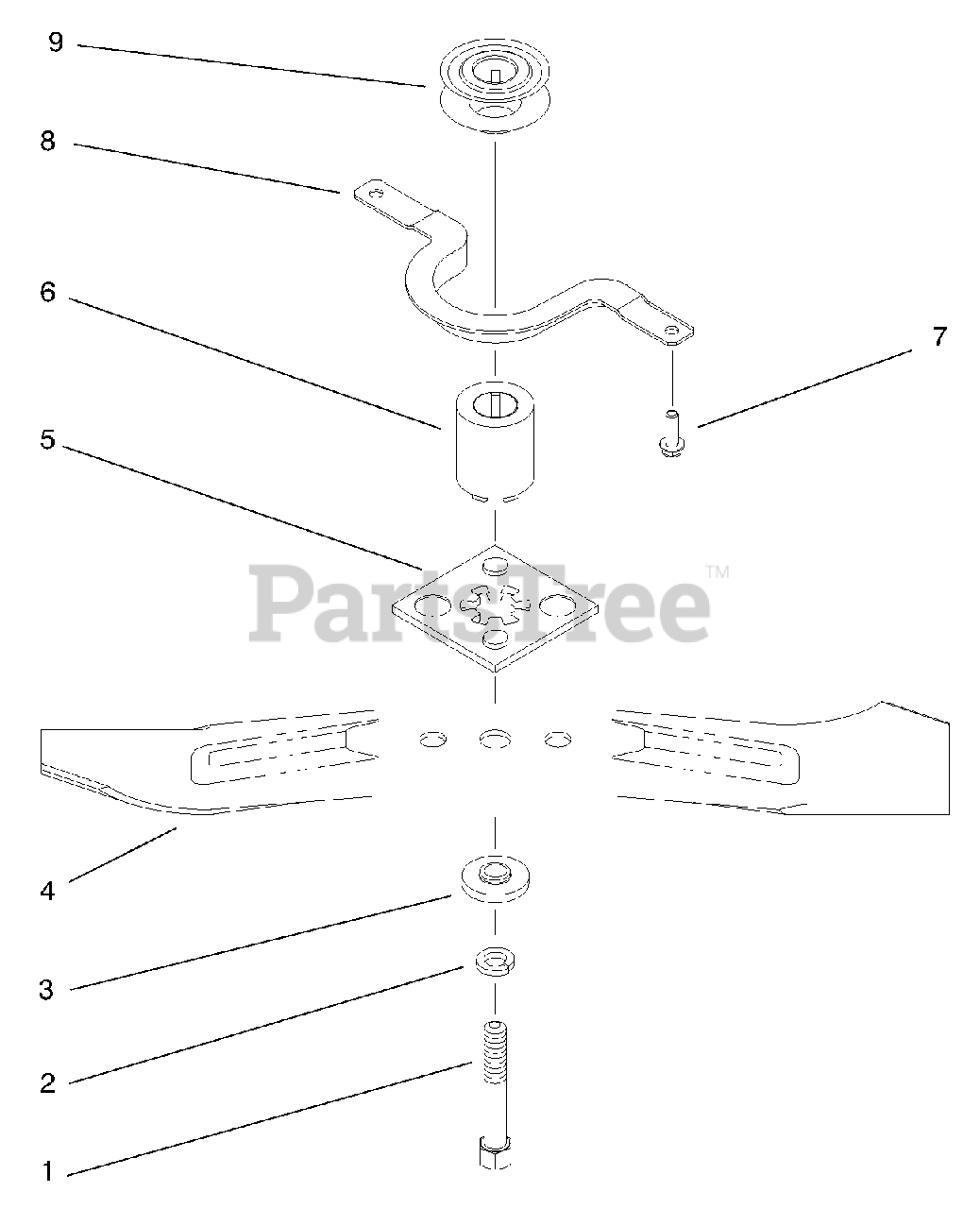

BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 26-0670

Bolt-Blade

$

$

Not available

2

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 92-8626

Spacer-Blade

$15.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612079

Blade 19"
(Superseded to 612079-03)

$38.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 146046

Plate-Blade Driver

$

$

Not available

6

Lawn-Boy 92-8807

Hub-Blade Driver

$

$

Not available

7

Lawn-Boy 32144-4

Screw-HH Tap

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 71-7960

Guide-Belt Engine
(Superseded to 71-7960-03)

$

$

Not available

9

Lawn-Boy 93-0278

Pulley-Driver

$49.99

$

Usually ships in 3-6 days

0
