10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1733E1 Parts Diagram

48cm Walk-Behind Mower, Canada

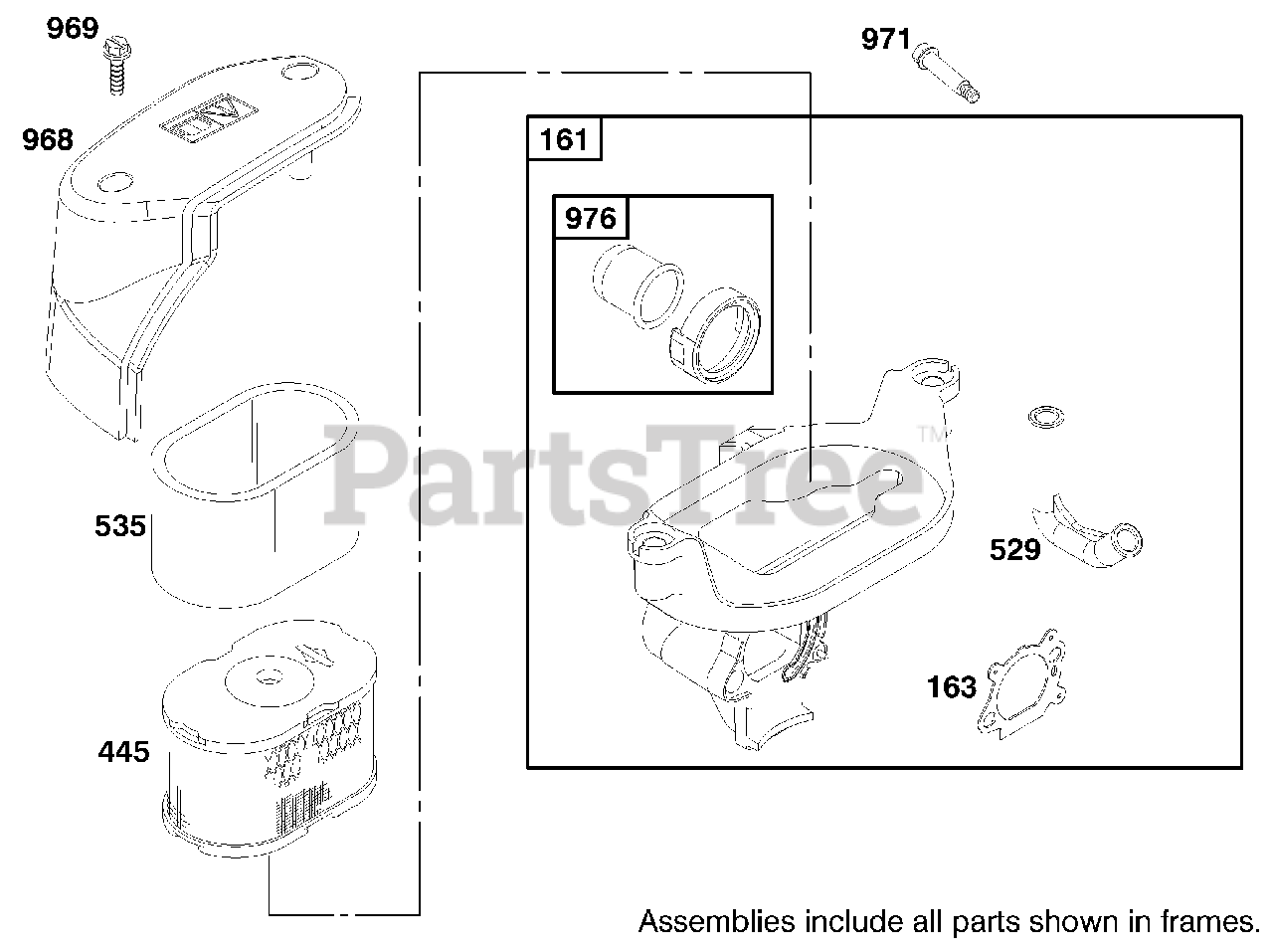

ENGINE BRIGGS & STRATTON MODEL 12U802-1733E1 Parts Diagram

  • Title

161

Lawn-Boy 497915

Base-Air Cleaner

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Obtain Parts from Briggs & Stratton Included in Gasket Set-Part No. 497316. Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

445

Lawn-Boy 497725

Filter-Air

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

529

Lawn-Boy 281556

Grommet-Breather

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

535

Lawn-Boy 273185

Filter-Air

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

968

Lawn-Boy 281535

Cover-Air Cleaner

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

969

Lawn-Boy 94777

Screw-Slotted Hex.

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

971

Lawn-Boy 94655

Screw-Shoulder

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

976

Lawn-Boy 496115

Primer-Carburetor

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable
