10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

48cm Walk-Behind Mower, Canada

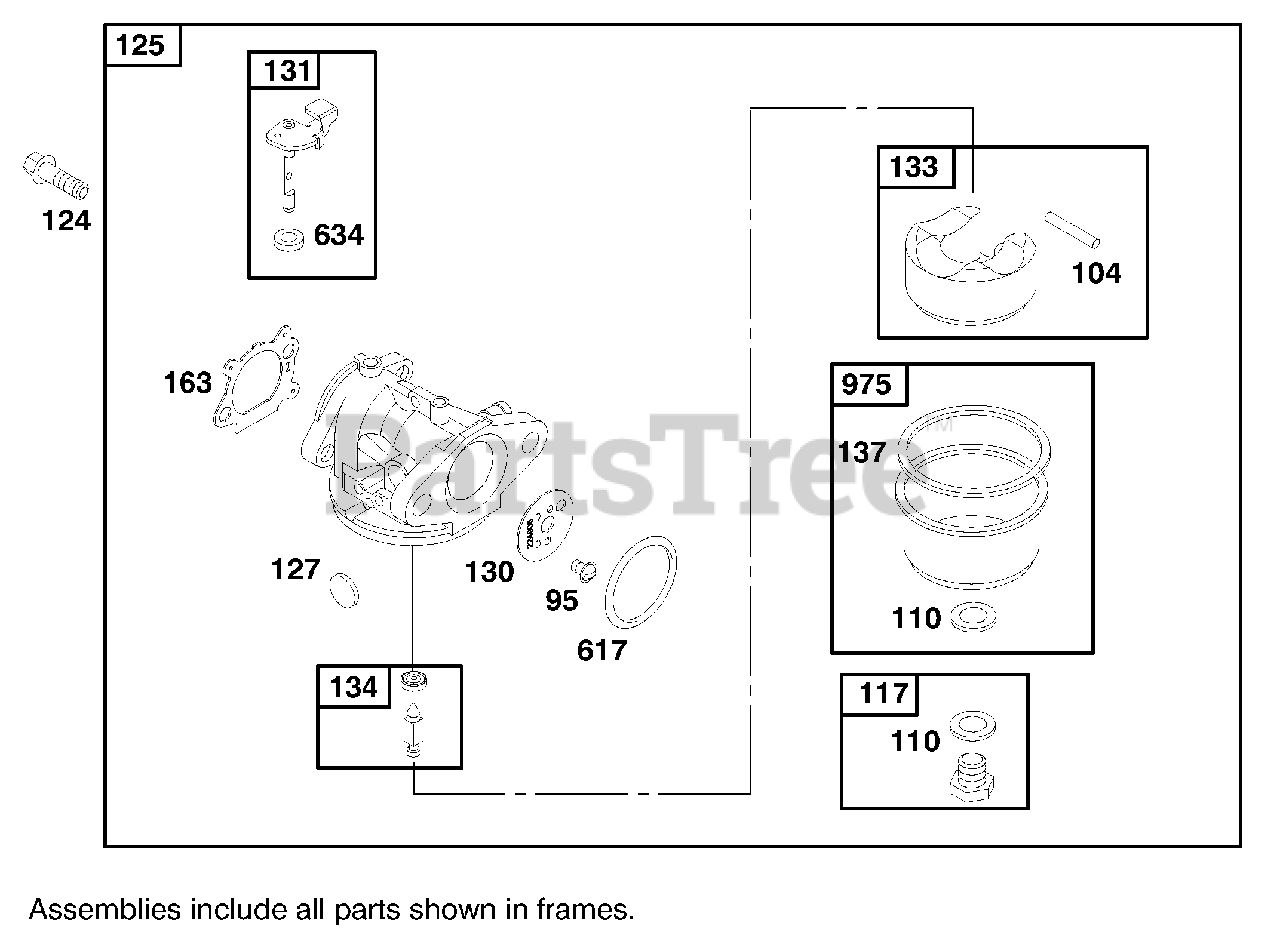

ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

  • Title

95

Lawn-Boy T94098

Screw-Throttle Valve Mtg.

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

104

Lawn-Boy T231371

Pin-Float Hinge

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

110

Gasket-Sealing (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

117

Lawn-Boy 498975

Jet-Main (Standard) Note: 496495 Jet-Main (High Altitude)

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Carburetor Mtg.

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

125

Lawn-Boy 498966

Carburetor

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Kit-Part No. 498260.

$

$

Not available

130

Lawn-Boy 224908

Valve-Throttle

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

131

Lawn-Boy T493267

Shaft-Throttle

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable

134

Lawn-Boy 398188

Kit-Needle/Seat

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Obtain Parts from Briggs & Stratton Included in Gasket Set-Part No. 497316. Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Gasket Set-Part No. 498261. Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton Included in Carburetor Gasket Set-Part No. 498261. Included in Carburetor Kit-Part No. 498260.

$

$

Not available

975

Lawn-Boy 493640

Bowl-Carburetor

Note: Obtain Parts from Briggs & Stratton

$

$

Currently unavailable
