10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

48cm Walk-Behind Mower, Canada

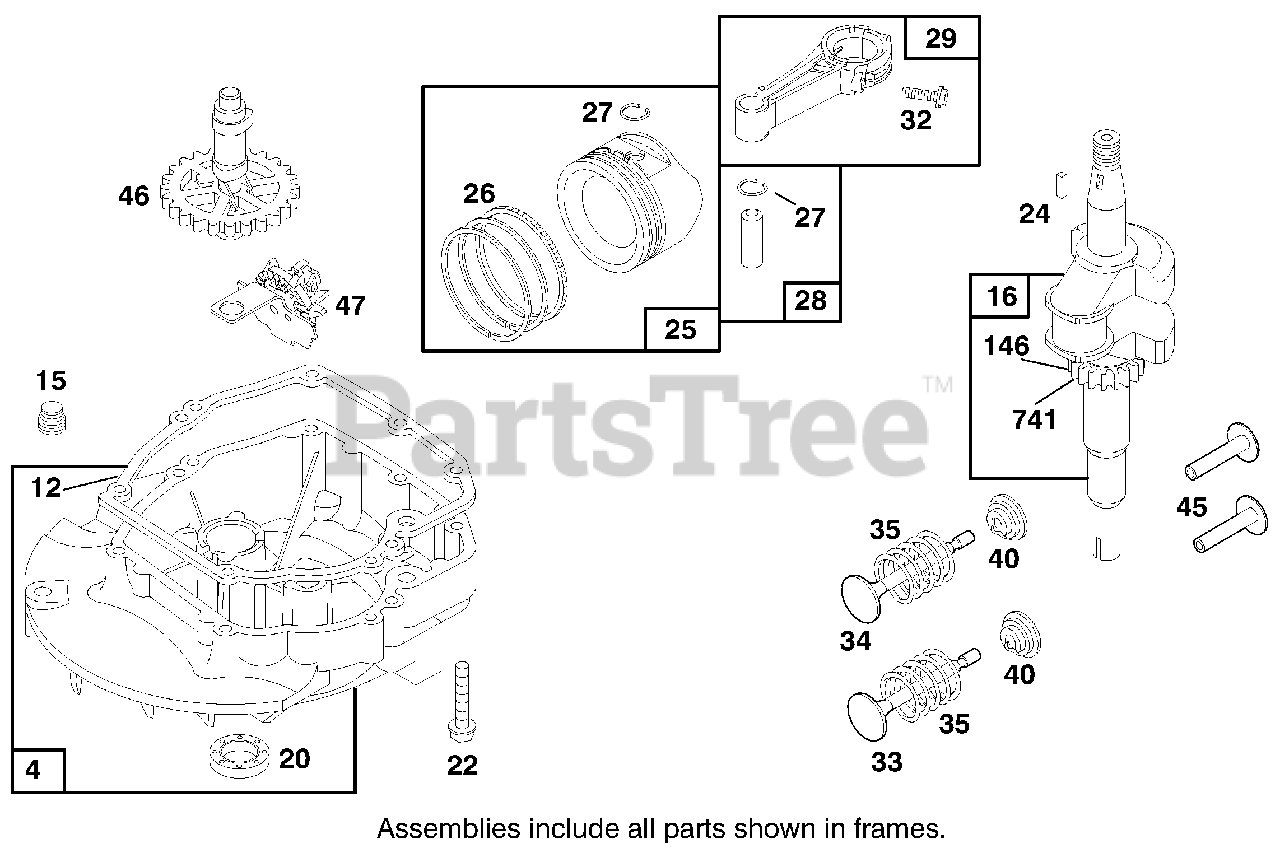

ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

  • Title

4

Lawn-Boy 493279

Sump-Engine

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

15

Lawn-Boy 94720

Plug-Oil Drain

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

16

Lawn-Boy 496809

Crankshaft

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

22

Lawn-Boy 94220

Screw-Hex. Head Note: 94612 Screw-Hex. Head (One Used in Hole Nearest Breather)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

24

Lawn-Boy 222698

Key-Flywheel

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

25

Lawn-Boy 493262

Piston Assy. (Standard)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493385

Piston Assy. (.010" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493386

Piston Assy. (.020" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493387

Piston Assy. (.030" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

26

Lawn-Boy 493261

Ring Set (Standard)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493388

Ring Set (.010" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493389

Ring Set (.020" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 493390

Ring Set (.030" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

27

Lawn-Boy 26026

Lock-Piston Pin

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

28

Lawn-Boy 298909

Pin-Piston (Standard)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

Lawn-Boy 298908

Pin-Piston (.005" O.S.)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

29

Lawn-Boy 490566

Rod Assembly-Connecting Note: For Connecting Rod With .020" Undersize Crankpin Bearing-Order No. 490743.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

32

Lawn-Boy 94699

Screw-Connecting Rod

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

33

Lawn-Boy 262651

Valve-Exhaust

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

34

Lawn-Boy 262652

Valve-Intake

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

35

Lawn-Boy 262224

Spring-Valve

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

40

Lawn-Boy 93312

Retainer-Valve Spring

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

45

Lawn-Boy 262204

Tappet-Valve

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

46

Lawn-Boy 498275

Gear-Cam

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

47

Lawn-Boy 493737

Slinger-Oil

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

146

Lawn-Boy 94388

Key-Timing
(Superseded to 690979)

Note: Obtain Parts From Briggs & Stratton

$3.49

$

In Stock, Qty 8

0

741

Lawn-Boy 262598

Gear-Timing

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
