10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

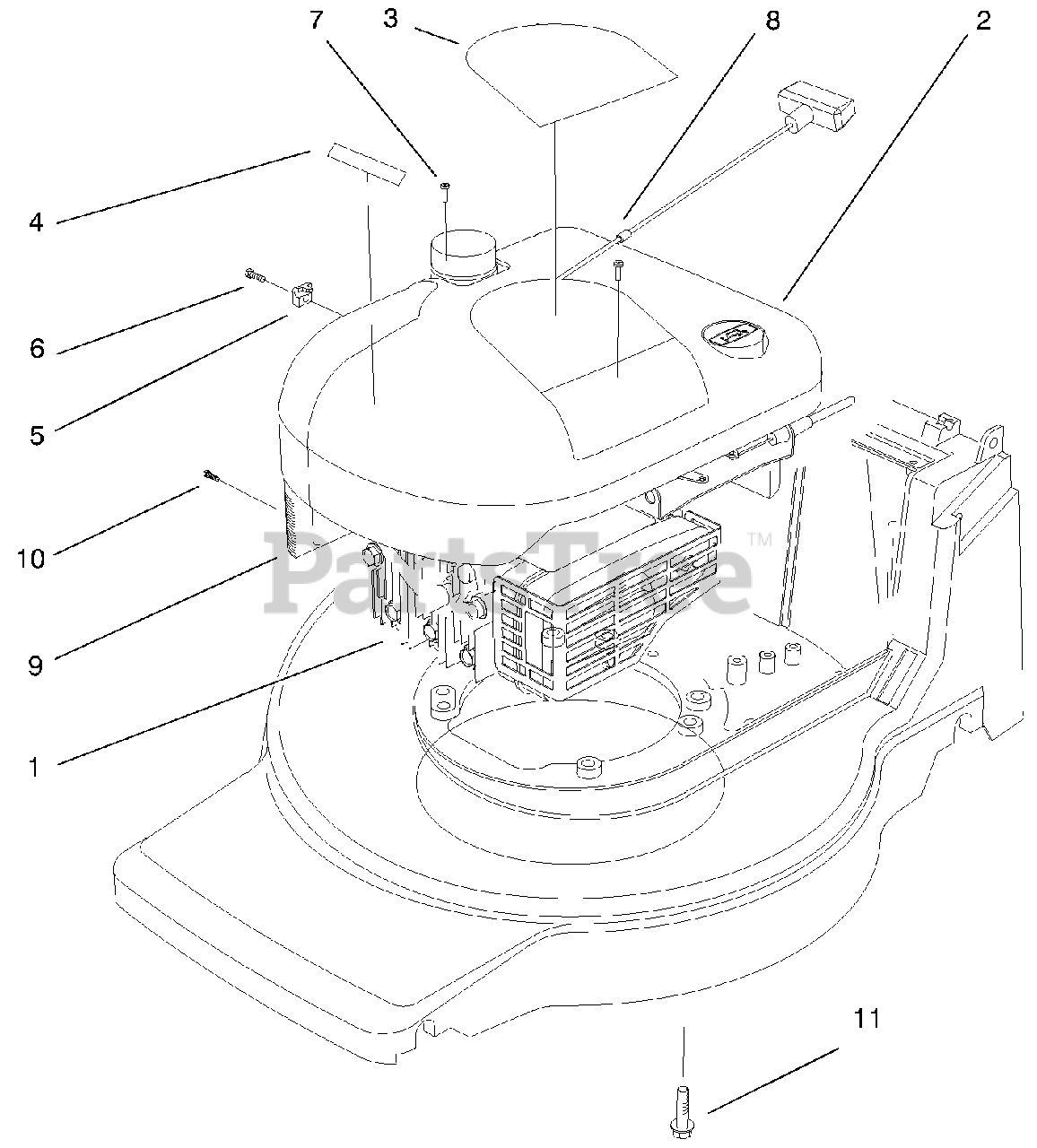

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Lawn-Boy 95-1704

Shroud-Engine
(Superseded to 95-1704-03)

$152.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 95-5910

Decal-Recoil

$

$

Not available

4

Lawn-Boy 95-0656

Applique-Shroud

$

$

Not available

5

Lawn-Boy 2210-249

Clamp-Casing

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 93-8470

Screw-Clamp

$

$

Not available

7

Lawn-Boy 92-7887

Screw-Mtg

$

$

Not available

8

Lawn-Boy 2210-316

Rope-Stop

$7.99

$

Usually ships in 3-6 days

0

$

$

Not available

10

Lawn-Boy 95-1707

Screw-Air Cleaner

$2.99

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0
