10910 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) HANDLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

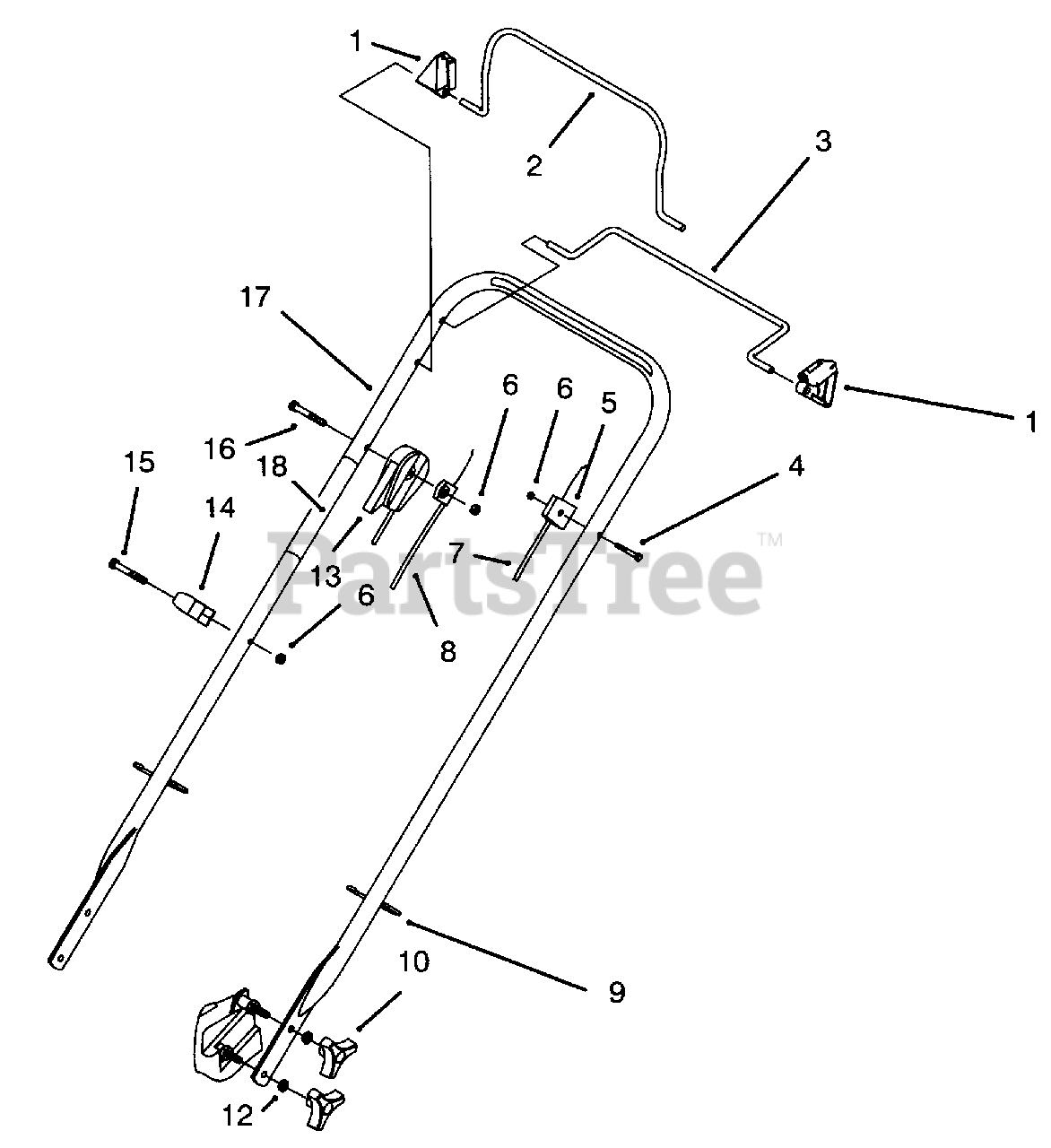

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

2

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

3

Lawn-Boy 92-1001

Bail-S.P. Control
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 321-48

Screw-Hex Hd. Screw

$1.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 92-7729

Anchor-Cable S.P. Upper

$4.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 92-9316

Cable-Traction

$89.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-9315

Cable-Flywheel Brake

$

$

Not available

9

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

10

Lawn-Boy 93-7159

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

13

Lawn-Boy 93-4379

Cable-Throttle

$

$

Not available

14

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

15

Lawn-Boy 321-53

Screw-Hex Hd. Cap
(Superseded to 33115-035)

$2.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 9

0

17

Lawn-Boy 92-8800

Handle

Note: Obtain From Toro Europe N.V.

$

$

Not available

18

Lawn-Boy 93-7266

Decal-Operation

$

$

Not available
