10910 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

48cm Walk-Behind Mower, Canada

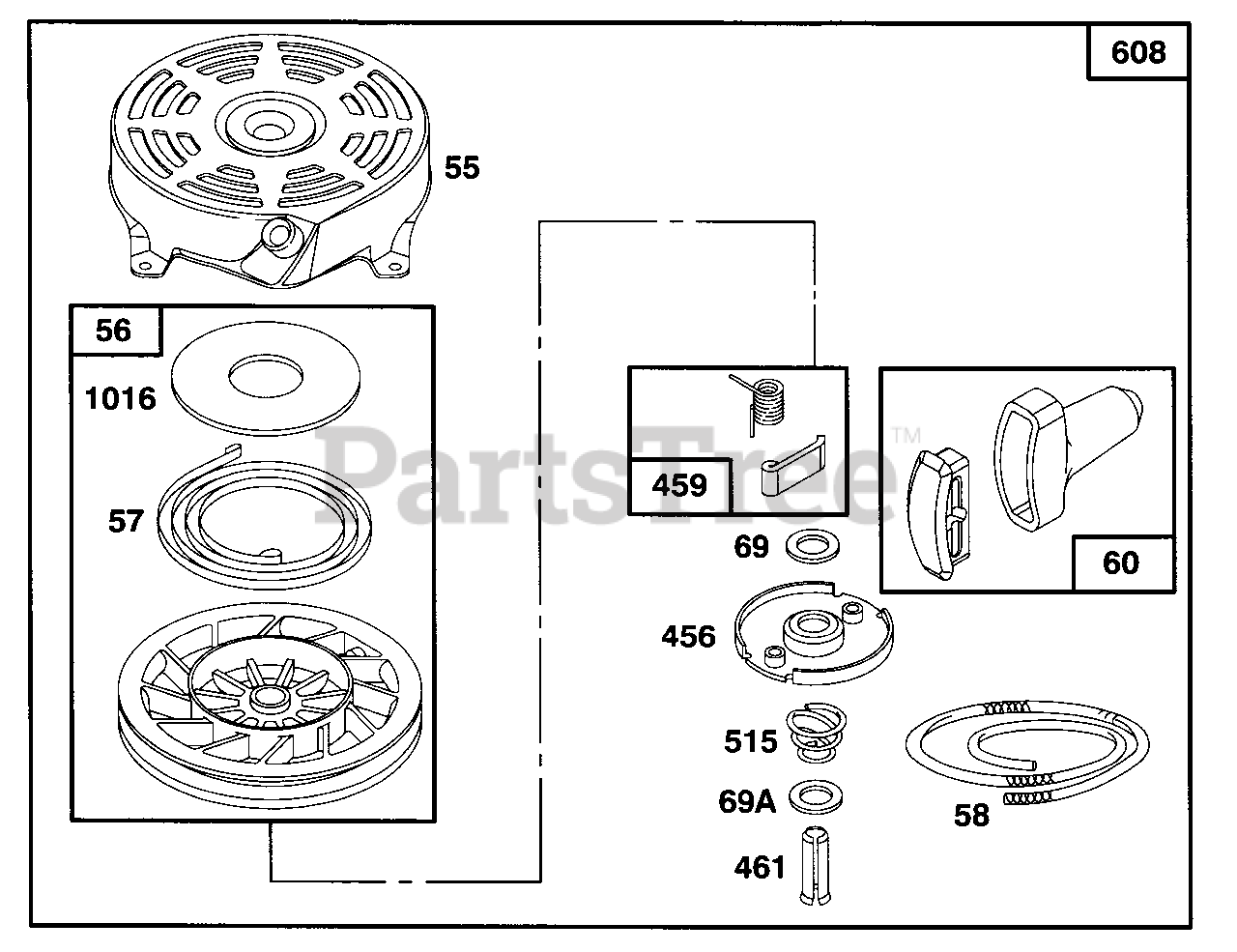

ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

  • Title
55

Lawn-Boy 492831

Housing-Rewind Starter

$

$

Currently unavailable

56

Lawn-Boy 493824

Pulley-Rewind Starter

$

$

Currently unavailable

57

Lawn-Boy 262594

Spring-Rewind Starter

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope-Rewind Starter

$

$

Currently unavailable

60

Lawn-Boy 393152

Handle-Rewind Starter

$

$

Currently unavailable

69

Lawn-Boy 280973

Washer-Rewind Starter

$

$

Currently unavailable

69A

Lawn-Boy 224322

Washer-Rewind Starter

$

$

Currently unavailable

456

Lawn-Boy 224321

Retainer-Rewind Starter

$

$

Currently unavailable

459

Lawn-Boy 492833

Pawl-Starter

$

$

Currently unavailable

461

Lawn-Boy 262626

Pin-Starter

$

$

Currently unavailable

515

Lawn-Boy 262625

Spring-Torsion

$

$

Currently unavailable

608

Lawn-Boy 493295

Starter Assy.-Rewind Includes: 94128 Screw - Hex. Head 92987 Nut - Hex.

$

$

Currently unavailable

625

Lawn-Boy 281085

Tube-Fuel Intake

$

$

Currently unavailable

1016

Lawn-Boy 224278

Cover-Rewind Starter

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable
