10910 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

48cm Walk-Behind Mower, Canada

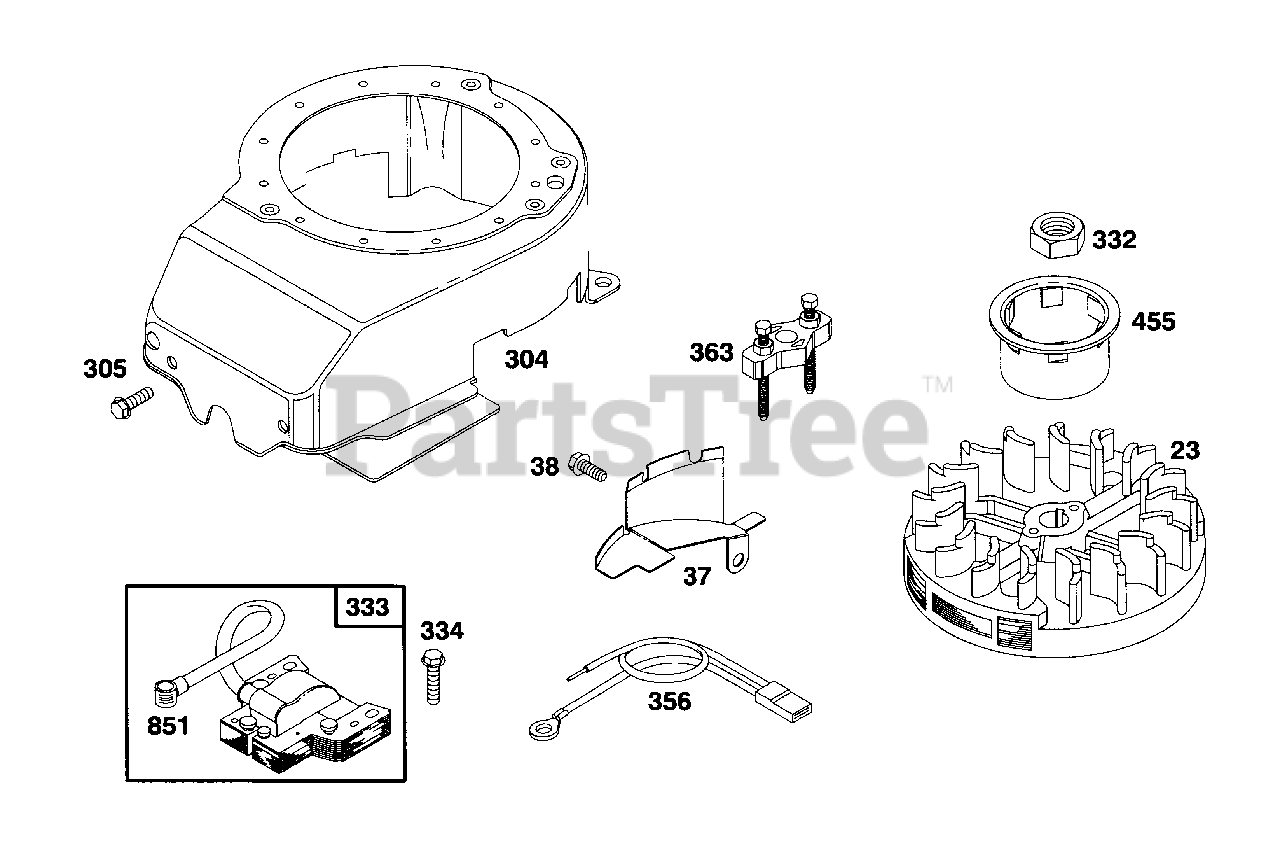

ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

  • Title
23

Lawn-Boy 492177

Flywheel

$

$

Currently unavailable

37

Lawn-Boy 224511

Guard-Flywheel

$

$

Currently unavailable

38

Lawn-Boy 94608

Screw-Hex. Hd.

$

$

Currently unavailable

304

Lawn-Boy 493293

Housing-Blower

$

$

Currently unavailable

305

Lawn-Boy 94786

Screw-Sem

$

$

Currently unavailable

332

Lawn-Boy 92284

Nut-Flywheel

$

$

Currently unavailable

333

Lawn-Boy 802574

Armature-Magneto

$

$

Currently unavailable

334

Lawn-Boy 94731

Screw-Sem

$

$

Currently unavailable

356

Lawn-Boy 398808

Wire-Ground

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

$

$

Currently unavailable

455

Lawn-Boy 224250

Cup-Starter

$

$

Currently unavailable

851

Lawn-Boy 221798

Terminal-Ignition Cable

$

$

Currently unavailable
