10905 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

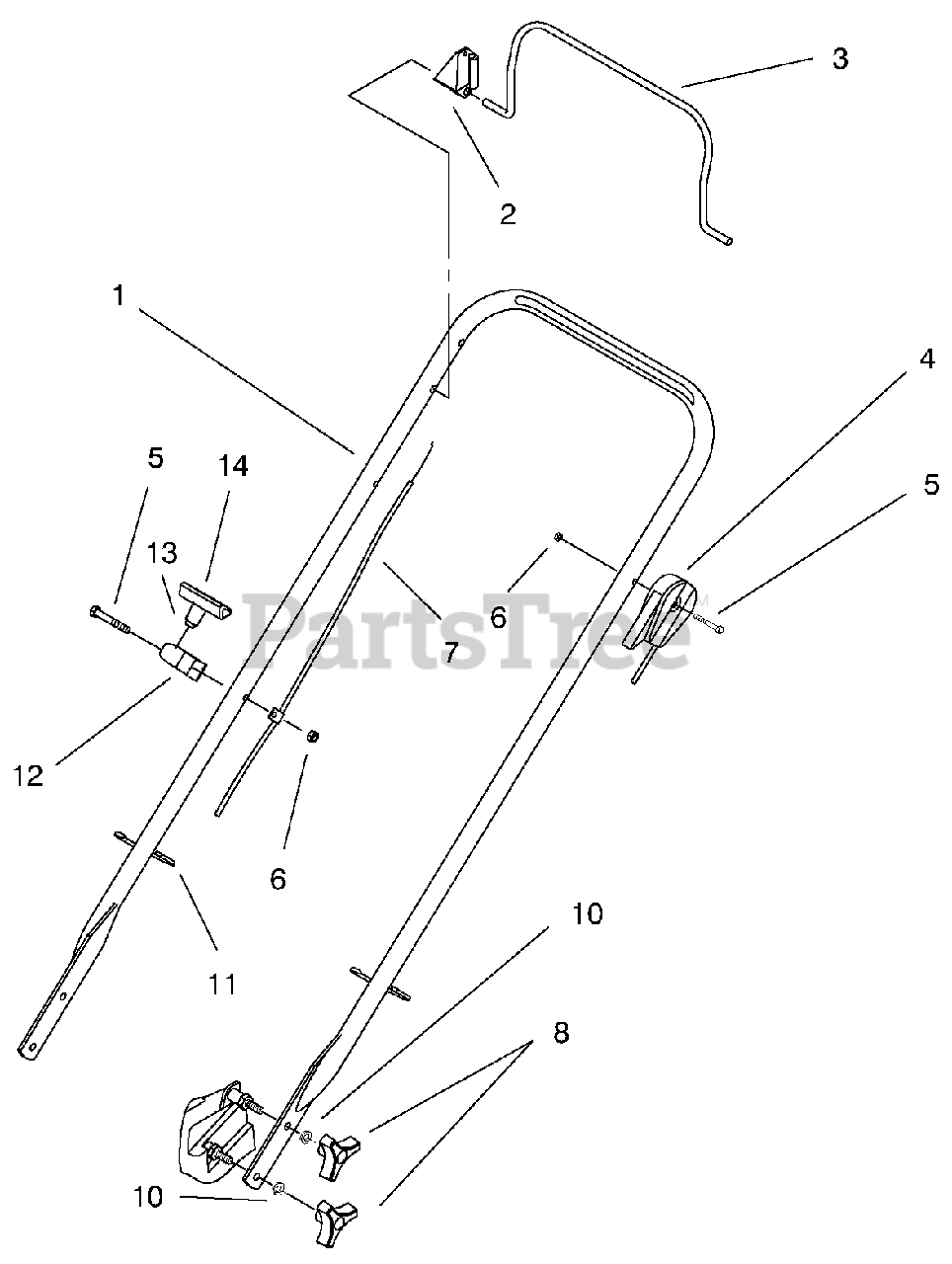

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

4

Lawn-Boy 92-9327

Cable-Throttle

$

$

Not available

5

Lawn-Boy 321-53

Screw-Hex Hd. Cap
(Superseded to 33115-035)

$2.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 9

0

7

Lawn-Boy 92-9328

Cable-Brake

$

$

Not available

8

Lawn-Boy 93-7159

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

11

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

12

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0
