10905 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

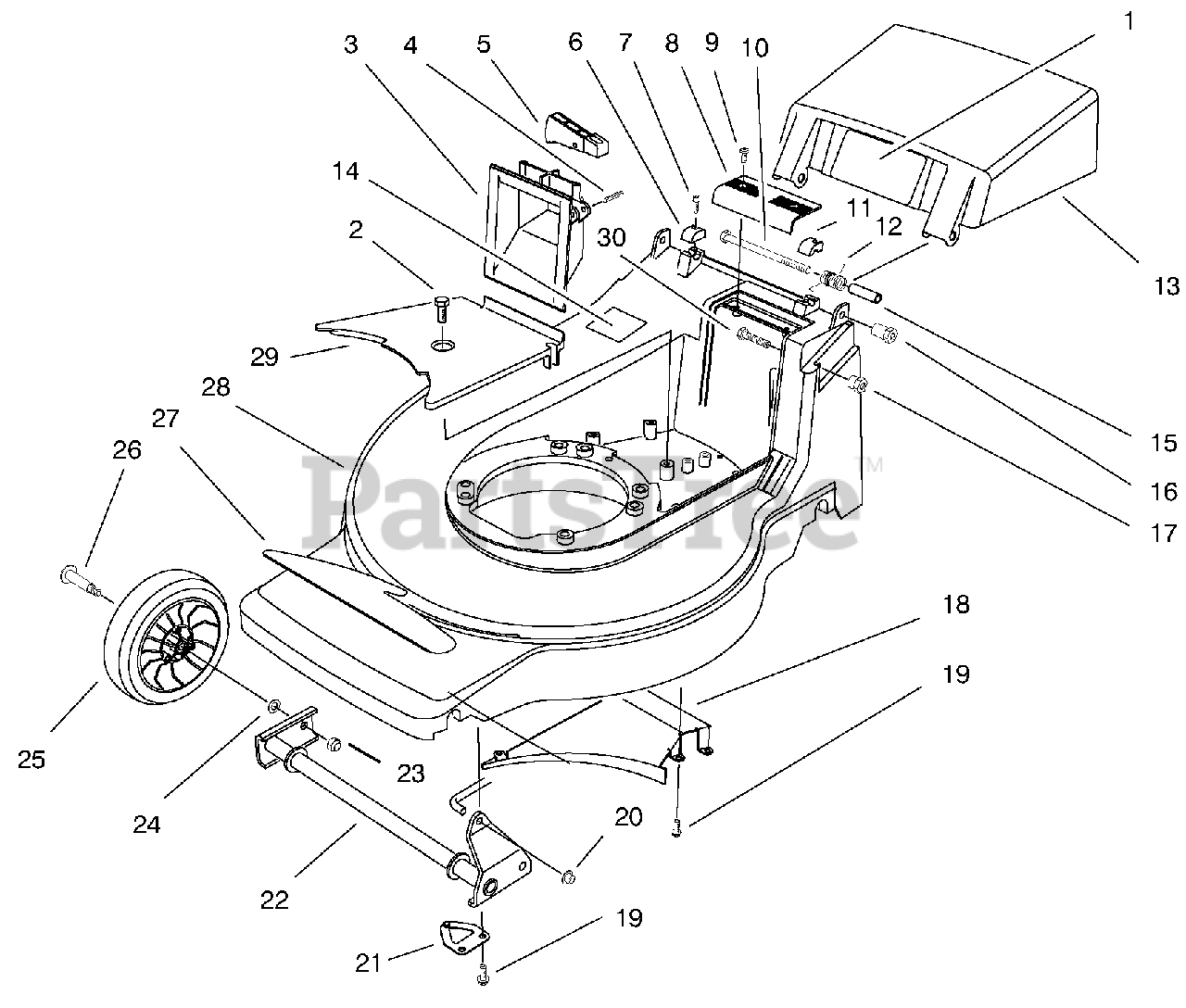

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 71-7870

GRIP - LOWER

$

$

Not available

4

Lawn-Boy 3284-5

PIN-SPIRAL

$

$

Not available

5

Lawn-Boy 71-7930

TRIGGER - HOC

$9.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 71-7910

CAP-HINGE BOLT, RH

$4.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 71-7860

GRIP-UPPER

$

$

Not available

9

Lawn-Boy 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

10

Lawn-Boy 92-8806

5/16-18 X 4 CAPSCREW

$

$

Not available

11

Lawn-Boy 71-7900

CAP-HINGE BOLT, LH

$4.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 71-9840

SPRING-DOOR

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 71-9800

Door Discharge
(Superseded to 17-1569)

$102.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 66-1700

Decal-Noise

$

$

Not available

15

Lawn-Boy 92-9313

DOOR SPACER

$

$

Not available

16

Lawn-Boy 93-7161

48CM HANDLE SPACER

$

$

Not available

17

Lawn-Boy 93-7162

48CM HANDLE SPACER

$

$

Not available

18

Lawn-Boy 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

19

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 71-8830

SHAFT RETAINER ASM

$7.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 92-9304

PIVOT - FRONT WA

$

$

Not available

23

Lawn-Boy 92-8819

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

24

$2.99

$

In Stock, Qty 18

0

25

Lawn-Boy 92-8810

WHL & TIRE ASM 7"

$

$

Not available

26

Lawn-Boy 92-8811

WHEEL BOLT

$

$

Not available

27

Lawn-Boy 92-8836

DECAL - DECK 450VP

$

$

Not available

28

Lawn-Boy 16-8889

Housing (Incl. Ref. #1)

$

$

Not available

29

Lawn-Boy 71-7920

BELT COVER

$

$

Not available

30

Lawn-Boy 92-8818

5/16-18X1.50 HEX CAPSRW

$8.49

$

Usually ships in 3-6 days

0
