10905 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) CARBURETOR ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

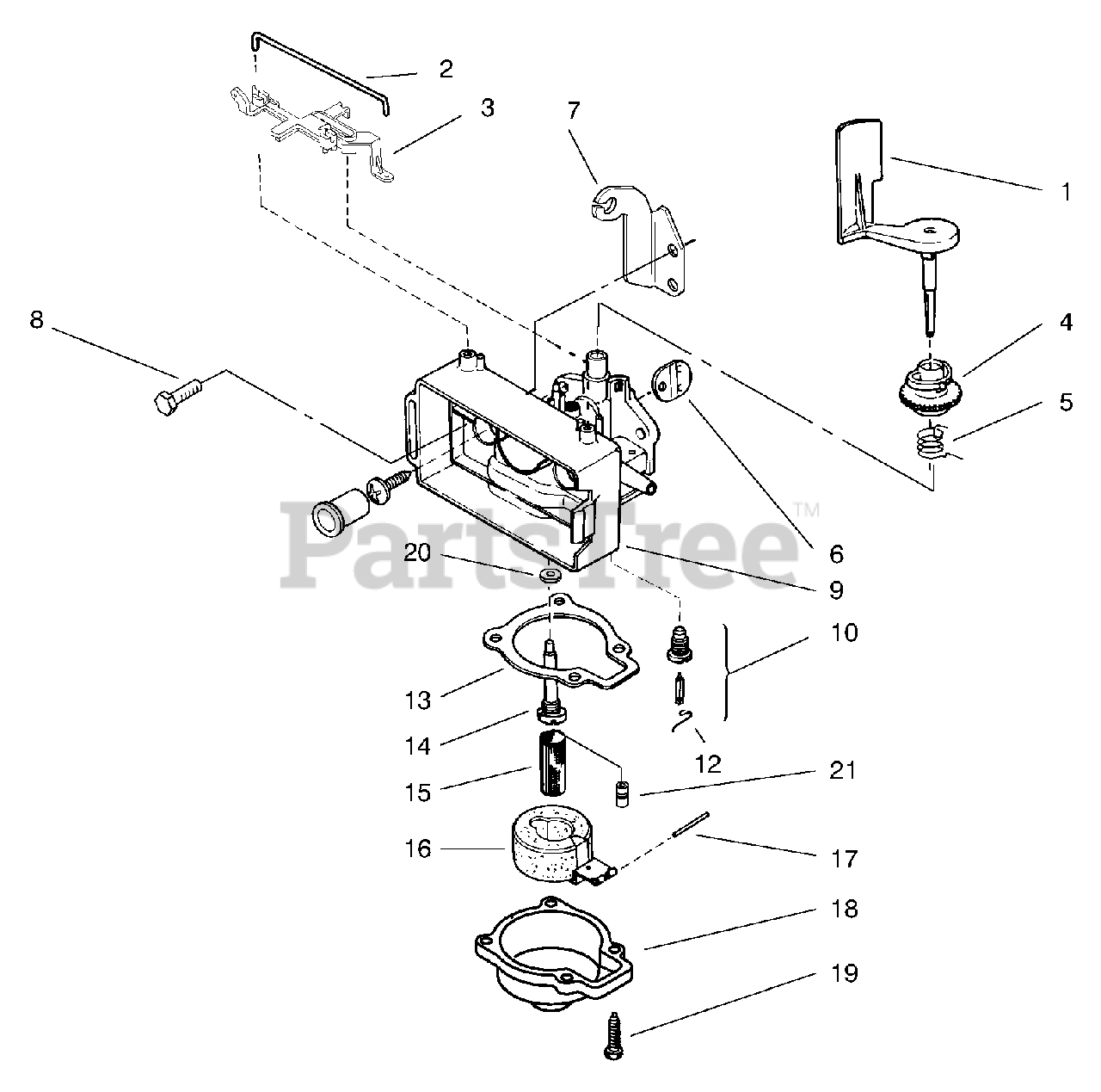

CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-6376

Air Vane&shaft
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 15

0

2

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 14

0

3

Lawn-Boy 93-1225

LEVER-ADJ. VF

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

$4.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-4944

SPRING-GOV V

$10.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 92-6373

DISC-THRO. V

$5.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-4949

BRKT-THRO.CONT V

$

$

Not available

8

Lawn-Boy 613269

SCREW V

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 93-4324

CARB. BODY V

$

$

Not available

10

Lawn-Boy 92-9697

Kit-Float Valve, Body & Seat (Incl. Ref. #12)

$27.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-6371

NOZZLE VF

$

$

Not available

15

Lawn-Boy 611071

FILTER-FUEL VS

$18.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 678113

FLOAT & ARM ASM

$

$

Not available

17

Lawn-Boy 92-6389

PIN-STRAIGHT

$5.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 92-9691

CHAMBER-FLOAT

$42.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 608850

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

20

$1.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 92-6370

JET-MAIN VF

$15.99

$

In Stock, only 1 left!

0

Lawn-Boy 92-6385

MAINJET

Note: Not illustrated

$

$

Not available

Lawn-Boy 93-4330

Carburetor Assembly (Incl. Ref. #7 pg.6)
(Superseded to 93-4331)

Note: Not illustrated

$278.99

$

In Stock, only 2 left!

0
