10905 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) BLOCK ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

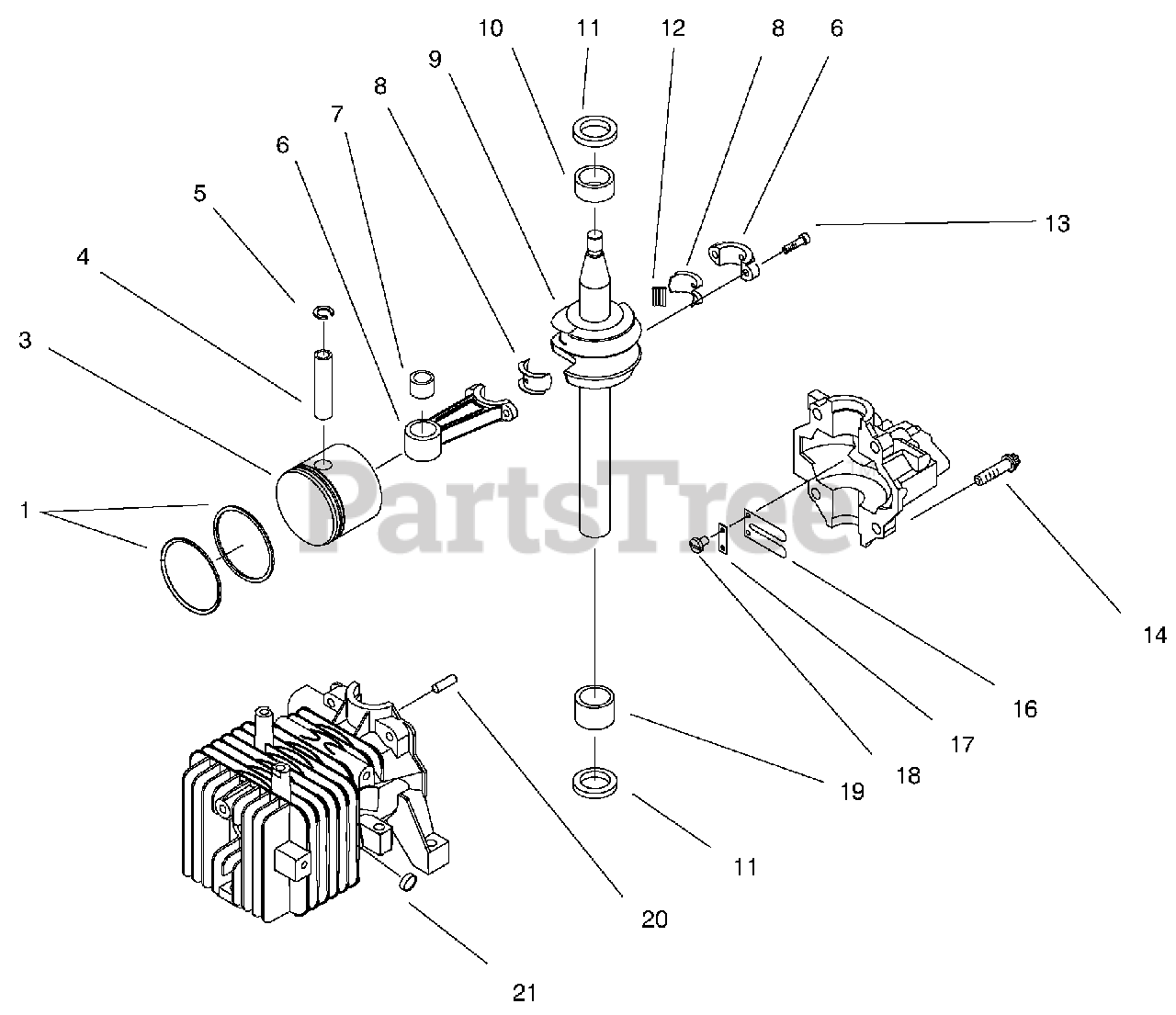

BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 681737

F-RING SET

$

$

Not available

3

Lawn-Boy 92-4925

Piston & Connecting Rod (Incl. Ref. #1, 3-7 & 13)

$

$

Not available

4

Lawn-Boy 606608

PIN-WRIST VF
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 303712

RING-RETAINING

$2.99

$

In Stock, Qty 11

0

6

Lawn-Boy 92-4921

Connecting Rod Assembly (Incl. Ref. #8, 12 & 13)

$206.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 92-4927

BEARING XEV

$33.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 677982

LINER ASM

$40.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 92-6379

Crankshaft
(Superseded to 94-5733)

$266.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 681830

BEARING V

$35.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611396

SEAL-OIL

$5.99

$

In Stock, Qty 10

0

12

Lawn-Boy 609754

Roller Strip
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

13

Lawn-Boy 611393

SCREW-HSH

$19.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 614636

SCREW-HWH V

$

$

Not available

16

Lawn-Boy 602588

REED-CARBURETOR

$

$

Not available

17

Lawn-Boy 602587

PLATE-BACKUP, REED

$2.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

19

Lawn-Boy 681831

BEARING V

$23.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 609629

DOWEL XEV

$

$

Not available

21

Lawn-Boy 609123

PLUG-CORE VF

$2.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684725

Cylinder & Crankcase Asm.
(Superseded to 94-5737)

Note: Not illustrated

$

$

Not available
