10900 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

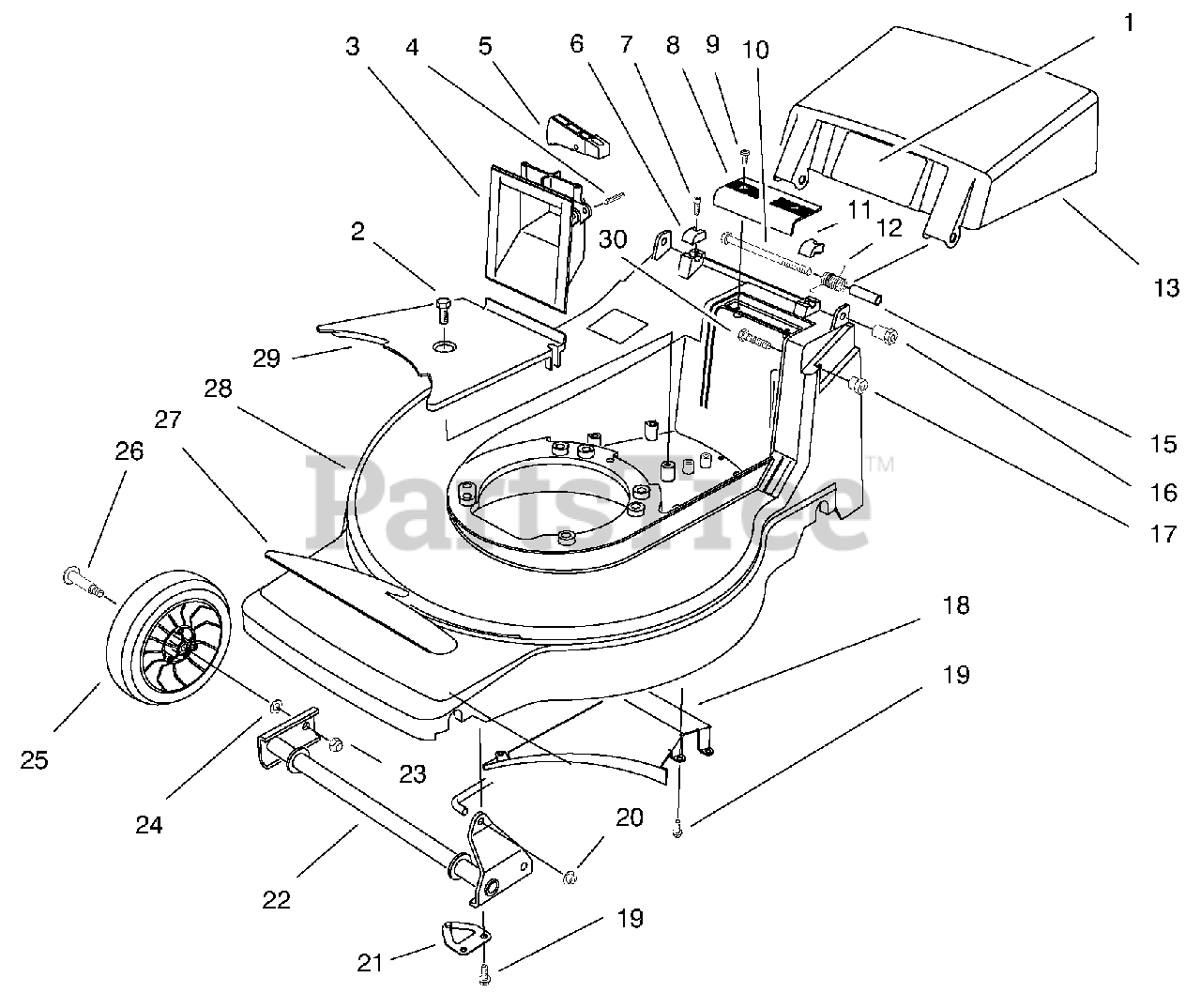

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 71-7870

Grip-Lower

$

$

Not available

4

Lawn-Boy 3284-5

Pin-Groove

$

$

Not available

5

Lawn-Boy 71-7930

Trigger-HOC

$

$

Not available

6

Lawn-Boy 71-7910

Cap-R.H. Hinge Bolt

$5.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 65-5210

Screw-Thread Forming

$

$

Not available

8

Lawn-Boy 71-7860

Grip-Upper

$

$

Not available

9

Lawn-Boy 32144-97

Screw-Pan Hd. Phillips

$0.99

$

In Stock, Qty 11

0

10

Lawn-Boy 92-8806

Screw-Hex Hd. Cap

$

$

Not available

11

Lawn-Boy 71-7900

Cap-L.H. Hinge Bolt

$5.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 71-9840

Spring-Door

$14.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 17-1569

Door-Discharge (Incl. Ref. # 1)

$118.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-9313

Spacer-Door

$

$

Not available

16

Lawn-Boy 93-7161

Spacer-Handle

$

$

Not available

17

Lawn-Boy 93-7162

Spacer-Handle

$

$

Not available

18

Lawn-Boy 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

19

Lawn-Boy 32144-4

Screw-Tapping

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 32112-1

Nut-Push

$6.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 71-8830

Retainer-Shaft

$

$

Not available

22

Lawn-Boy 92-9304

Pivot-Front

$

$

Not available

23

Lawn-Boy 92-8819

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

24

$2.99

$

In Stock, Qty 18

0

25

Lawn-Boy 92-8810

Wheel & Tire Assembly

$

$

Not available

26

Lawn-Boy 92-8811

Bolt-Wheel

$

$

Not available

27

Lawn-Boy 92-8834

Decal-Deck 400XP

$

$

Not available

28

Lawn-Boy 16-8889

Housing (Incl. Ref. #27)

$

$

Not available

29

Lawn-Boy 71-7920

Cover-Belt

$

$

Not available

30

Lawn-Boy 92-8818

Screw-Hex Hd. Cap

$

$

Not available
