10900 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

48cm Walk-Behind Mower, Canada

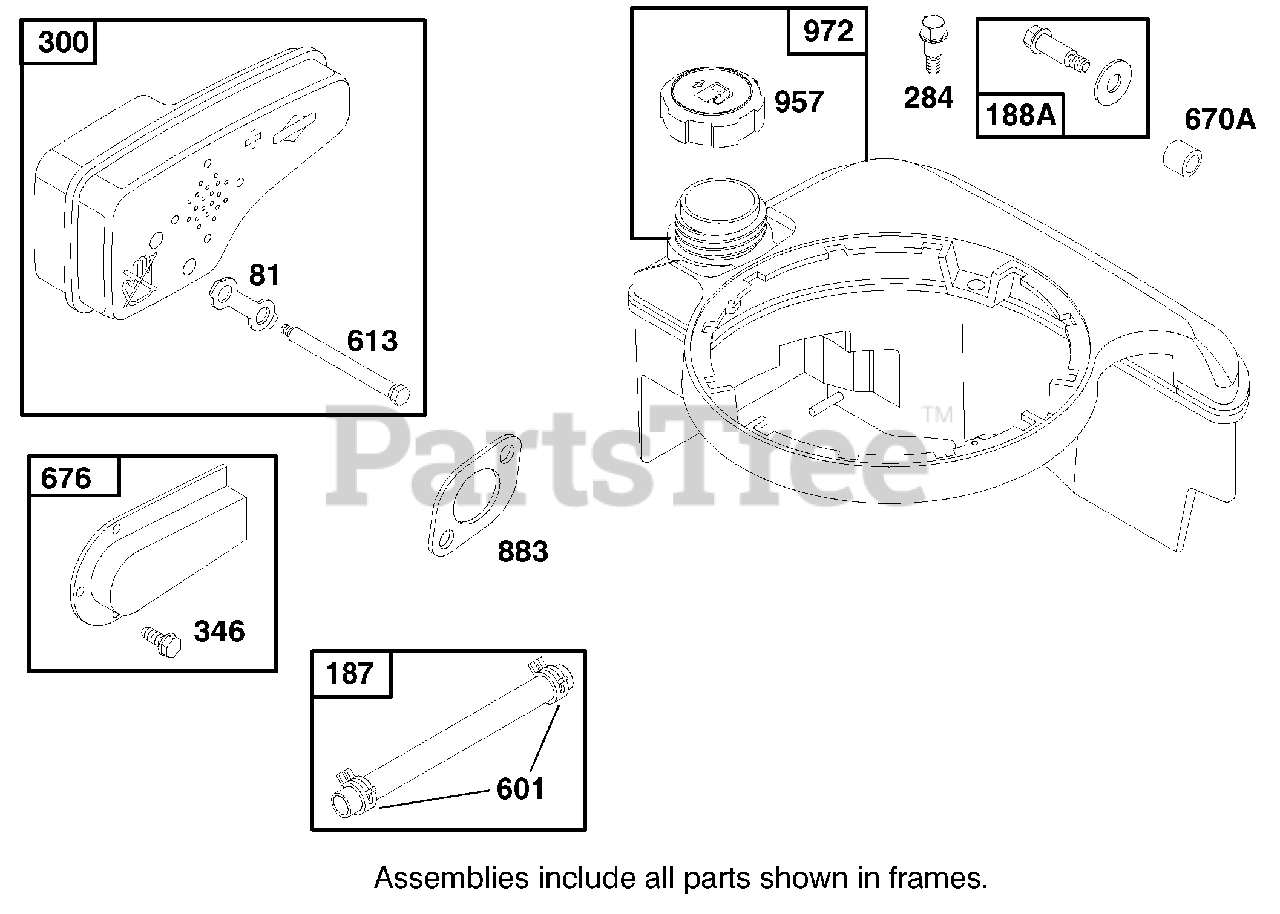

ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

  • Title

81

Lawn-Boy 223664

Lock-Muffler Screw

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

187

Lawn-Boy 492790

Hose-Fuel

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

188A

Lawn-Boy 398540

Screw-Tank Mounting

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Shoulder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

300

Lawn-Boy 496106

Muffler-Exhaust

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

346

Lawn-Boy 94896

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

601

Lawn-Boy 93053

Clamp-Hose

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

613

Lawn-Boy 94231

Screw-Shoulder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

670A

Lawn-Boy 280512

Spacer-Fuel Tank

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

676

Lawn-Boy 493871

Deflector-Muffler

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

883

Lawn-Boy 272253

Gasket-Exhaust

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

957

Lawn-Boy 397974

Cap Assy.-Fuel

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

972

Lawn-Boy 495224

Tank Assembly-Fuel

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
