10900 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

48cm Walk-Behind Mower, Canada

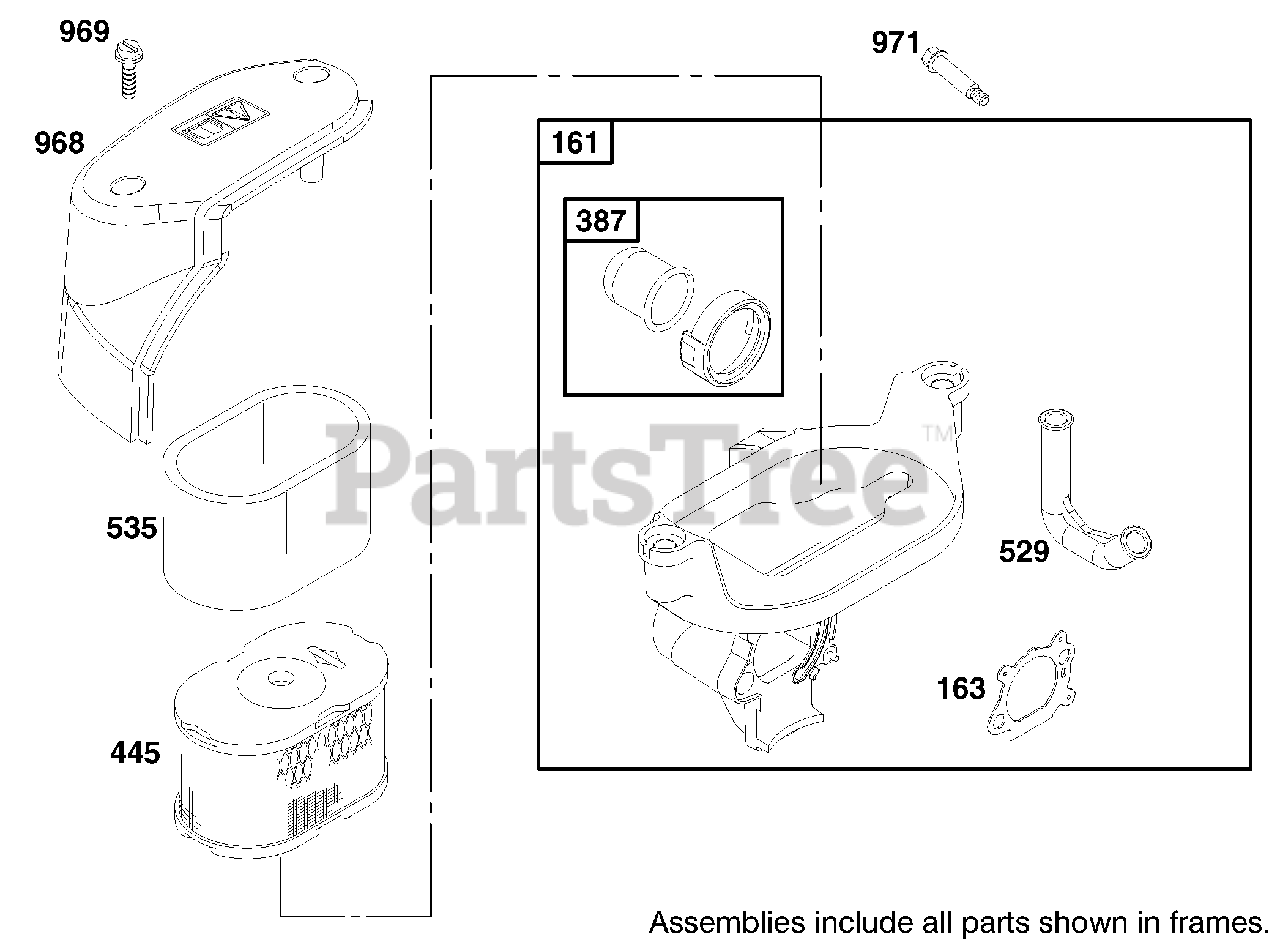

ENGINE BRIGGS & STRATTON MODEL 12U802-0633-01 Parts Diagram

  • Title
161

Lawn-Boy 497915

Base-Air Cleaner

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

387

Lawn-Boy 496115

Primer-Carburetor

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

445

Lawn-Boy 497725

Filter-Air

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

529

Lawn-Boy 281556

Grommet-Breather

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

535

Lawn-Boy 273185

Filter-Air

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

968

Lawn-Boy 281535

Cover-Air Cleaner

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

969

Lawn-Boy 94777

Screw-Cover Mtg.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

971

Lawn-Boy 94655

Screw-Air Cleaner

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
