10900 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 12E802-1114-01 Parts Diagram

48cm Walk-Behind Mower, Canada

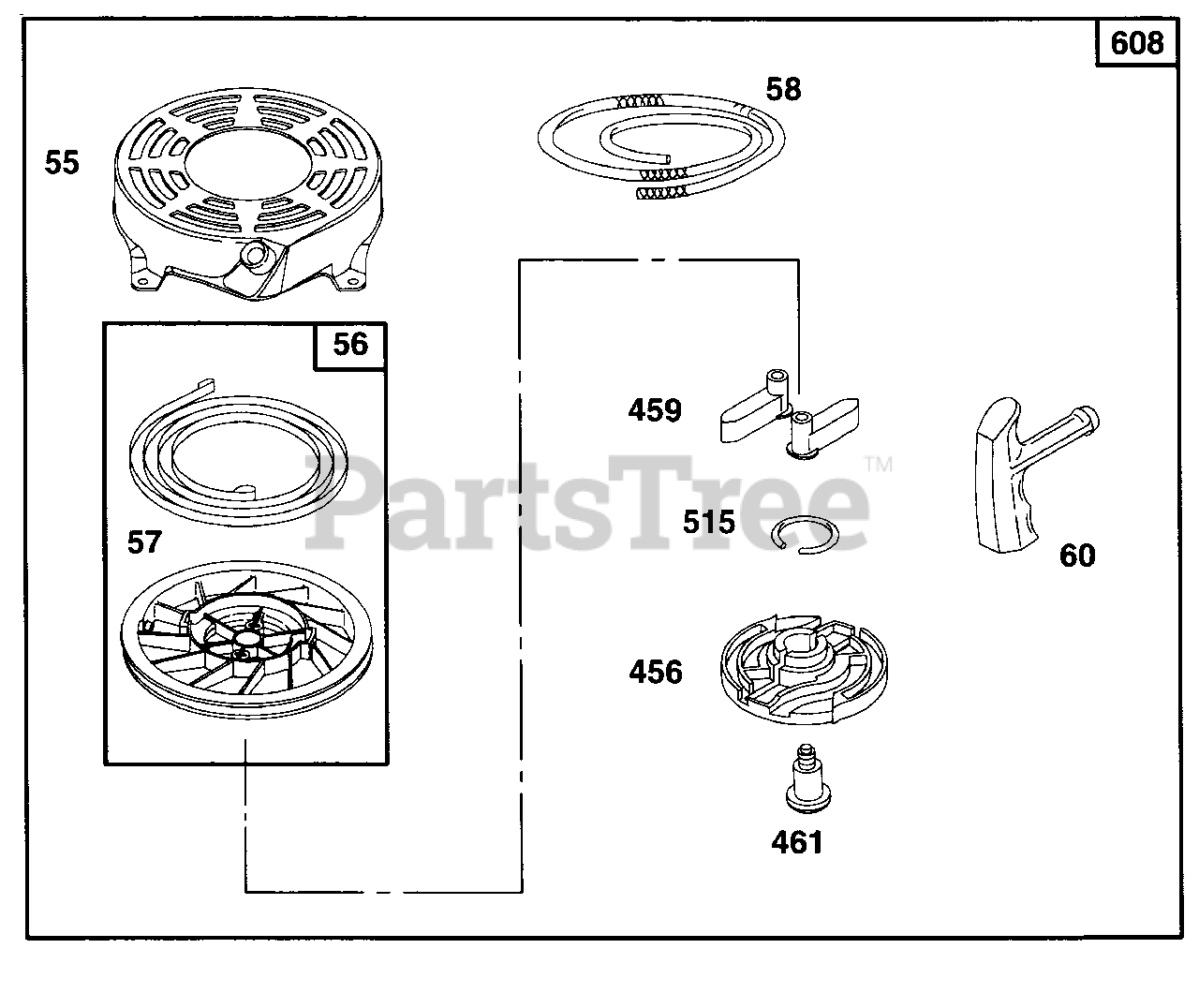

ENGINE BRIGGS & STRATTON MODEL 12E802-1114-01 Parts Diagram

  • Title
55

Lawn-Boy 497440

Housing-Rewind Starter

$

$

Currently unavailable

56

Lawn-Boy 498144

Pulley-Rewind Starter

$

$

Currently unavailable

57

Lawn-Boy 263074

Spring-Rewind Starter

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope-Rewind Starter

$

$

Currently unavailable

60

Lawn-Boy 281434

Handle-Rewind Starter

$

$

Currently unavailable

456

Lawn-Boy 281503

Retainer-Rewind Starter

$

$

Currently unavailable

459

Lawn-Boy 281505

Pawl-Starter

$

$

Currently unavailable

461

Lawn-Boy 94943

Screw-Shoulder

$

$

Currently unavailable

515

Lawn-Boy 263073

Spring-Torsion

$

$

Currently unavailable

608

Lawn-Boy 497680

Starter Assembly-Rewind Includes:

$

$

Currently unavailable

Lawn-Boy 94904

Screw-Hex. Hd.

$

$

Currently unavailable

Lawn-Boy 94908

Nut-Hex.

$

$

Currently unavailable
