10900 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

48cm Walk-Behind Mower, Canada

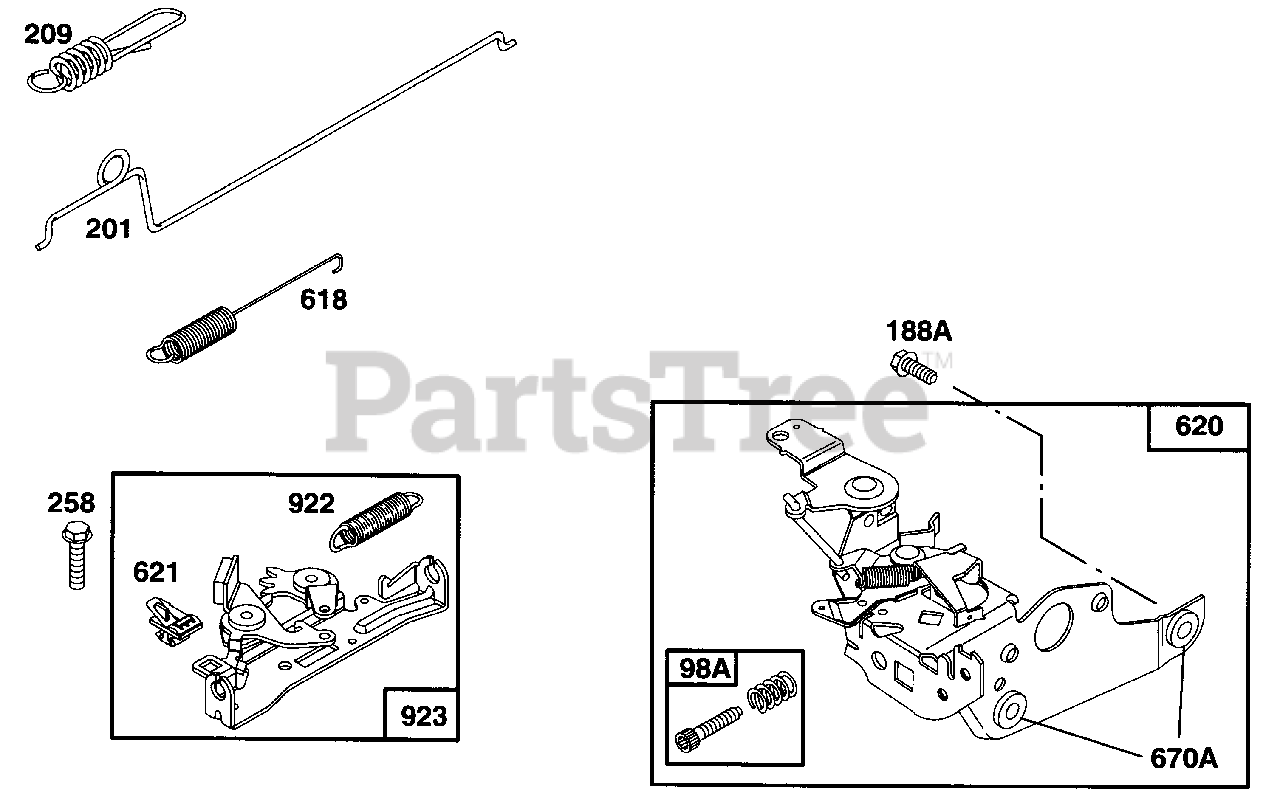

ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

  • Title
98A

Lawn-Boy 493280

Screw-Speed Adjust

$

$

Currently unavailable

188A

Lawn-Boy 94644

Screw-Hex. Head

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 262662

Spring-Governor

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

618

Lawn-Boy 262749

Spring-Return

$

$

Currently unavailable

620

Lawn-Boy 495975

Bracket Carburetor

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Bracket

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

$

$

Currently unavailable
