10900 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 005900001 - 005999999) (1995) BLADE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

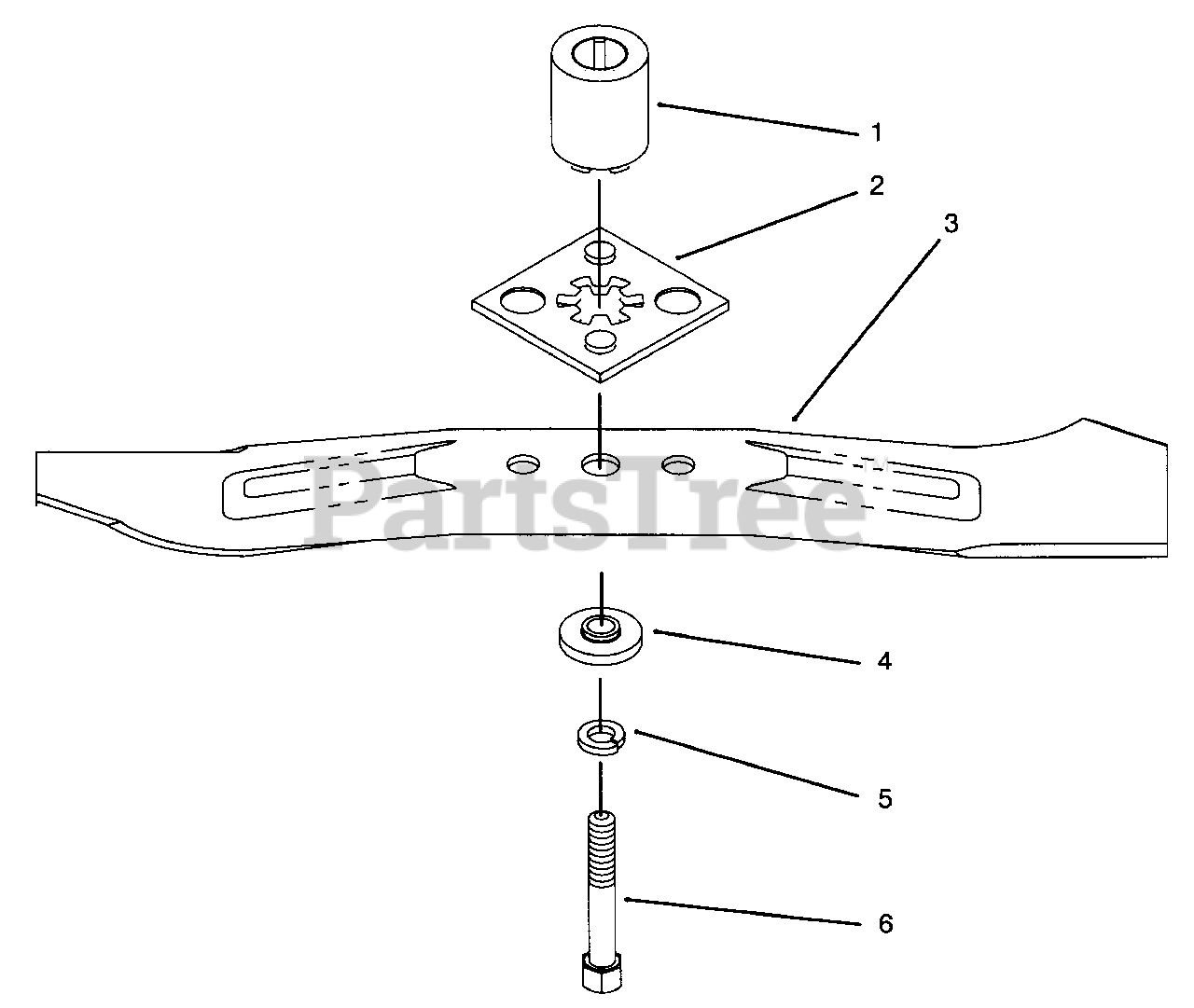

BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-8807

Hub-Blade Driver

$

$

Not available

2

Lawn-Boy 146046

Plate-Blade Driver

$

$

Not available

3

Lawn-Boy 612079

Blade-48cm
(Superseded to 612079-03)

$38.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 92-8626

Spacer-Blade

$15.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 26-0670

Bolt-Blade

$

$

Not available
