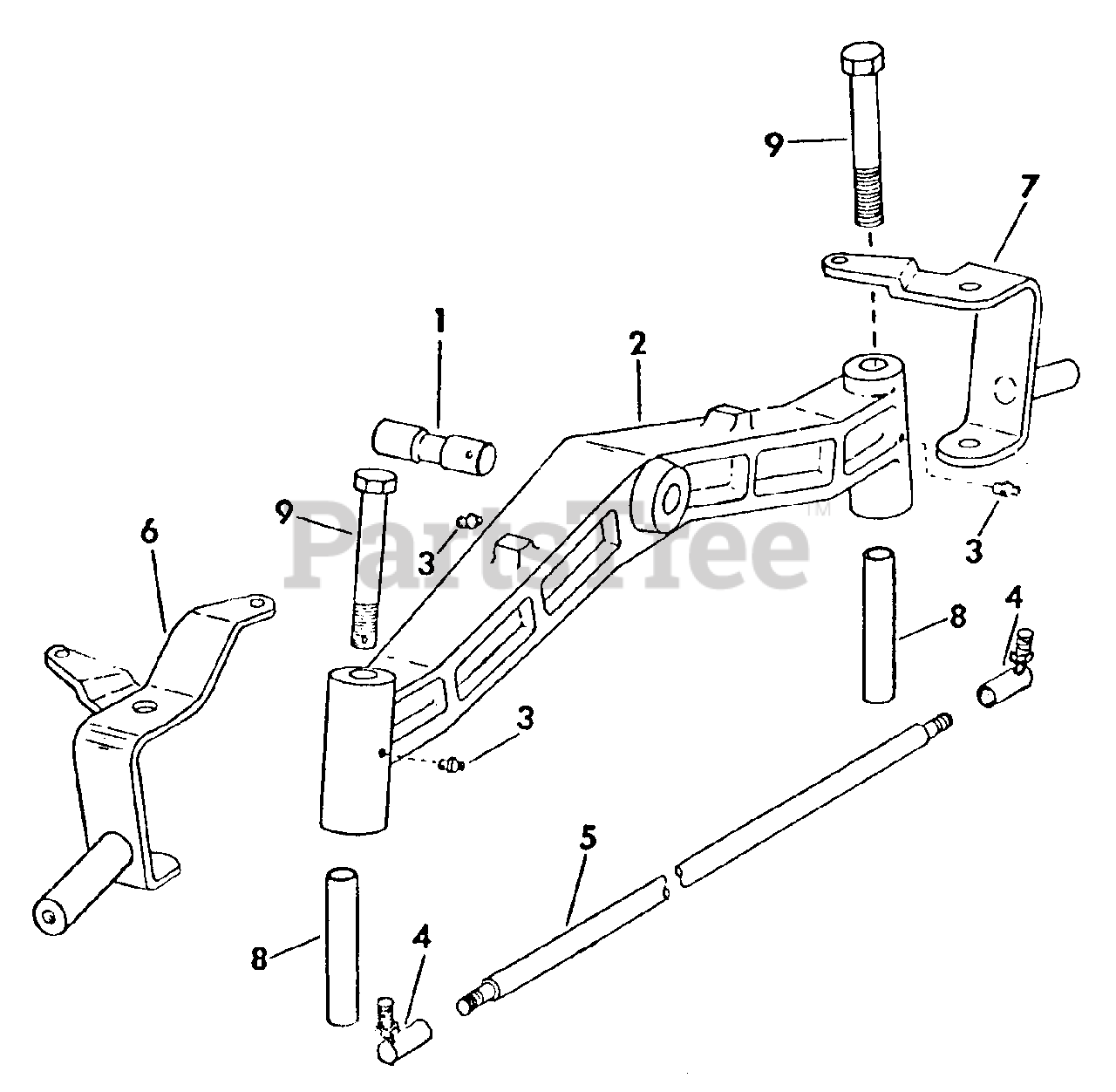

109 (2050211U) - Cub Cadet Garden Tractor Front Axle & Connections Parts Diagram

Garden Tractor

Front Axle & Connections Parts Diagram

  • Title

1

Cub Cadet IH-384626-R3

Pin, Front Axle Pivot
(Superseded to IH-384626-R4)

$

$

Not available

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

2

Cub Cadet 759-3270

Axle, Front

Variations

Cub Cadet 759-3270-0637

FRONT AXLE - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 737-3000

Fitting, 3/16 Drive Type Str Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 723-3000

Joint Assy, Ball
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 12

0

Cub Cadet 712-3002

Nut, 3/8-24 C-Z Slt Hex
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

Cub Cadet 714-0507

Pin, 3/32 X 3/4 C-Z Cot

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 711-3018

Rod, Tie

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

6

Cub Cadet IH-544212-R1

Knuckle Assy, Steering LH

$

$

Not available

Cub Cadet IH-24839-R1

Screw, 3/8-16 X 3/4 Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Washer, 13/32 X 1-1/2 X 11 Ga

Note: (Common Hardware, Purchase Locally)

$

$

Not available

7

Cub Cadet IH-544217-R1

Knuckle Assy, Steering RH

$379.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-24839-R1

Screw, 3/8-16 X 3/4 Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Washer, 13/32 X 1-1/2 X 11 Ga

Note: (Common Hardware, Purchase Locally)

$

$

Not available

8

Cub Cadet 750-3002

Spacer, Steering Knuckle
(Superseded to 950-3002)

$

$

Not available

9

Cub Cadet 710-3020

Bolt, Steering Knuckle

$

$

Not available

Cub Cadet 712-3012

Nut, 1/2-20 Znd Thick Slt
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

Pin, 3/32 X 1 C-Z Cot

Note: (Common Hardware, Purchase Locally)

$

$

Not available
