109 (2050044U) - Cub Cadet Garden Tractor Rear Axle Parts Diagram

Garden Tractor

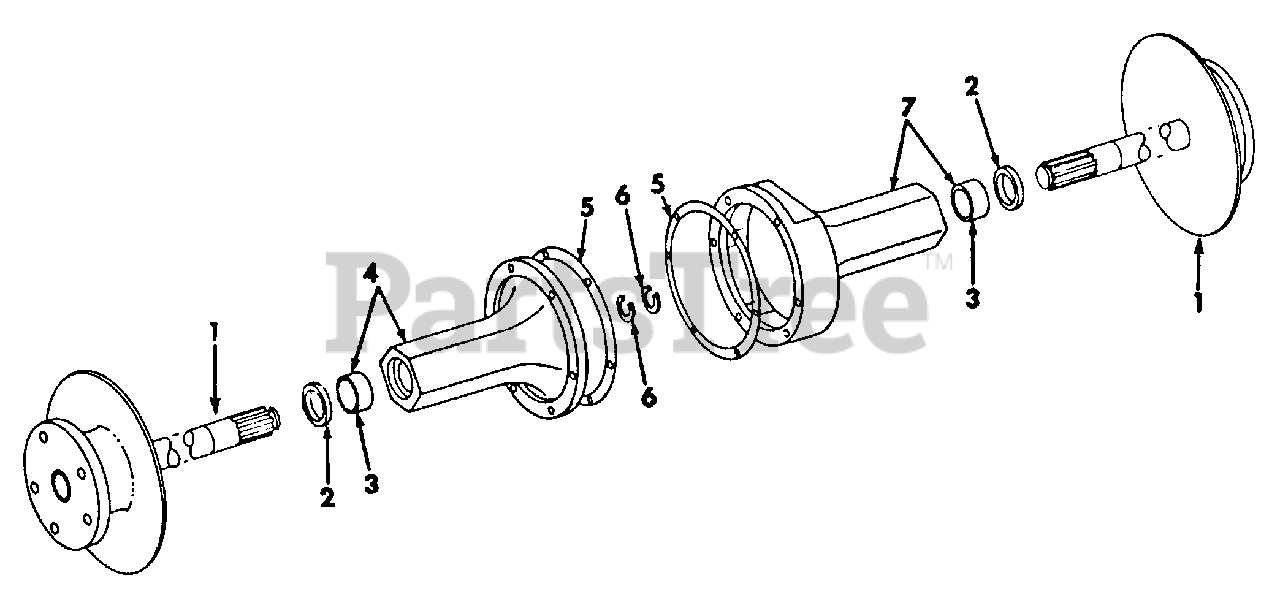

Rear Axle Parts Diagram

  • Title

1

Cub Cadet IH-531180-R2

Axle Assy, Rear

$

$

Not available

2

Cub Cadet 721-0187

Seal, Oil
(Superseded to 921-0187)

$

$

Not available

3

Cub Cadet 741-0363

Bearing, Needle
(Superseded to 941-0363)

$25.99

$

In Stock, Qty 10

0

4

Cub Cadet IH-397322-R11

Carrier Assy, Rear Axle LH

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet 721-3014

Gasket, Carrier
(Superseded to 721P3014)

$13.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-378066-R1

Ring, Retaining

$

$

Not available

7

Cub Cadet 703-0906

Carrier Assy, Rear Axle RH

$

$

Not available

Cub Cadet 710-3011

Screw, 3/8-16 X 2-1/4 Hex Hd Cap

$6.99

$

In Stock, Qty 19

0

Cub Cadet IH-21318-R1

Screw, 3/8-16 X 2-1/2 Hex Hd Cap

$

$

Not available
