10800 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

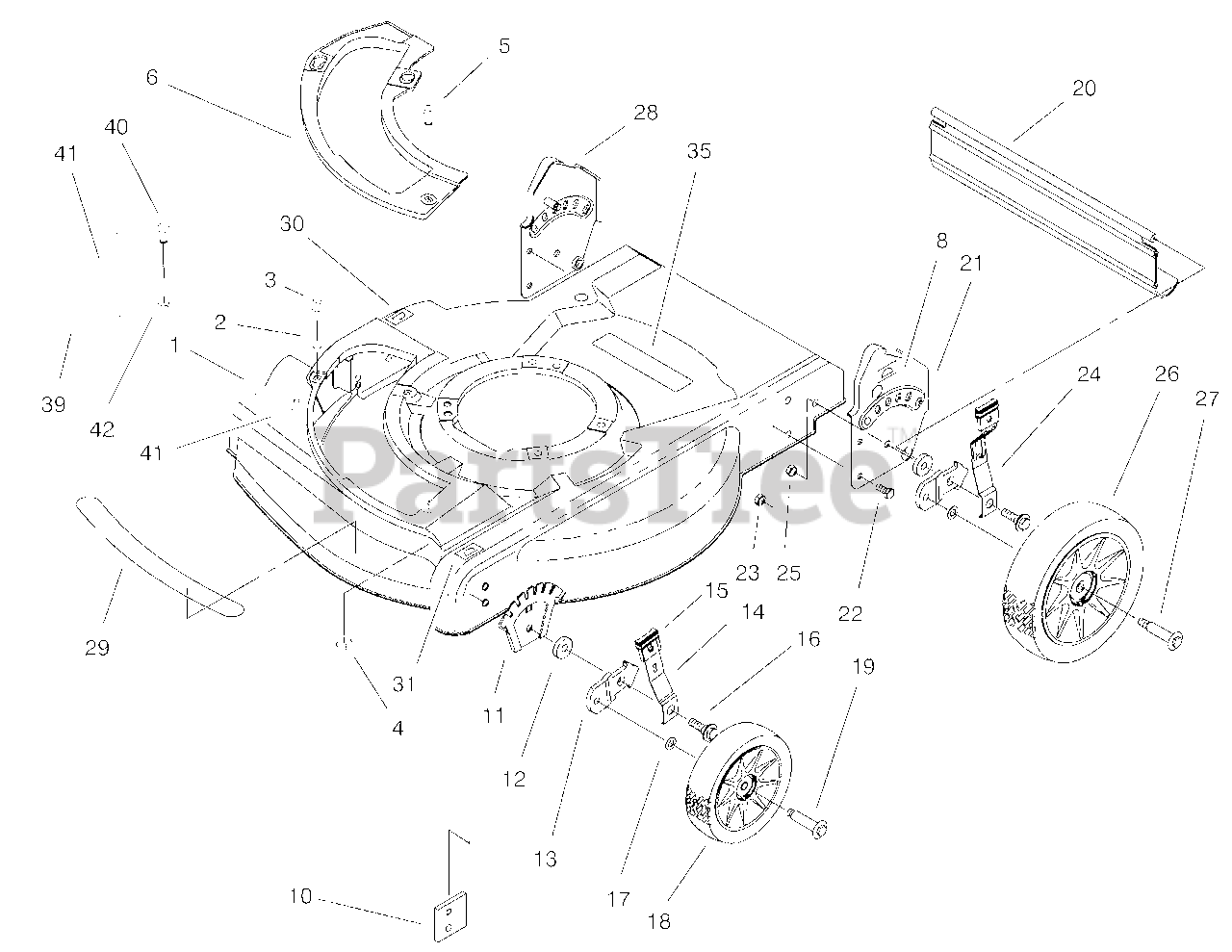

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-7172

ASM-Hous & Baffle(Mach)

$

$

Currently unavailable

2

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 9

0

3

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

4

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

5

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$36.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

12

$8.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 95-7403

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

14

Lawn-Boy 614687

Spring Arm-Front

$21.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 92-1008

Knob-Height Adjust

$14.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

17

$2.99

$

In Stock, Qty 18

0

18

Lawn-Boy 92-8885

ASM-Wheel & Tire 6"

$41.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 92-7743

ASM-Handle Brkt

$

$

Not available

22

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

23

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 92-1005

ASM-Spring Arm

$21.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 8

0

26

Lawn-Boy 92-8887

ASM-Wheel

$

$

Not available

26:1

$2.99

$

In Stock, Qty 8

0

27

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

In Stock, Qty 9

0

28

Lawn-Boy 92-7742

RH Handle Bracket ASM

$

$

Not available

29

Lawn-Boy 92-8833

Decal-Deck 345vp

$

$

Not available

30

Lawn-Boy 93-6671

Decal-HOC

$

$

Not available

31

Lawn-Boy 93-6670

Decal-HOC

$

$

Not available

35

Lawn-Boy 93-6657

Decal-Danger

$

$

Not available

39

Lawn-Boy 93-7415

Guard-Plate

$

$

Not available

40

$2.99

$

In Stock, Qty 14

0

41

Lawn-Boy 93-6667

Decal-Danger

$

$

Not available

42

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 12

0
