10800 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

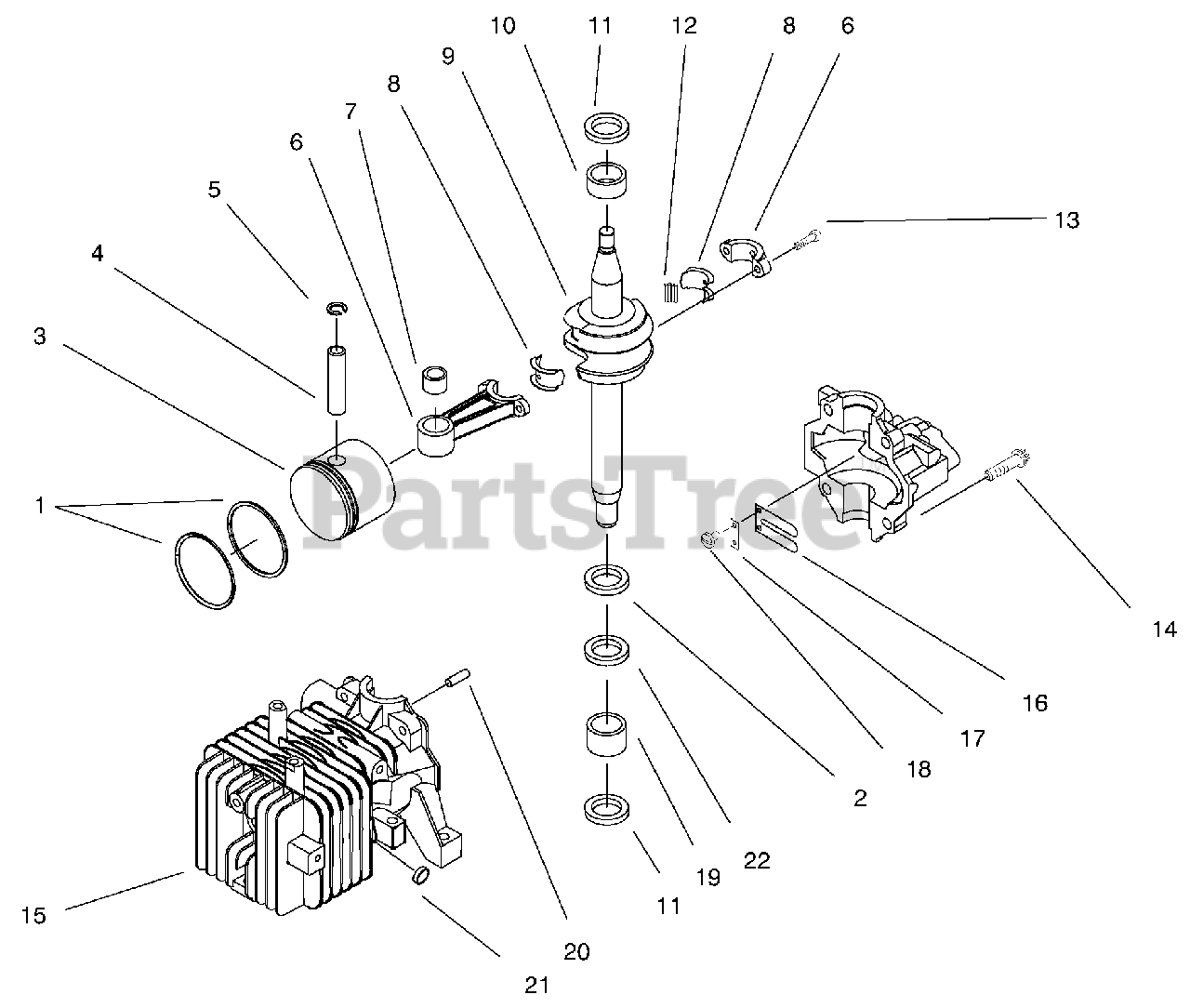

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 681737

Set-Ring

$

$

Not available

2

Lawn-Boy 252-76

Bearing-Thrust

$21.99

$

In Stock, Qty 6

0

3

Lawn-Boy 92-4925

Piston & Connecting Rod (Incl. Ref. #1-2, 4-8, 12, & 13)

$

$

Not available

4

Lawn-Boy 606608

Pin-Wrist
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 303712

Ring-Retaining

$3.49

$

In Stock, Qty 11

0

6

Lawn-Boy 92-4921

Connecting Rod Assembly (Incl. Ref. #6-8, 12, & 13)

$241.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 92-4927

Bearing

$

$

Not available

8

Lawn-Boy 677982

Liner-Split (Set of 2)

$46.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 94-5713

Crankshaft

$292.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 681830

Bearing-Upper Main

$41.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611396

Seal-Oil

$6.99

$

In Stock, Qty 19

0

12

Lawn-Boy 609754

Bearing-Needle
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

13

Lawn-Boy 611393

Screw-Hex. Hd.

$22.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 614636

Screw-Torx. Washer Hd.

$

$

Not available

16

Lawn-Boy 602588

Reed-Carburetor

$

$

Not available

17

Lawn-Boy 602587

Reed-Backup Plate

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612872

Screw

$2.49

$

In Stock, Qty 5

0

19

Lawn-Boy 681831

Bearing-Needle

$24.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 609629

Dowel

$

$

Not available

21

Lawn-Boy 609123

Plug-Core

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 252-80

Washer-Thrust

$9.99

$

In Stock, Qty 20+

0
