10800 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

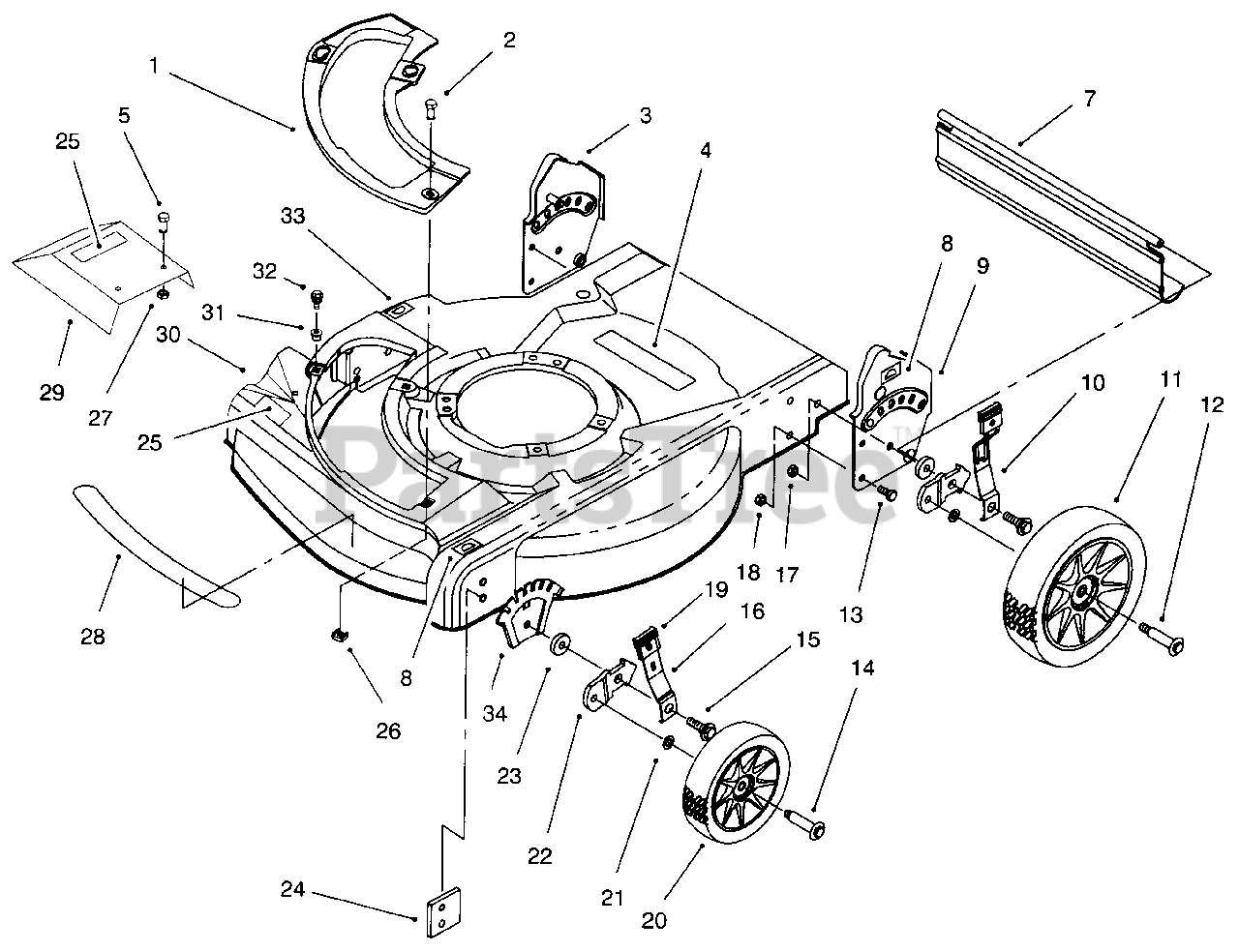

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$30.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 92-7742

Handle Brkt. Ass'y-R.H.

$

$

Not available

4

Lawn-Boy 93-6657

Decal-Danger

$25.99

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, Qty 13

0

7

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 93-6671

Decal-H.O.C. L.H.

$

$

Not available

9

Lawn-Boy 92-7743

Handle Brkt. Ass'y-L.H.

$

$

Not available

10

Lawn-Boy 92-1005

Spring Arm Ass'y

$21.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 92-8887

Wheel & Tire Assembly

$

$

Not available

12

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 614672

Bolt-Shoulder Height Adj.

$2.99

$

In Stock, Qty 6

0

16

Lawn-Boy 614687

Spring Arm Ass'y

$21.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 92-8885

Wheel & Tire Assembly

$35.99

$

Usually ships in 3-6 days

0

21

$2.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 614637

Bracket-Wheel Height Adj.
(Superseded to 95-7403-03)

$

$

Not available

23

$8.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 93-6667

Decal-Warning

$

$

Not available

26

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 10

0

27

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-8833

Decal-Deck 345VP

$

$

Not available

29

Lawn-Boy 93-7415

Guard-Plate

$

$

Not available

30

$

$

Not available

31

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 14

0

32

Lawn-Boy 614677

Screw-Sems Thr'd Form

$3.99

$

In Stock, Qty 16

0

33

Lawn-Boy 93-6670

Decal-H.O.C. R.H.

$

$

Not available

34

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0
