10800 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) HANDLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

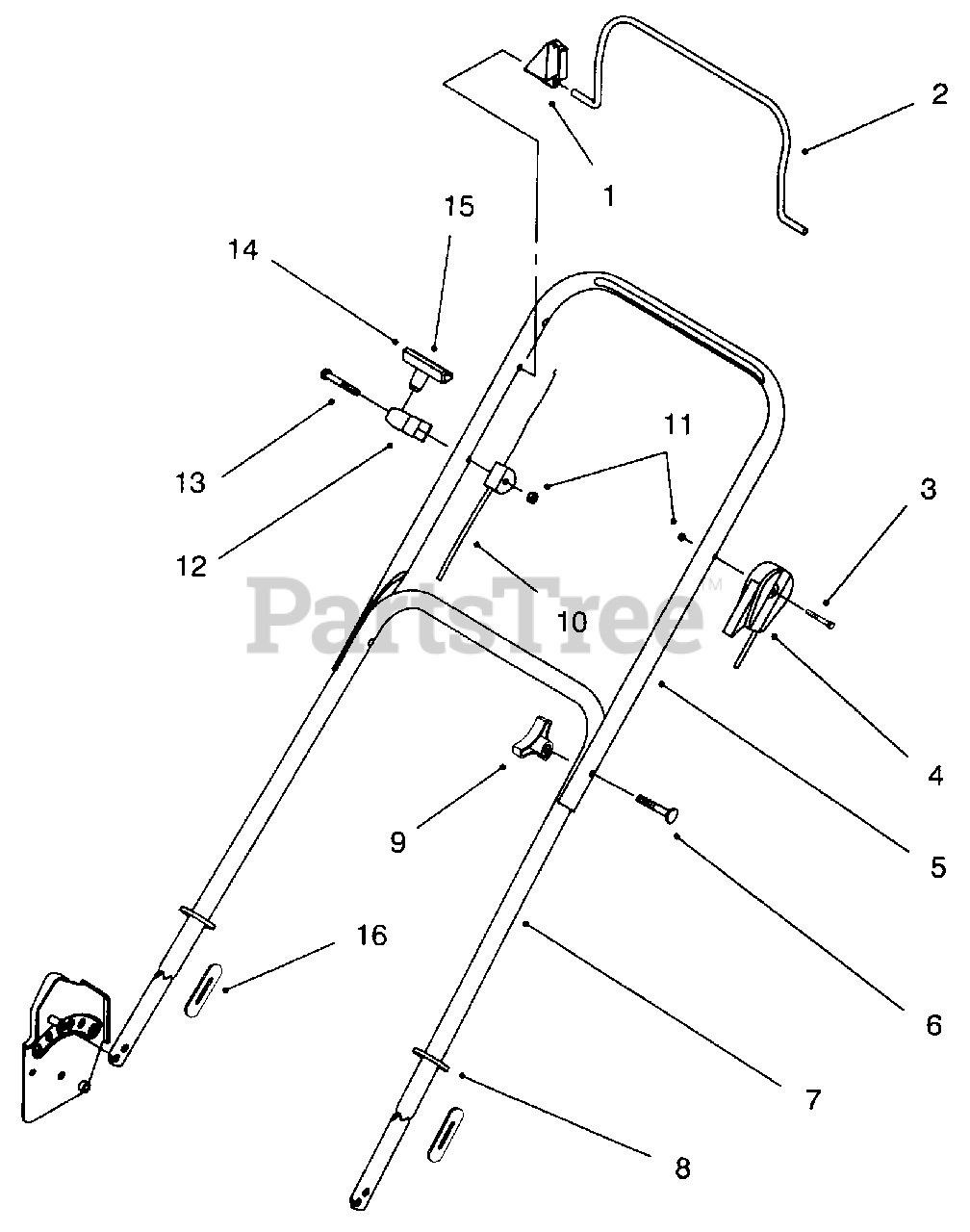

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

2

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

3

Lawn-Boy 321-14

Screw-Hex Hd. Cap

$4.99

$

In Stock, Qty 12

0

4

Lawn-Boy 92-9326

Cable-Throttle

$

$

Not available

5

Lawn-Boy 92-7737

Handle-Upper
(Superseded to 92-7737-05)

$

$

Not available

6

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

7

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

8

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

9

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 16

0

10

Lawn-Boy 92-7738

Cable-Flywheel Brake

$28.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 6

0

12

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

13

Lawn-Boy 321-53

Screw-Hex Hd Cap
(Superseded to 33115-035)

$2.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 612824

Clip-Rope Insert

$3.99

$

In Stock, Qty 10

0

16

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0
