10800 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

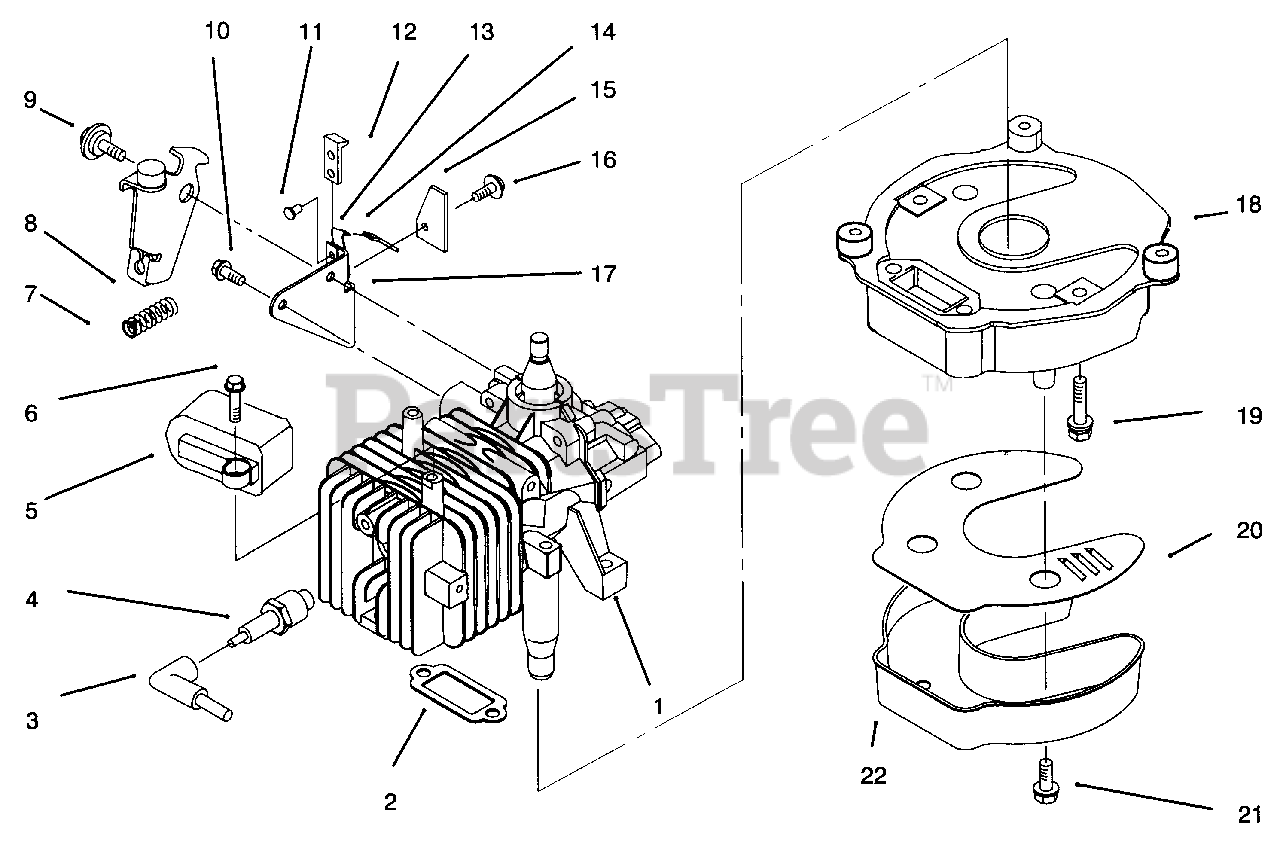

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-9693

Short Block (Incl. Ref. #2, Ref. #9 pg. 8)
(Superseded to 94-5737)

$

$

Not available

2

Lawn-Boy 93-1233

Gasket-Exhaust

$2.49

$

In Stock, Qty 20+

0

3

CD Ignition

$

$

Not available

Lawn-Boy 681678

Cover & Terminal

Note: Not Illustrated

$25.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614009

Plug-Spark

$6.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 684049

CD Ignition (Incl. Ref. #3)
(Superseded to 99-2916)

$79.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 613208

Screw-Hex. Washer Hd.

$2.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 66-5370

Spring-Compression

$13.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 66-5380

Brake Plate Assembly

$82.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-9698

Screw-Shoulder

$5.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 614702

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 3290-459

Rivet-Plastic

$2.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 92-2925

Strap-Insulation

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 60-9010

Strap-Ground

$14.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-1156

Wire-Brake Switch Lead

$

$

Not available

15

Lawn-Boy 53-4690

Stop-Ground Strap

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 12-5450

Screw-Thread Forming

$10.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 14-6009

Mounting Plate

$

$

Not available

18

Lawn-Boy 614654

Plate-Muffler

$127.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 607601

Screw

$4.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 614681

Baffle
(Superseded to 93-4343)

$14.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 609471

Screw

$4.99

$

In Stock, Qty 10

0

22

Lawn-Boy 614674

Cover-Muffler
(Superseded to 614674-03)

$

$

Not available
