10800 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

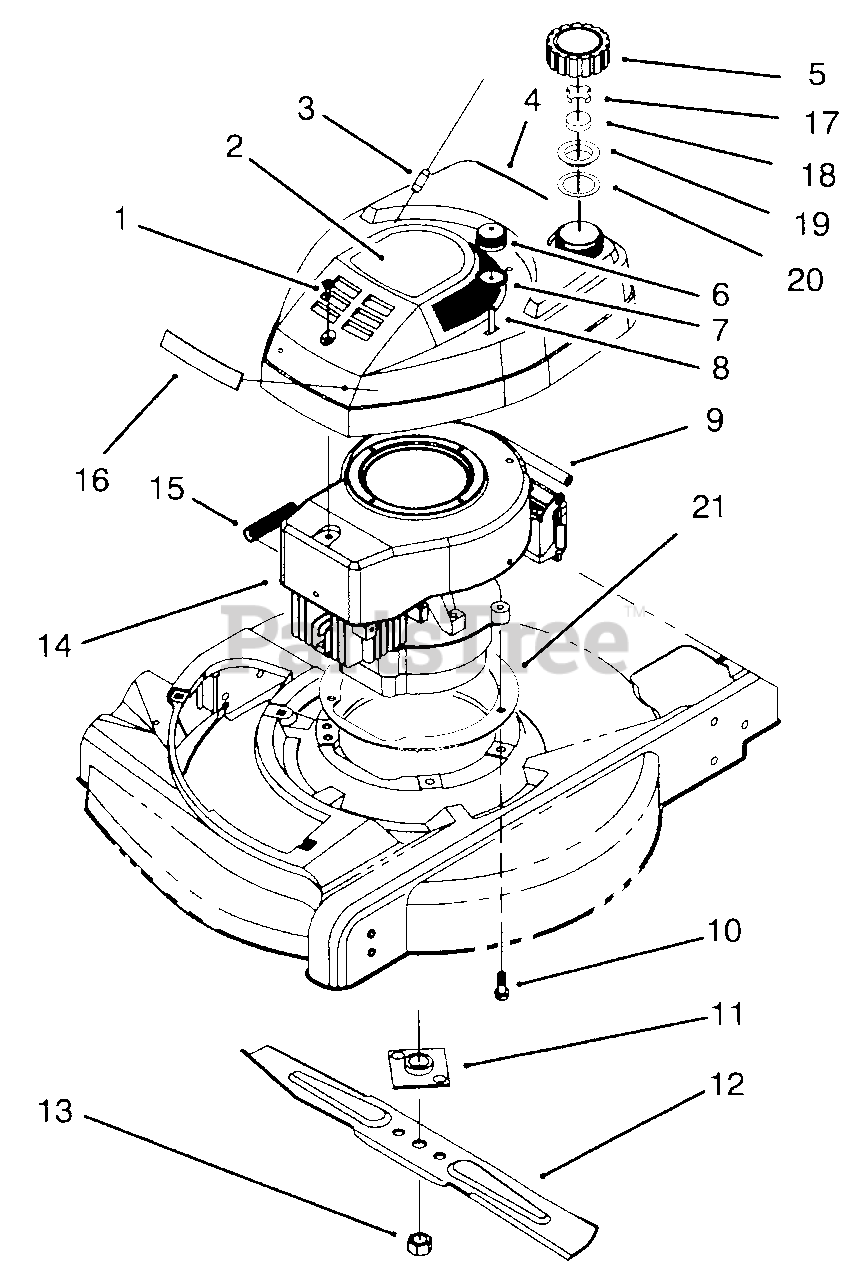

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-4302

Screw-Sems

$7.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 92-8828

Decal-Shroud

$

$

Not available

3

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-8619

Tank & Shroud Assembly
(Superseded to 92-6380)

$130.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 93-3660

Gas Cap Assembly (Incl. Ref. #17-20)
(Superseded to 98-8344)

$24.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 44-3174

Hose-Primer

$5.99

$

In Stock, Qty 15

0

9

Lawn-Boy 612782

Line-Gas

$7.49

$

In Stock, Qty 9

0

10

Lawn-Boy 92-1624

Screw-Engine
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 677525

Plate & Collar Assembly

$51.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

14

Engine

$

$

Not available

15

Lawn-Boy 66-5370

Spring-Compression

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 93-3175

Baffle

$

$

Not available

18

Lawn-Boy 609150

Baffle-Foam

$6.49

$

In Stock, Qty 11

0

19

Lawn-Boy 93-1230

Cover

$

$

Not available

20

Lawn-Boy 613311

Gasket

$

$

Not available

21

Lawn-Boy 93-7152

Plate-Engine

$104.99

$

Usually ships in 3-6 days

0
