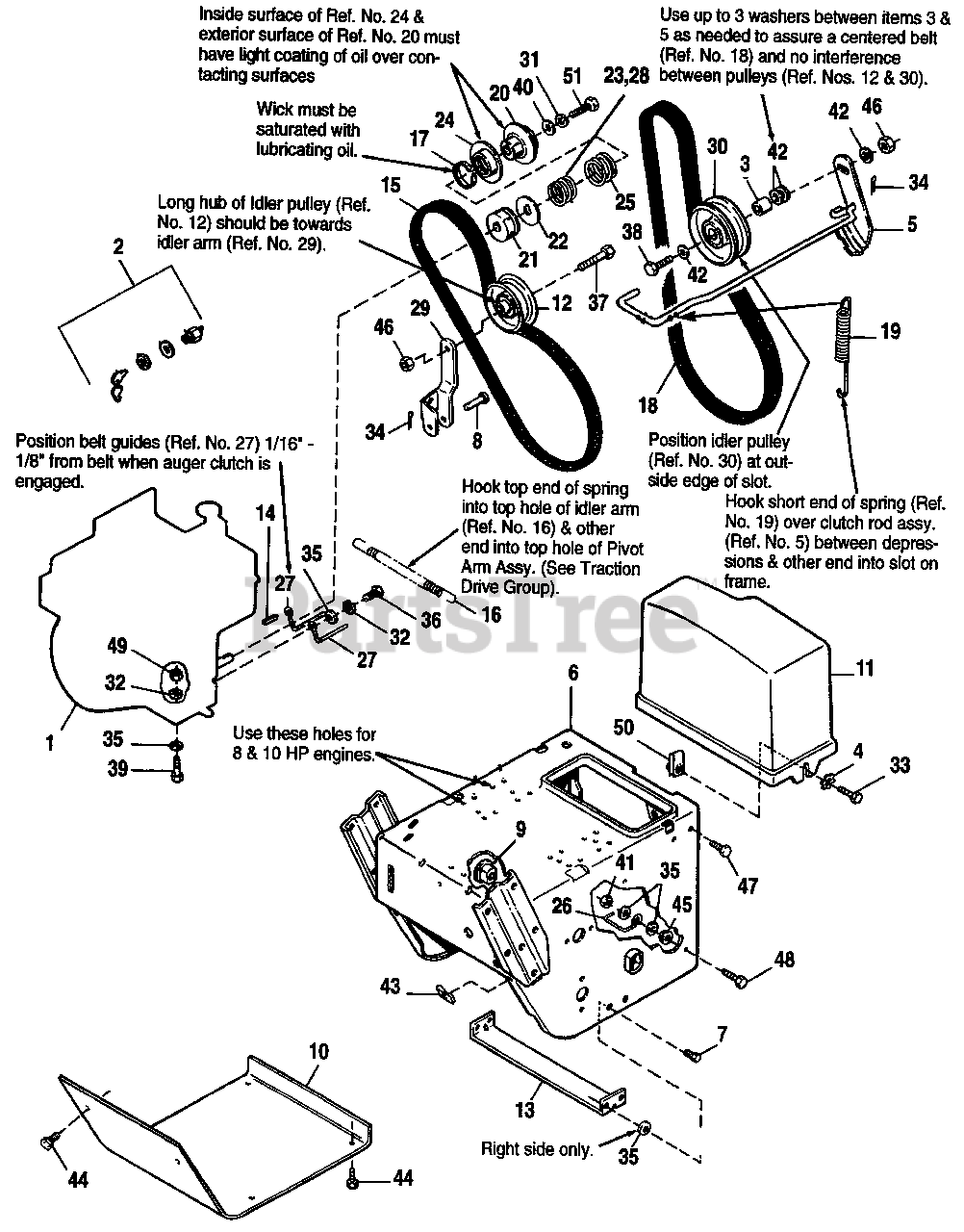

1080 S (1691899) - Simplicity 32" Snow Thrower, 10hp Engine & Frame Group Parts Diagram

32" Snow Thrower, 10hp

Engine & Frame Group Parts Diagram

  • Title

1

ENGINE, Tecumseh

$

$

Not available

2

IGNITION SWITCH ASSY.

$

$

Not available

3

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

4

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1727058ASM

CLUTCH ROD & BRAKE ASSY.
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

6

Simplicity 1612458

FRAME, Main

$

$

Not available

7

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1665994SM

PIN
(Superseded to 703145)

$3.99

$

In Stock, only 4 left!

0

9

Simplicity 1666001SM

BUSHING, Axle

$6.99

$

In Stock, Qty 6

0

10

Simplicity 1666374SM

COVER, Bottom

$

$

Not available

11

Simplicity 1725287SM

GUARD, Belt
(Superseded to 706414)

$

$

Not available

12

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

13

Simplicity 1669198ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 1672129SM

KEY, Parallel, 3/16 x 13/16 x 7/8

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1672732SM

BELT, Traction

$20.99

$

In Stock, Qty 20+

0

16

Simplicity 1727149SM

SPRING, Idler
(Superseded to 703146)

$

$

Not available

17

Simplicity 1685366SM

WICK, Oil

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 1701257SM

BELT, Auger Drive

$36.99

$

In Stock, Qty 6

0

19

Simplicity 1724503SM

SPRING, Extension

$20.99

$

In Stock, Qty 6

0

20

Simplicity 1726864SM

PULLEY, Half Drive

$

$

Not available

21

Simplicity 1701783SM

PULLEY, Traction

$46.99

$

Usually ships in 2-12 days

0

22

Simplicity 1701818SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

23

Simplicity 1701849SM

SPRING, Compression (Model 10-80)

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1726863SM

PULLEY, Half

$46.99

$

Usually ships in 2-12 days

0

25

Simplicity 1702425SM

SPRING, Compression

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 1702969SM

BELT GUIDE

$6.49

$

In Stock, only 1 left!

0

27

Simplicity 1702970SM

BELT GUIDE
(Superseded to 2167032SM)

$31.99

$

Usually ships in 2-12 days

0

28

Simplicity 1702979SM

SPRING, Compression (Model 8-70 & 9-70)

$10.99

$

Usually ships in 2-12 days

0

29

Simplicity 1703046ASM

ARM, Idler, Traction

$10.99

$

Usually ships in 2-12 days

0

30

Simplicity 1726348SM

PULLEY ASSY.

$24.99

$

In Stock, Qty 7

0

31

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

32

Simplicity 1917356SM

LOCKWASHER 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1918249SM

SCREW, Truss Hd., 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1918451SM

PlN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER, 11/32 x 3/4

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1921515SM

CAPSCREW, Hex. Hd., 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

38

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

39

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 2
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1922755SM

WASHER, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

41

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

42

Simplicity 1924940SM

WASHER, Flat, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1926018SM

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 12

0

44

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

45

Simplicity 1927557SM

NUT, Hex, Whizlock 5/16-18

$4.99

$

Usually ships in 2-12 days

0

46

Simplicity 1928731SM

LOCKNUT, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

47

Simplicity 1930591SM

CAPSCREW, Whizlock 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

48

Simplicity 1930595SM

CAPSCREW, Whizlock 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

49

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

50

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

51

Simplicity 1960345SM

CAPSCREW, Hex Hd., 3/8-24 x 2

$2.99

$

In Stock, only 1 left!

0
