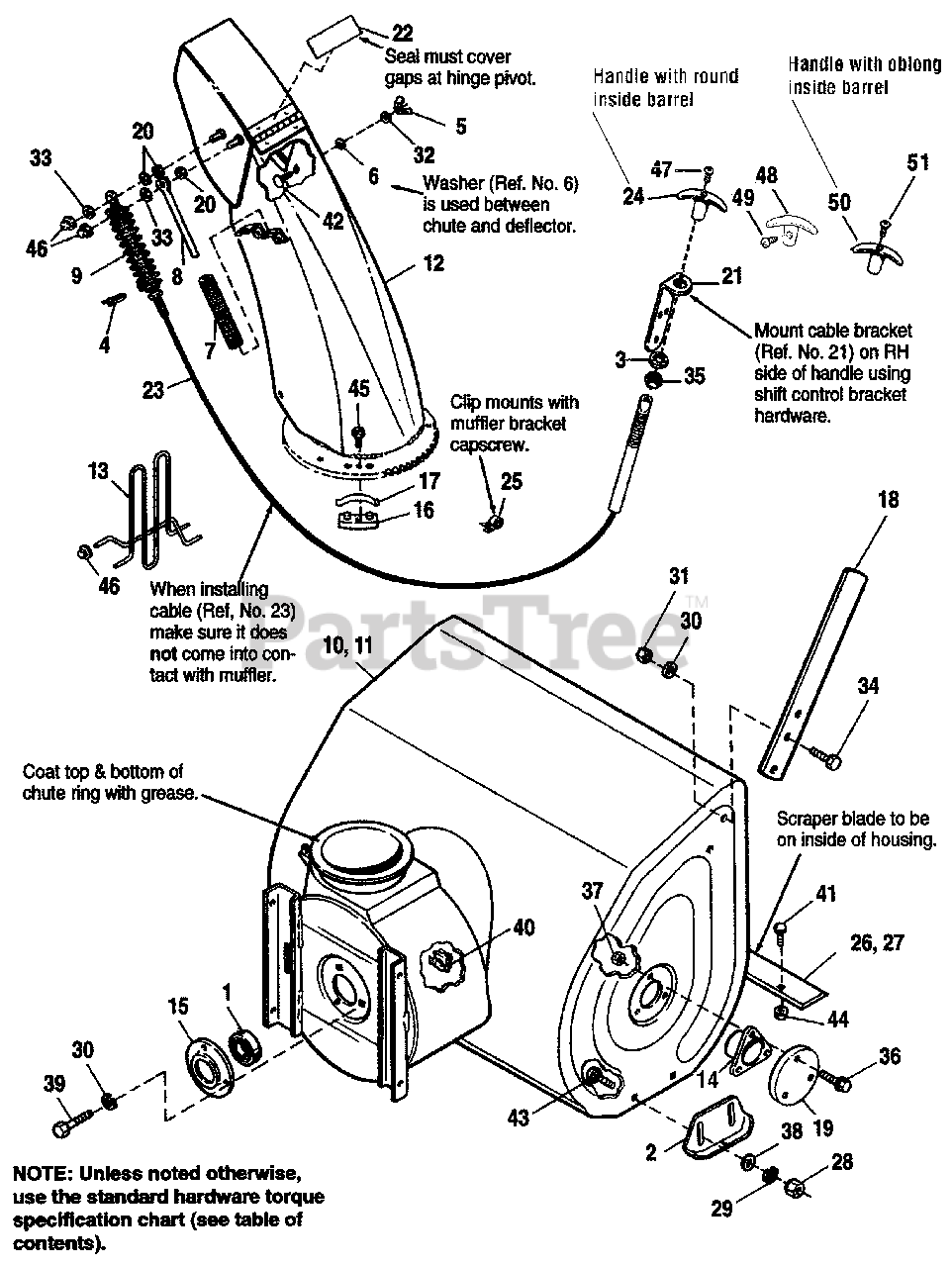

1080 S (1691899) - Simplicity 32" Snow Thrower, 10hp Auger Housing & Chute Parts Diagram

32" Snow Thrower, 10hp

Auger Housing & Chute Parts Diagram

  • Title

1

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

2

Simplicity 2177434C

SKID

$

$

Not available

3

Simplicity 2818906

LOCKWASHER, Int. Tooth

$

$

Not available

4

Simplicity 2832747SM

TIE, Self-Locking Cable Assy.

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1919438SM

NUT, ESNA 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1611939SM

SPRING

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1611945SM

ROD, Spring

$13.99

$

In Stock, only 1 left!

0

9

Simplicity 1700048SM

BOOT, Water

$

$

Not available

10

Simplicity 1612185C

HOUSING ASSY., Auger, 8-70, 9-70

$

$

Not available

11

Simplicity 1612186C

HOUSING ASSY., Auger, 10-80

$

$

Not available

12

Simplicity 1720671SM

CHUTE ASSY.
(Superseded to 1720671CSM)

$141.99

$

Usually ships in 2-12 days

0

13

Simplicity 1612455SM

GUARD, Chute

$45.99

$

Usually ships in 2-12 days

0

14

Simplicity 1665980SM

BEARING, Auger

$

$

Not available

15

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

16

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1667865SM

SPRING

$10.99

$

In Stock, Qty 5

0

18

Simplicity 1715787SM

CUTTER, Drift (Available under P/N 1685189, see page 28)
(Superseded to 1715787CSM)

$37.99

$

Usually ships in 2-12 days

0

19

Simplicity 1668639CSM

BEARING, Cap
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

20

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 1726411ASM

BRACKET, Cable

$

$

Not available

22

Simplicity 1706085SM

SEAL, Hinge

$13.99

$

Usually ships in 2-12 days

0

23

Simplicity 1718771SM

CABLE ASSY. (Incl. Ref. Nos. 3, 9, 21 & 36)

$186.99

$

In Stock, only 1 left!

0

24

Simplicity 1706201SM

HANDLE, Cable

Note: (Handle with round inside barrel)

$

$

Not available

25

Simplicity 1708008SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1709947ASM

BLADE, Scraper, 8-70, 9-70
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 18

0

27

Simplicity 1709948ASM

BLADE, Scraper, 10-80
(Superseded to 1709948BMYP)

$58.99

$

In Stock, only 3 left!

0

28

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

30

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1919326SM

WASHER, Flat, 11/32

$4.49

$

In Stock, Qty 6

0

33

Simplicity 1921319SM

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

35

Simplicity 1922014SM

NUT, 5/16-18,
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

36

Simplicity 1923325SM

CAPSCREW, Hex Flange Whizlock 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

37

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

38

Simplicity 1924940SM

WASHER, Flat, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 17/64
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1930659SM

NUT, Retainer, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960699SM

CARRIAGE BOLT, Round Head Square Neck 5/16-18 x 5/8 (Qty. 7 on 10-80)
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

42

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

43

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1935048SM

LOCKNUT, Flange, 5/16-18 (Qty. 7 on 10-80)
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 1960001SM

SCREW, Plastite #10
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

46

Simplicity 1960126SM

PUSH NUT
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

47

Simplicity 1960499SM

SCREW, Pan Hd., #8-32 x 11/16

$

$

Not available

48

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

49

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

50

Simplicity 1719138SM

KNOB

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

51

Simplicity 1960600SM

SCREW, 8-32

$4.99

$

Usually ships in 2-12 days

0
