1080 M (1691371) - Simplicity 32" Snow Thrower, 10hp Headlight Group (8 & 10HP Models) Parts Diagram

32" Snow Thrower, 10hp

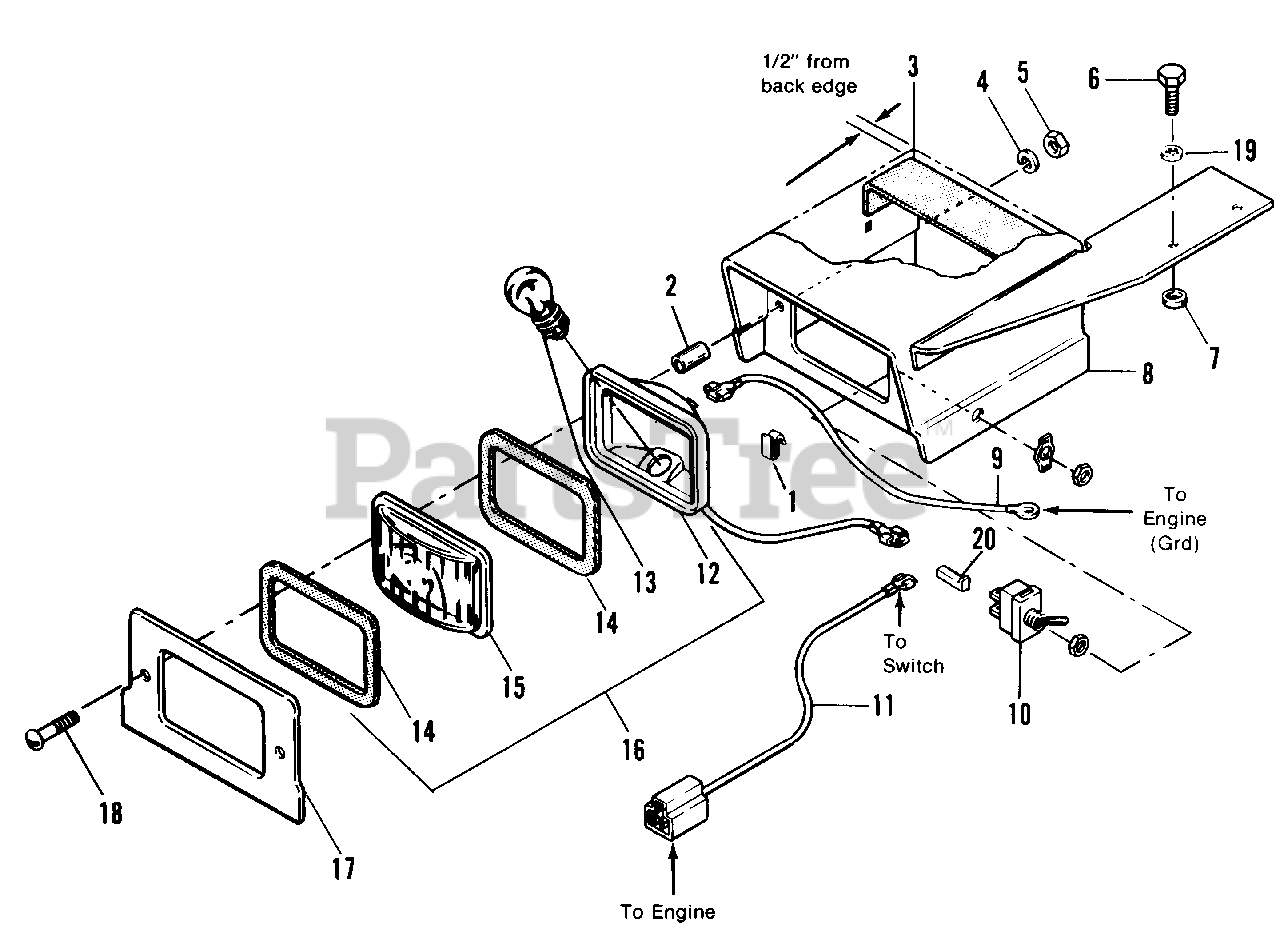

Headlight Group (8 & 10HP Models) Parts Diagram

  • Title

1

Simplicity 122159

CLIP, Wire (1691370, 1691371 only)

$

$

Not available

2

Simplicity 1664792SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1668830SM

PAD, Rubber

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1919381SM

WASHER, Plain, 5/16 x 1 O.D.
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1668738SM

COVER ASSY., Headlight

$48.99

$

Usually ships in 2-12 days

0

9

Simplicity 1668762

WIRE, Light to Ground

$

$

Not available

10

Simplicity 2122184SM

SWITCH, Toggle (Incl. washer & nuts)

$22.99

$

Usually ships in 2-12 days

0

11

Simplicity 1701939

WIRE, Engine to Switch (1691370, 1691371 only)

$

$

Not available

11

Simplicity 1612109

WIRE, Engine to Switch (1691716 only)

$

$

Not available

12

Simplicity 1668748

SOCKET, Reflector

$

$

Not available

13

BULB, #1141 (1691370, 1691371 only)

$

$

Not available

13

BULB, #1156 (1691716 only)

$

$

Not available

14

Simplicity 1654662SM

GASKET

$

$

Not available

15

Simplicity 1668721

LENS, Amber

$

$

Not available

16

Simplicity 1701938

LIGHT ASSY. (Incl. Ref. Nos. 12 thru 15)

$

$

Not available

17

Simplicity 1668728A

SUPPORT, Light

$

$

Not available

18

Simplicity 1917451SM

SCREW, Rd. Hd., 1/4-20 x 1

$

$

Not available

19

Simplicity 1923300SM

LOCKWASHER, Internal Tooth, 5/16

$3.99

$

In Stock, only 4 left!

0

20

Simplicity 1700300

CONNECTOR BODY (1691716 only)

$

$

Not available
