1080 M (1691371) - Simplicity 32" Snow Thrower, 10hp Handles & Controls Group Parts Diagram

32" Snow Thrower, 10hp

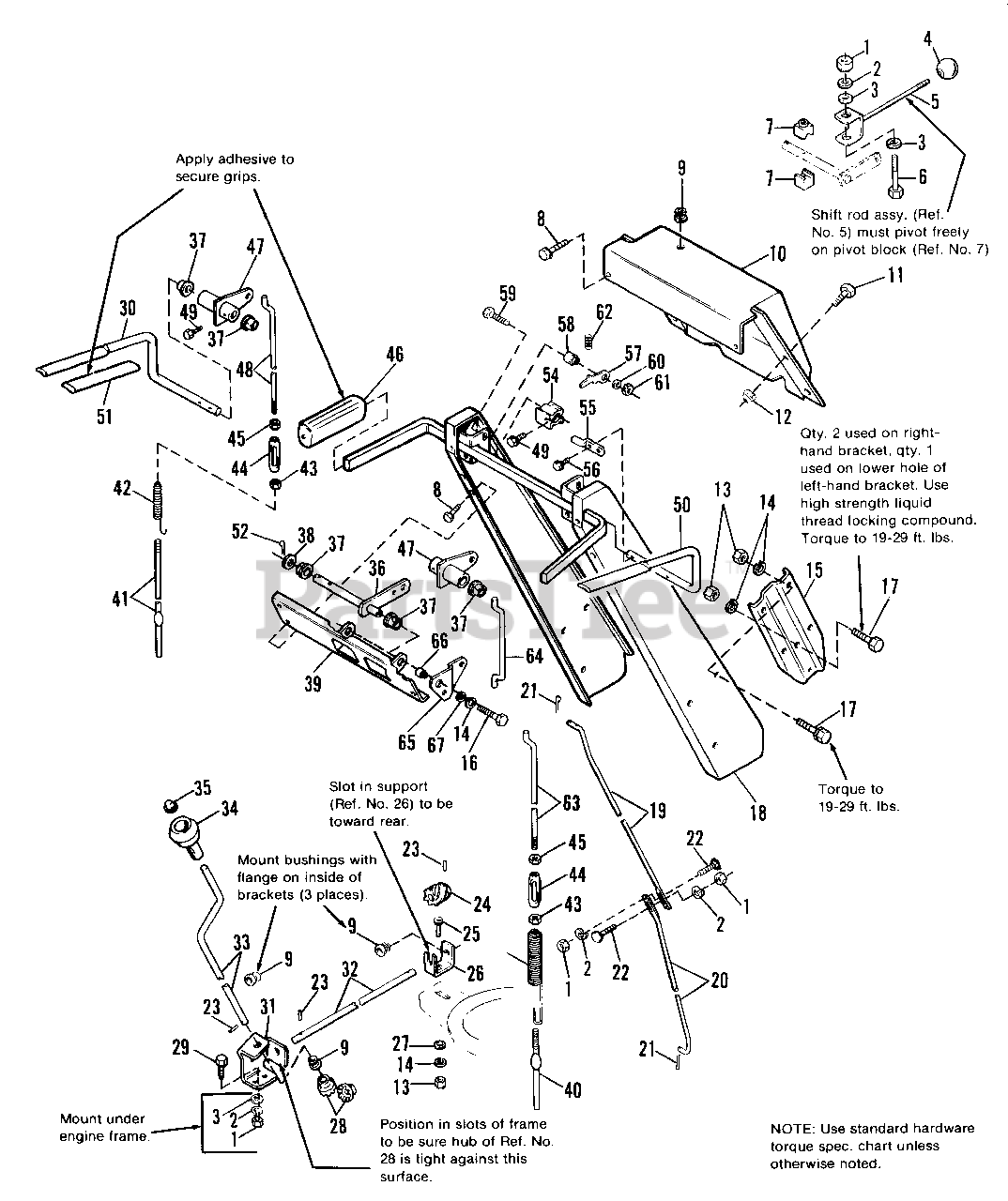

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1668523SM

SHIFT ROD ASSY.
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

6

Simplicity 1921159SM

CAPSCREW, Hex Hd., 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 1667588SM

BUSHING, Plastic

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 1667800CSM

DASH, Handle

$52.99

$

Usually ships in 2-12 days

0

11

Simplicity 1935450SM

CAPSCREW, Washer Hd., 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1920397SM

NUT, Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1667806SM

BRACKET, Handle Mtg.

$15.99

$

Usually ships in 2-12 days

0

16

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1930591SM

CAPSCREW, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

18

Simplicity 1687000SM

HANDLE ASSY.

$149.99

$

Usually ships in 2-12 days

0

19

Simplicity 1666256SM

ROD, Shift-Upper

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 1666255SM

ROD, Shift-Lower

$51.99

$

In Stock, Qty 8

0

21

Simplicity 1918447SM

PIN Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 4 left!

0

23

Simplicity 2816168SM

PIN, Roll, 1/8 x 3/4

$4.49

$

In Stock, Qty 14

0

24

Simplicity 1668186SM

WORM, Chute

$41.99

$

In Stock, only 3 left!

0

25

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1611911SM

SUPPORT, Worm

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 9

0

28

Simplicity 1718593SM

GEAR, Universal

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 1930594SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1679051

HANDLE, Clutch, L.H.

$

$

Not available

31

Simplicity 1718793SM

SUPPORT, Universal Gear

$19.99

$

Usually ships in 2-12 days

0

32

Simplicity 1668187SM

ROD, Chute Worm
(Superseded to 1725283SM)

$

$

Not available

33

Simplicity 1714084SM

ROD, Chute Control

$12.99

$

In Stock, only 1 left!

0

34

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

35

Simplicity 1960093SM

PALNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1703043SM

PIVOT ROD ASSY.

$32.99

$

Usually ships in 2-12 days

0

37

Simplicity 1668185SM

BUSHING, Plastic

$5.49

$

Usually ships in 2-12 days

0

38

Simplicity 1924361SM

WASHER
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1723935

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

40

Simplicity 1702004SM

ROD, Clutch-Lower, Auger

$16.99

$

In Stock, only 2 left!

0

41

Simplicity 1668526SM

ROD, Clutch-Lower, Traction

$

$

Not available

42

Simplicity 1707452SM

SPRING

$14.99

$

In Stock, Qty 6

0

43

Simplicity 1916621SM

NUT, Hex, #10-24, R.H.

$3.49

$

In Stock, Qty 11

0

44

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

45

Simplicity 2828704SM

NUT, Hex, #10-24, L.H.

$5.99

$

In Stock, only 2 left!

0

46

Simplicity 1671041SM

GRIP, Handle Bar

$9.99

$

Usually ships in 2-12 days

0

47

Simplicity 1668060SM

CLUTCH LEVER ASSY.

$139.99

$

Usually ships in 2-12 days

0

48

Simplicity 1668121SM

ROD, Clutch-Upper

$

$

Not available

49

Simplicity 1928732SM

SCREW, Taptite, #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

50

Simplicity 1703045SM

HANDLE, Clutch R.H.

$

$

Not available

51

Simplicity 1668608SM

GRIP, Clutch

$

$

Not available

52

Simplicity 1918452SM

PIN, Cotter, 1/8 x 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

53

Simplicity 1701996SM

SPRING

$12.99

$

In Stock, only 3 left!

0

54

Simplicity 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 4 left!

0

55

Simplicity 1677453SM

ROD, Control

$8.99

$

Usually ships in 2-12 days

0

56

Simplicity 1928732SM

SCREW, Taptite, #10-32 x 1.00
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

57

Simplicity 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

In Stock, only 1 left!

0

58

Simplicity 1678579SM

SPACER, Special
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

59

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

60

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 9

0

61

Simplicity 1923326

NUT, Hex Lock, 5/16-18

$

$

Not available

62

Simplicity 1701342SM

SPRING
(Superseded to 1750475YP)

$4.49

$

In Stock, only 2 left!

0

63

Simplicity 1702485SM

ROD, Upper Clutch, Auger

$

$

Not available

64

Simplicity 1702663SM

ROD, Clutch

$13.99

$

Usually ships in 2-12 days

0

65

Simplicity 1702662SM

LEVER, Clutch

$48.99

$

Usually ships in 2-12 days

0

66

Simplicity 1702552SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

67

Simplicity 1919381SM

WASHER, Plain, 5/16 x 1
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0
