1080 M (1691371) - Simplicity 32" Snow Thrower, 10hp Auger Drive Group Parts Diagram

32" Snow Thrower, 10hp

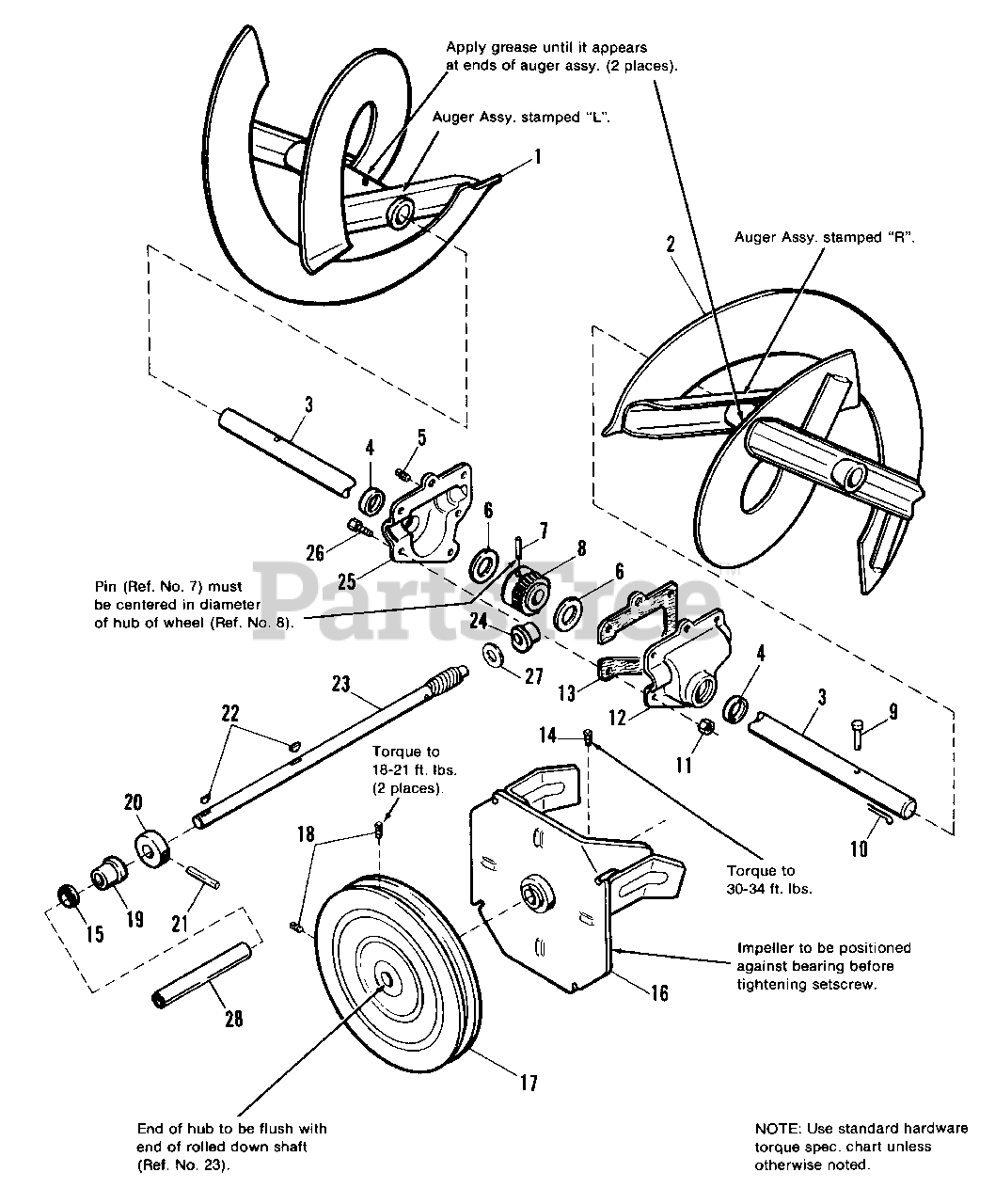

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1666401SM

AUGER ASSY., L.H., 24"

$

$

Not available

1

Simplicity 1666660SM

AUGER ASSY., L.H., 28"

$

$

Not available

1

Simplicity 1666409

AUGER ASSY., L.H., 80 32"

$

$

Not available

2

Simplicity 1666402SM

AUGER ASSY., R.H., 24"

$

$

Not available

2

Simplicity 1666659

AUGER ASSY., R.H., 28"

$

$

Not available

2

Simplicity 1666454

AUGER ASSY., R.L., 32"

$

$

Not available

3

Simplicity 1667983SM

SHAFT, Auger

$149.99

$

Usually ships in 2-12 days

0

4

Simplicity 2118118SM

SEAL

$10.99

$

In Stock, Qty 20+

0

5

Simplicity 1668971SM

PLUG, Pipe, 1/8

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1666423SM

WASHER, Thrust

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 2836100SM

PIN, Drivelok, 5/16 x 1-1/2

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 1666509SM

WHEEL, Worm

$164.99

$

Usually ships in 2-12 days

0

9

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1686821SM

CASE, Gear, R.H.

$

$

Not available

13

Simplicity 1721676SM

GASKET

$17.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960474SM

SETSCREW, Sq. Hd., 3/8-16 x 1/2

$5.99

$

In Stock, Qty 7

0

15

Simplicity 1611789SM

SEAL, Oil

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 1668113ASM

IMPELLER ASSY.

$240.99

$

Usually ships in 2-12 days

0

17

Simplicity 1679293SM

PULLEY, Auger Input

$120.99

$

Usually ships in 2-12 days

0

18

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 1666425SM

BUSHING, Flange

$20.99

$

In Stock, Qty 20+

0

20

Simplicity 1721680SM

COLLAR, Thrust

$

$

Not available

21

Simplicity 2836098SM

PIN, Drivelok, 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

22

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1666426SM

SHAFT, Roller Worm

$170.99

$

Usually ships in 2-12 days

0

24

Simplicity 1666424SM

BUSHING, Flange

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 1686821SM

CASE, Gear, L.H.

$

$

Not available

26

Simplicity 1924009SM

CAPSCREW, Hex Hd., 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 7

0

28

Simplicity 1612111SM

TUBE

$21.99

$

In Stock, only 4 left!

0
