1080 (1690546) - Simplicity 32" Snow Thrower, 10hp Handles & Controls Group Parts Diagram

32" Snow Thrower, 10hp

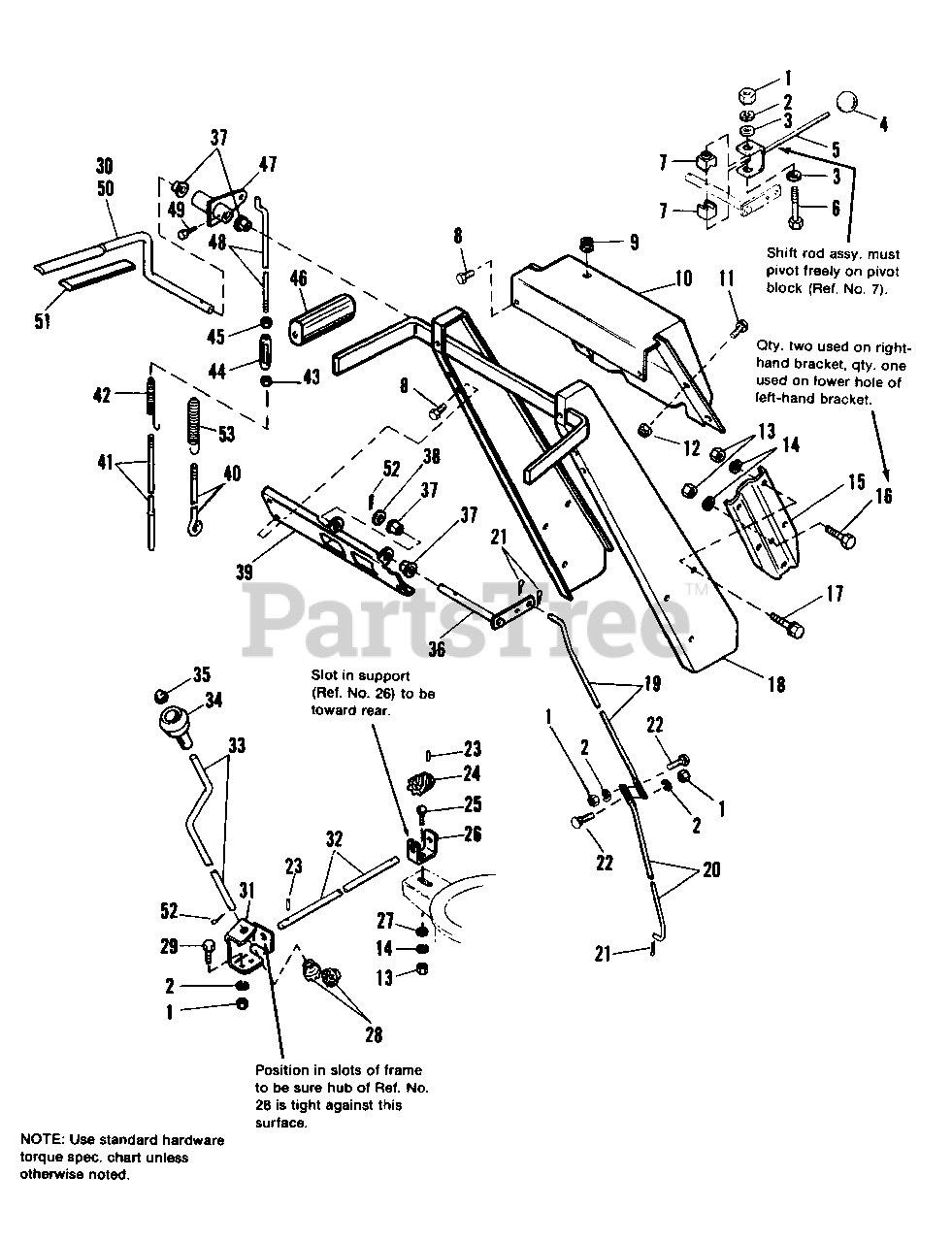

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

4

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1668523SM

SHIFT ROD ASSY.
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

6

Simplicity 2821159

CAPSCREW, Hex Hd., 1/4-20 x 2-1/4

$

$

Not available

7

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

9

Simplicity 1667588SM

BUSHING, Plastic

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 1667800CSM

DASH, Handle

$52.99

$

Usually ships in 2-12 days

0

11

Simplicity 2835450

CAPSCREW, Washer hd., 1/4-20 x 3/4

$

$

Not available

12

Simplicity 2820397

NUT, Nylon Lock, 1/4-20

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1667806SM

BRACKET, Handle Mfg.

$15.99

$

Usually ships in 2-12 days

0

16

Simplicity 2821332

CAPSCREW Hex Hd., 5/16-18 x 3/4

$

$

Not available

17

Simplicity 2830591

CAPSCREW, Whizlock, 5/16-18 x 3/4

$

$

Not available

18

Simplicity 1687000SM

HANDLE ASSY.

$149.99

$

Usually ships in 2-12 days

0

19

Simplicity 1666256SM

ROD, Shift-Upper

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 1666255SM

ROD, Shift-Lower

$51.99

$

In Stock, only 4 left!

0

21

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

22

Simplicity 2831317

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

23

Simplicity 2816168SM

PIN, Roll, 1/8 x 3/4

$4.49

$

In Stock, Qty 15

0

24

Simplicity 1668186SM

WORM, Chute

$41.99

$

In Stock, only 3 left!

0

25

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

26

Simplicity 1685369SM

SUPPORT, Worm

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 2817642

WASHER, Flat, 5/16

$

$

Not available

28

Simplicity 1718593SM

GEAR, Universal

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

30

Simplicity 1667815

HANDLE, Clutch, L.H.

$

$

Not available

31

Simplicity 1685368SM

SUPPORT, Universal Gear

$

$

Not available

32

Simplicity 1668187SM

ROD, Chute Worm
(Superseded to 1725283SM)

$

$

Not available

33

Simplicity 1715658SM

ROD, Chute Control

$28.99

$

Usually ships in 2-12 days

0

34

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

35

Simplicity 1960093SM

PALNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

36

Simplicity 1674567SM

PIVOT ROD ASSY.
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

37

Simplicity 1668185SM

BUSHING, Plastic

$5.49

$

In Stock, only 1 left!

0

38

Simplicity 2824361

WASHER

$

$

Not available

39

Simplicity 1723935

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

40

Simplicity 1668525SM

ROD, Clutch-Lower, Auger

$6.99

$

Usually ships in 2-12 days

0

41

Simplicity 1668526SM

ROD, Clutch-Lower, Traction

$

$

Not available

42

Simplicity 1707452SM

SPRING

$14.99

$

In Stock, only 4 left!

0

43

Simplicity 2816621

NUT, Hex, #10-24, R.H.

$

$

Not available

44

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

45

Simplicity 2828704SM

NUT, Hex, #10-24, L.H.

$5.99

$

Usually ships in 2-12 days

0

46

Simplicity 1671041SM

GRIP, Handle bar

$

$

Not available

47

Simplicity 1668060SM

CLUTCH LEVER ASSY.

$139.99

$

Usually ships in 2-12 days

0

48

Simplicity 1668121SM

ROD, Clutch-Upper

$

$

Not available

49

Simplicity 2828732

SCREW, Taptite, #10-24 x 1

$

$

Not available

50

Simplicity 1703045SM

HANDLE, Clutch, R.H.

$

$

Not available

51

Simplicity 1668608SM

GRIP, Clutch

$

$

Not available

52

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

53

Simplicity 1669323SM

SPRING

$36.99

$

Usually ships in 2-12 days

0
