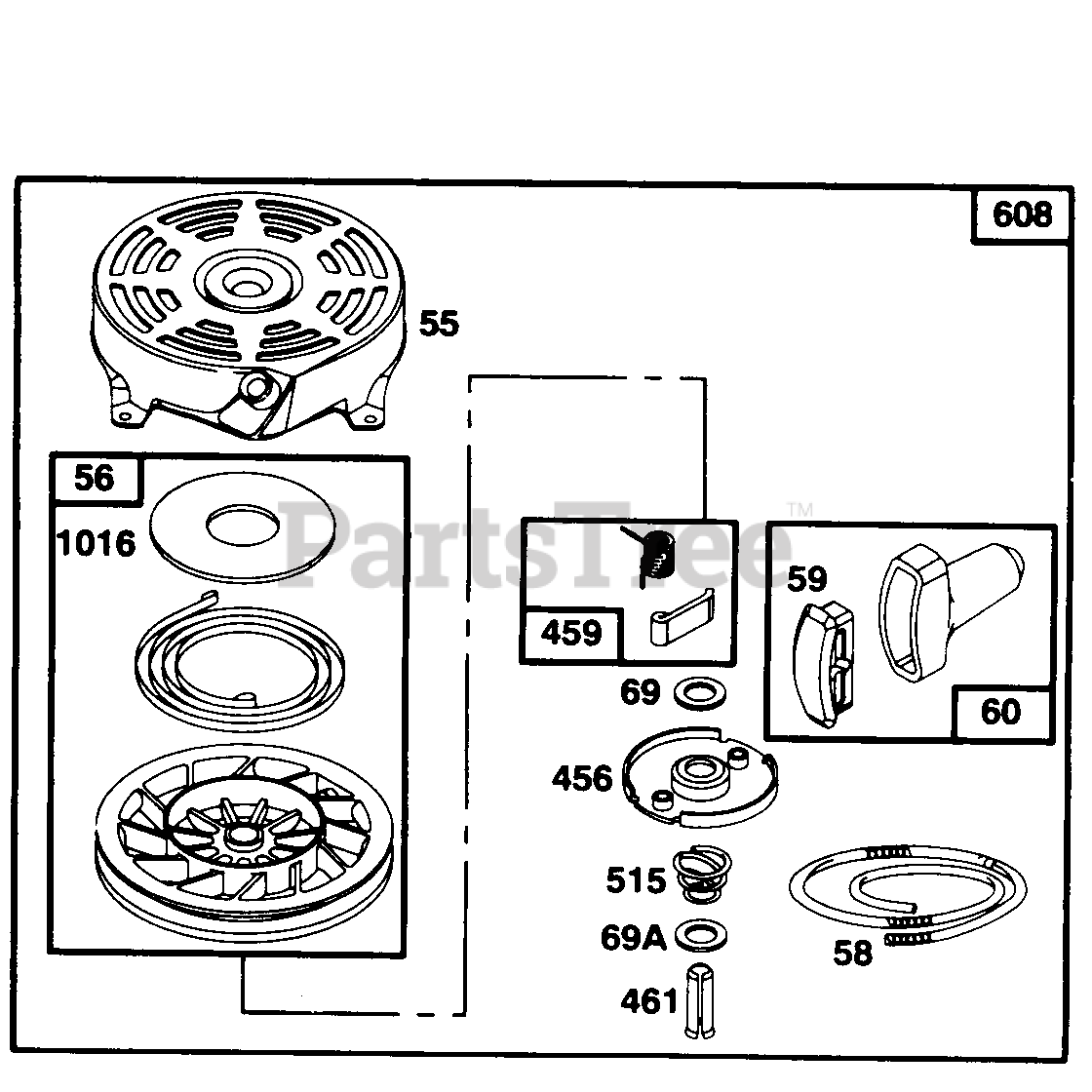

108 C (114-108C100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Rewind Starter Ass'y Parts Diagram

Walk-Behind Mower Engine

B&S 5 HP Rewind Starter Ass'y Parts Diagram

  • Title
55

Cub Cadet BS-492831

Housing--Rewind Starter

$74.99

$

In Stock, only 1 left!

0

56

Cub Cadet BS-493824

Pulley--Rewind Starter

$

$

Not available

58

Cub Cadet BS-280399

Rope Rewind Starter
(Superseded to BS-280399S)

Note: (Cut to 88-5/8")

$5.99

$

In Stock, Qty 9

0

59

Cub Cadet BS-396892

Insert--Handle

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Handle Rewind Starter

$4.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-280973

Washer--Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

69A

Cub Cadet BS-224322

Washer--Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-224321

Retainer--Rewind Starter

$8.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-492833

Pawl--Starter

$4.99

$

Usually ships in 2-12 days

0

461

Cub Cadet BS-262626

Pin--Starter

$4.49

$

Usually ships in 2-12 days

0

515

Cub Cadet BS-262625

Spring--Torsion

$6.49

$

Usually ships in 2-12 days

0

608

Cub Cadet BS-493295

Starter Ass'y.--Rewind
(Superseded to BS-497598)

$75.99

$

In Stock, only 2 left!

0

Cub Cadet BS-94128

Screw--Hex Hd.
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet BS-92987

Nut--Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

1016

Cub Cadet BS-224278

Cover--Rewind Starter

$3.49

$

Usually ships in 2-12 days

0
