108 C (114-108C100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Air Cleaner, Brake & Carburetor Bracket Ass'y Parts Diagram

Walk-Behind Mower Engine

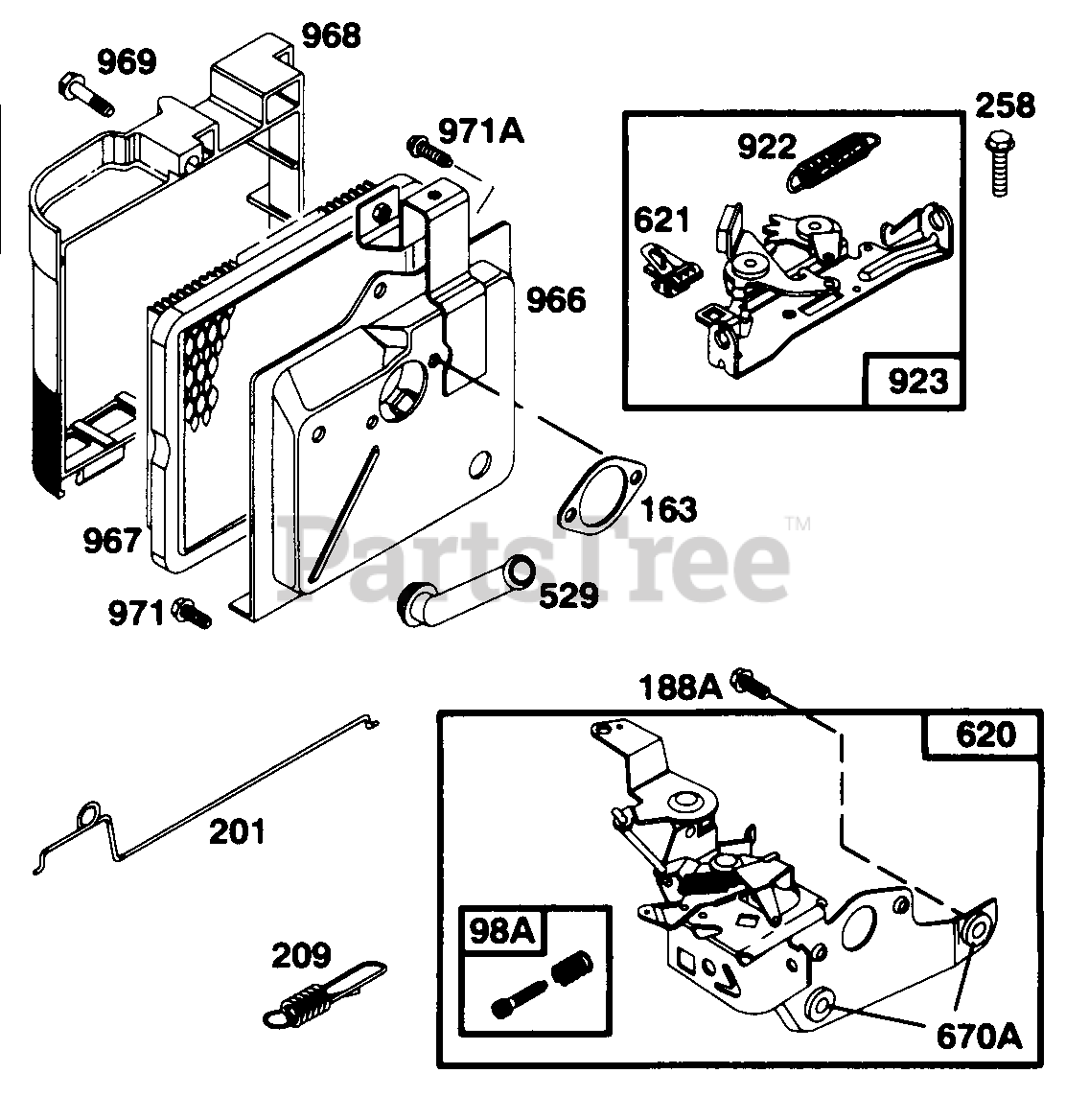

B&S 5 HP Air Cleaner, Brake & Carburetor Bracket Ass'y Parts Diagram

  • Title

98A

Cub Cadet BS-493280

Screw Ass'y.-Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

163

Cub Cadet BS-272296

Gasket Air Cleaner

$4.99

$

In Stock, only 1 left!

0

188A

Cub Cadet BS-94644

Screw-Hex Hd.
(Superseded to BS-690877)

$3.99

$

In Stock, only 3 left!

0

201

Cub Cadet BS-262579

Link-Governor
(Superseded to BS-691829)

$8.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-262659

Spring-Governor

$10.99

$

Usually ships in 2-12 days

0

258

Cub Cadet BS-94512

Screw-Hex Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-280943

Grommet-Breather

$8.49

$

In Stock, only 1 left!

0

620

Cub Cadet BS-493894

Bracket Assembly-Carburetor Control

Note: (Remote Control)

$81.99

$

In Stock, only 1 left!

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

670A

Cub Cadet BS-493823

Spacer-Carburetor Bracket

Note: (Includes 2)

$6.49

$

In Stock, only 1 left!

0

922

Cub Cadet BS-262640

Spring-Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-493442

Brake Assembly
(Superseded to BS-796387)

$

$

Not available

966

Cub Cadet BS-494735

Base Air Cleaner

$

$

Not available

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-281069

Cover-Air Cleaner
(Superseded to BS-692298)

$27.99

$

In Stock, only 1 left!

0

969

Cub Cadet BS-94173

Screw-Cover Mtg.
(Superseded to BS-690670)

$5.99

$

In Stock, only 4 left!

0

971

Cub Cadet BS-94269

Screw-Air Cleaner

$

$

Not available

971A

Cub Cadet BS-94121

Screw-Base to Carb.
(Superseded to BS-692523)

$7.49

$

In Stock, only 2 left!

0
