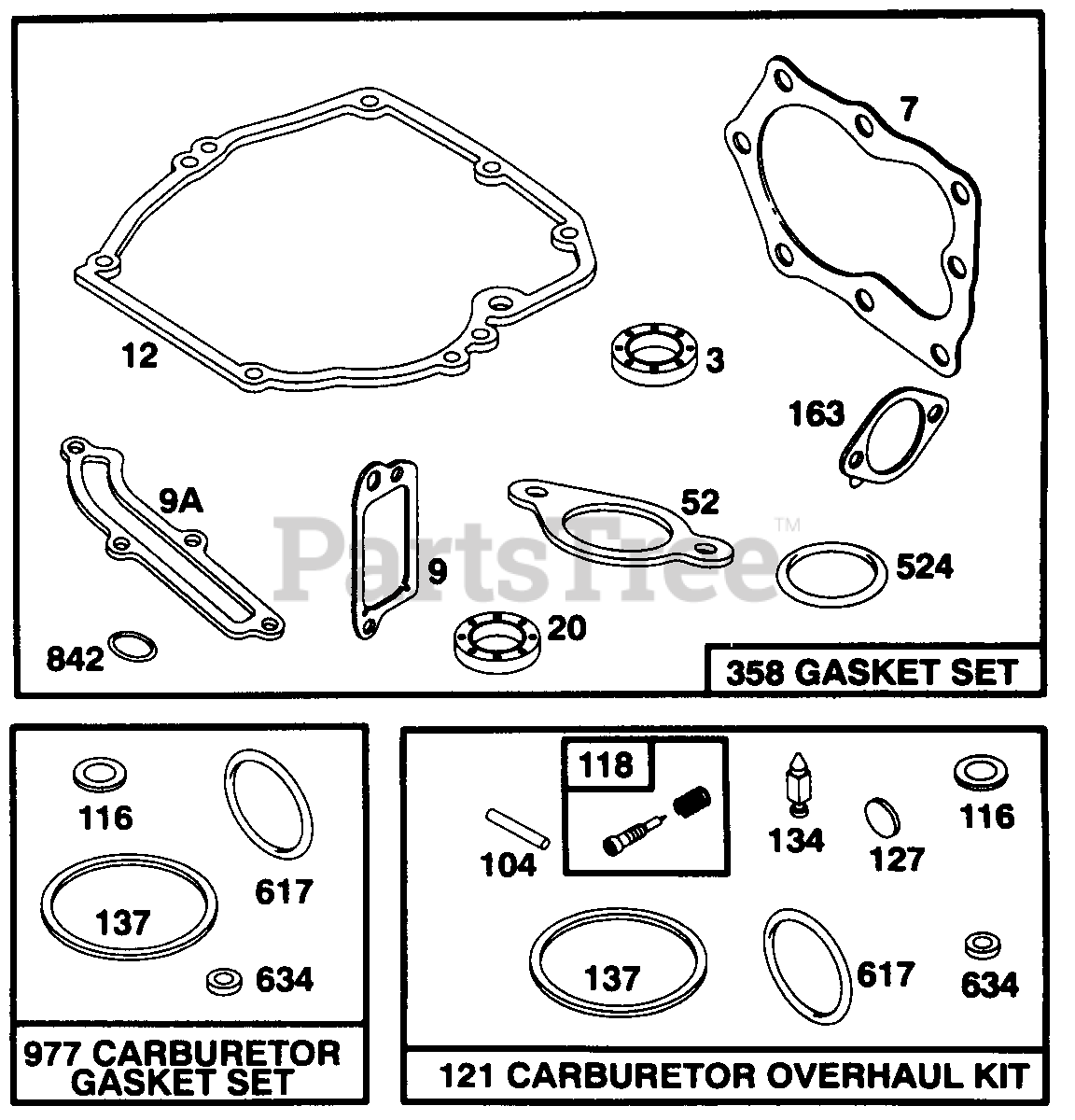

108 C (113-108C100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 5 HP Gasket Set, Carburetor Gasket Set & Carburetor Overhaul Kit Parts Diagram

Walk-Behind Mower Engine

B&S 5 HP Gasket Set, Carburetor Gasket Set & Carburetor Overhaul Kit Parts Diagram

  • Title
3

Cub Cadet BS-299819

Seal--Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

7

Cub Cadet BS-272200

Gasket--Cylinder Hd.

$

$

Not available

9

Cub Cadet BS-272481

Gasket--Valve Cover
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

9A

Cub Cadet BS-272238

Gasket--Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-272198

Gasket--Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-399781

Seal--Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-272199

Gasket--Intake Elbow
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-231371

Pin--Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

116

Gasket--Sealing

Note: (Sold in Kit

$

$

Not available

118

Cub Cadet BS-493765

Valve and Spring--Needle

Note: Included in Carburetor Gasket Set--Part No. BS-490937

$14.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-493762

Carburetor Overhaul Kit
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

127

Plug--Welch

Note: (Sold in Kit Only)

$

$

Not available

134

Cub Cadet BS-398188

Valve--Inlet

Note: (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket--Bowl

Note: (Sold in Kit Only)

$

$

Not available

163

Cub Cadet BS-272296

Gasket--Air Cleaner

$4.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-493263

Gasket Set

$

$

Not available

524

Cub Cadet BS-280393

Seal--Filler Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

617

Cub Cadet BS-270344

Seal--Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer--Shaft

Note: (Sold in Kit Only)

$

$

Not available

842

Cub Cadet BS-280966

Seal--O-Ring
(Superseded to BS-692296)

$4.99

$

In Stock, only 1 left!

0

977

Cub Cadet BS-490937

Gasket Set--Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0
