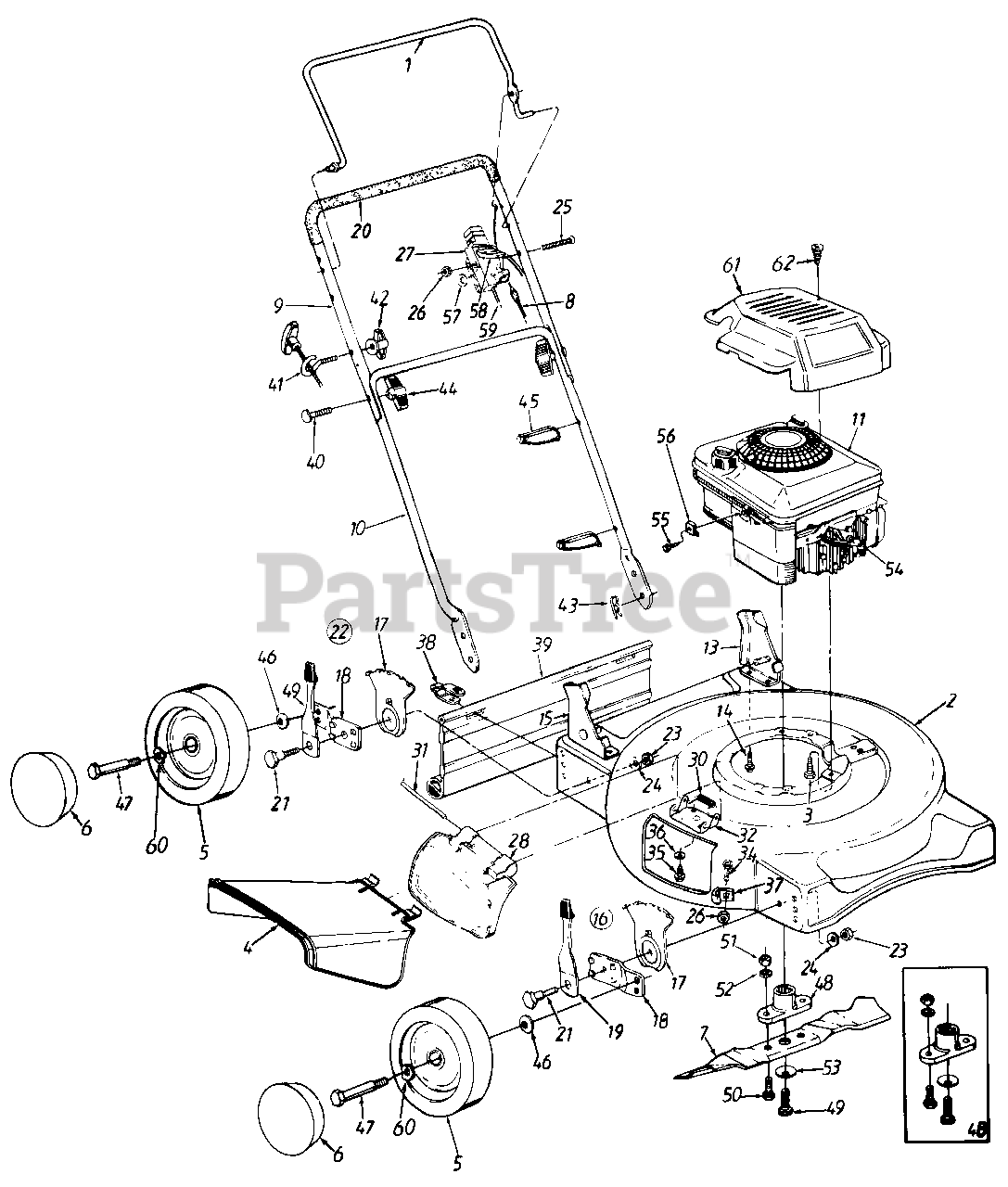

108 C (113-108C100) - Cub Cadet Walk-Behind Mower (1993) Rotary Mower Parts Diagram

Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 682-0016

20" Deck Assembly

$

$

Currently unavailable

3

Cub Cadet 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 631-1407

Side Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

5

Cub Cadet 734-1517B

Wheel Ass'y. Comp.

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0484

Wheel Bearings
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

7

Cub Cadet 742-0720

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

8

Cub Cadet 746-0550

Control Cable-39" (Green)
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

9

Cub Cadet 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

Cub Cadet 749-0538C-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

11

Engine

$

$

Not available

13

Cub Cadet 12935B

Handle Brkt. Ass'y.-L.H.

$

$

Not available

14

Cub Cadet 710-0603

Hex B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 12936B

Handle Brkt. Ass'y.-R.H.

$

$

Not available

16

Cub Cadet 14578

Hgt. Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

17

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 15262B

Small Wheel Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

20

Cub Cadet 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-0507B

Shoulder Bolt .5" Dia. x .434"

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 14579

Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

23

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0356

Bell-Wash. .39" I.D.
(Superseded to 936-0356)

$

$

Not available

25

Cub Cadet 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

26

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

27

Cub Cadet 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

28

Cub Cadet 682-7000

Mulching Plug Ass'y.

Note: (Incl. Ref. 30, 31, 32)

$

$

Not available

30

Cub Cadet 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 782-7006

Plug Adapter

Variations

Cub Cadet 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 782-7009

Chute Stop Brkt.

Variations

Cub Cadet 782-7009-0637

CHUTE BRACKET STOP - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

39

Cub Cadet 731-1447

Rear Flap

$

$

Not available

40

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

42

Cub Cadet 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 714-0104

Int. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 720-0276

Handle Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

45

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

48

Cub Cadet 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

49

Cub Cadet 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.-Gr. 5

$3.99

$

In Stock, Qty 9

0

50

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

54

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

55

Cub Cadet 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

59

Cub Cadet 746-0842

Throttle Wire-51" (Red)
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0504

Wave-Wash.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

61

Cub Cadet 751B281191

Engine Shroud
(Superseded to 751B281440)

$

$

Not available

62

Cub Cadet 710-1256

Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0
