108 (2050210U) - Cub Cadet Garden Tractor Three Point Hitch & Drawbar Parts Diagram

Garden Tractor

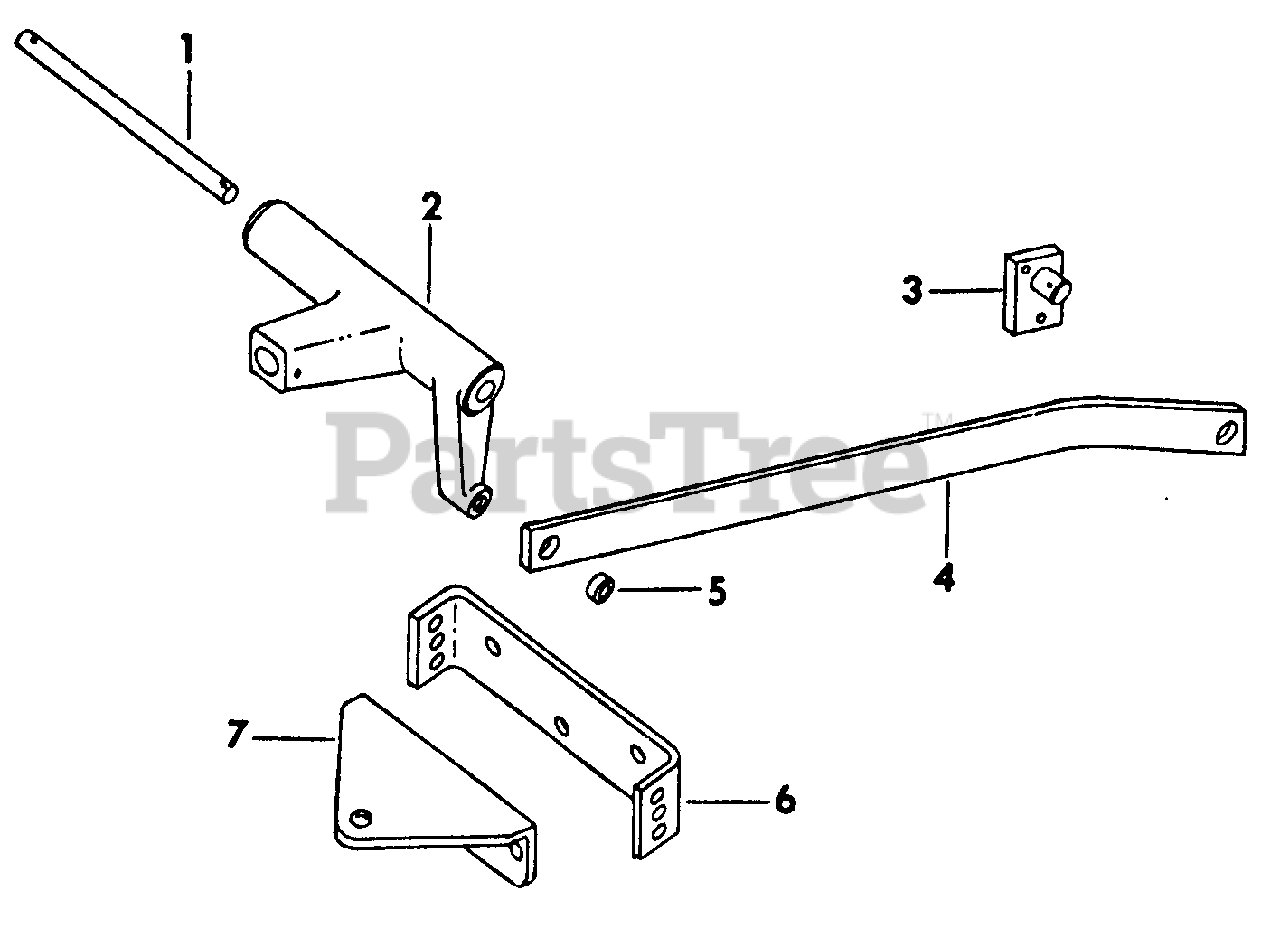

Three Point Hitch & Drawbar Parts Diagram

  • Title

1

Cub Cadet IH-547701-R1

Shaft, Lift Lever

$

$

Currently unavailable

Cub Cadet 714-0111

Pin, 3/32 X 7/8 Cot

$4.99

$

In Stock, Qty 13

0

2

Cub Cadet 719-3024

Lever, Lift

$

$

Not available

Screw, 1/2-13 X 1-3/8 Znd Hex Hd Cap Type 8

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-3003

Washer, 17/32 X 3/4 X 16 Ga C-Z

$

$

Not available

Cub Cadet 736-3013

Washer, 17/32 X 1 X 22 Ga C-Z

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 703-0398

Plate Assy, Lift Bar

$

$

Not available

Cub Cadet 714-0470

Pin, 3/32 X 1/4 Cot

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3063

Screw, 3/8-16 X 3/4 Znd Hex Hd Cap Type 8
(Superseded to 710-3119)

$6.99

$

In Stock, only 1 left!

0

4

Cub Cadet IH-545638-R3

Bar, Lift

$

$

Currently unavailable

5

Cub Cadet 711-3073

Spacer, Lift Bar

$

$

Not available

6

Cub Cadet 703-0400

Link, Lower Hitch
(Superseded to 703-0400-0498)

Variations

Cub Cadet 703-0400-0498

LINK-HITCH-LWR - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3005

Screw, 3/8-16 X 1-1/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet 710-3001

Screw, 3/8-16 X 7/8 Hex Hd Cap

$7.49

$

In Stock, Qty 9

0
