108 (2050209U) - Cub Cadet Garden Tractor Implement Handle & Connections Parts Diagram

Garden Tractor

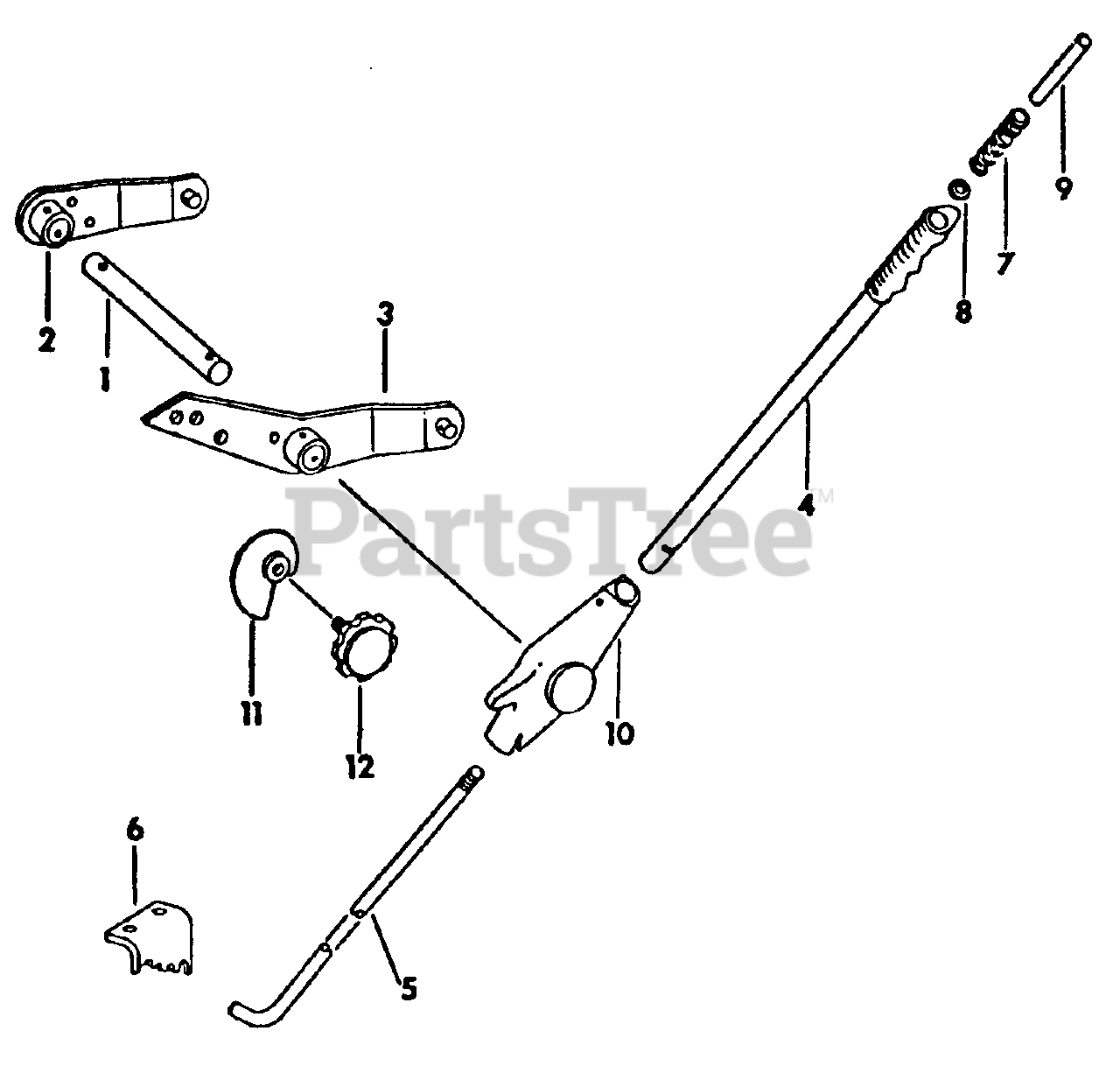

Implement Handle & Connections Parts Diagram

  • Title

1

Cub Cadet IH-544194-R1

Rockshaft

$

$

Not available

2

Cub Cadet IH-544195-R1

Arm Assy, Lift LH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-545627-R1

Arm Assy, Lift RH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$8.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-544208-R1

Handle Assy, Lift

$

$

Not available

Cub Cadet IH-401448-R1

Grip, Handle

$

$

Not available

Cub Cadet IH-401449-R1

Lock Assy, Release

$

$

Not available

5

Cub Cadet IH-549155-R1

Rod Assy, Handle Release

$

$

Not available

6

Cub Cadet 759-3039

Ratchet, Lift Handle

$

$

Not available

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Znd Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-21622-R1

Nut, 3/8-16 Znd Nylon Insert Lock

$

$

Currently unavailable

7

Cub Cadet 732-3005

Spring, Rod Return
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 736-3009

Retainer, Spring

$

$

Not available

9

Cub Cadet IH-401456-R2

Pin, Release Rod

$

$

Not available

10

Cub Cadet IH-544201-R1

Hub, Lift Handle

$

$

Not available

Cub Cadet IH-617942-R1

Pin, 5/16 X 2-1/4 Hv Coiled Spring

$

$

Not available

Cub Cadet IH-19689-R1

Pin, 1/4 X 1-1/4 Coiled Spring
(Superseded to IH-19689-R2)

$

$

Not available

11

Cub Cadet IH-544202-R2

Cam Assy, Lift Handle Stop

$

$

Currently unavailable

12

Cub Cadet IH-544205-R1

Knob, Torque

$

$

Not available

Cub Cadet IH-178374-R1

Washer, 17/32 X 1-1/8 X 18 Ga C-Z

$

$

Not available
