10796 - Lawn-Boy Insight Platinum Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ELECTRICAL START ASSEMBLY Parts Diagram

Insight Platinum Walk-Behind Mower

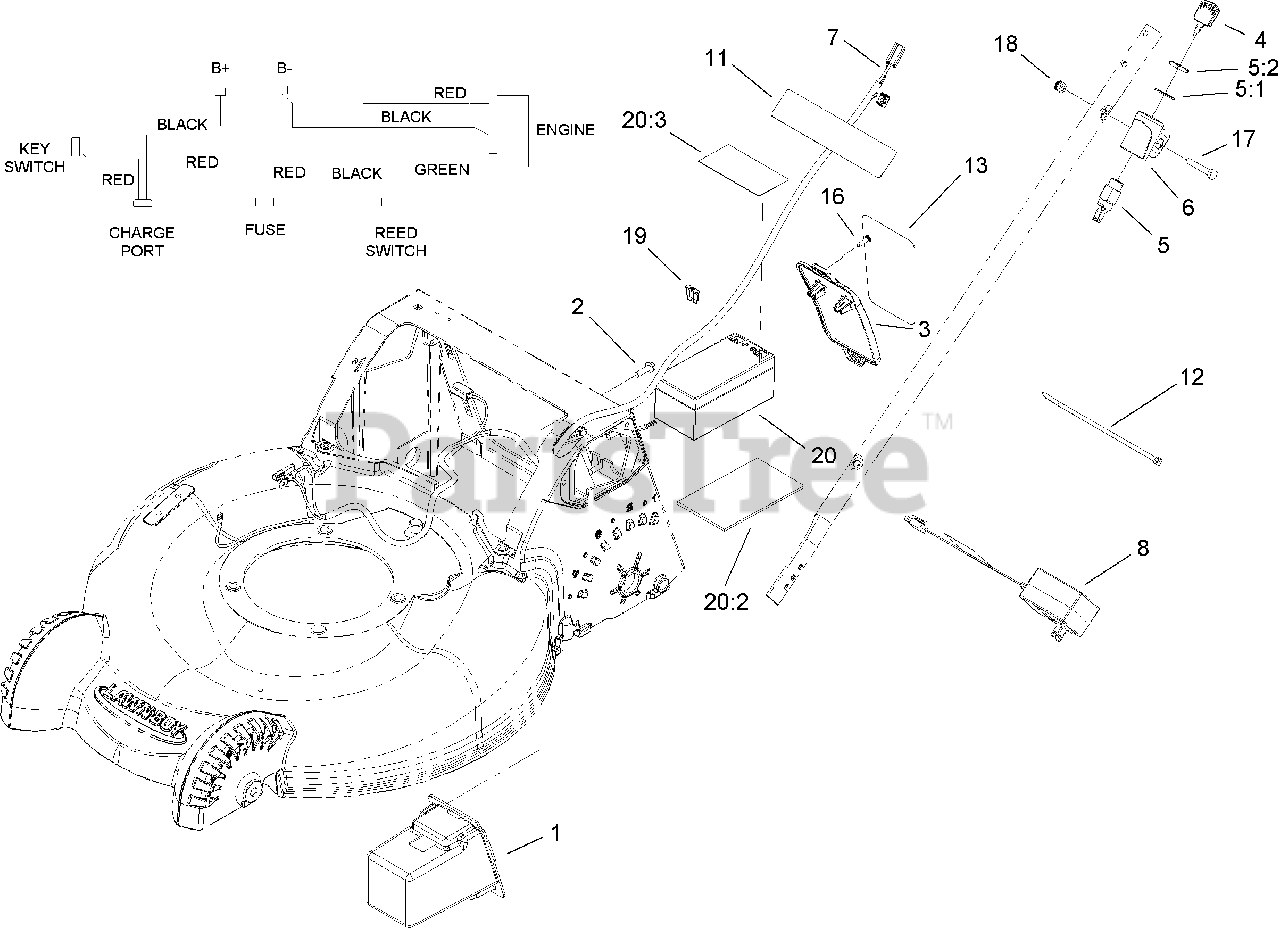

ELECTRICAL START ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107-3932

BOX-BATTERY

$19.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0981

COVER-BATTERY

$13.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0

5

Lawn-Boy 46-5780

SWITCH-STARTER

$29.99

$

In Stock, Qty 7

0

5:1

Lawn-Boy 3254-5

WASHER-TOOTH

$1.49

$

In Stock, Qty 20+

0

5:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

6

Lawn-Boy 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, Qty 11

0

7

Lawn-Boy 108-0982

HARNESS-WIRE

$144.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$41.99

$

In Stock, Qty 18

0

11

Lawn-Boy 104-7953

DECAL-HARNESS

$9.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 108-0992

DECAL-INSTRUCTION, BATTERY

$7.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

18

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

19

Lawn-Boy 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

20

Lawn-Boy 108-9358

BATTERY

$115.99

$

In Stock, only 2 left!

0

20:2

Lawn-Boy 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 3 left!

0

20:3

Lawn-Boy 112-8763

DECAL-BATTERY TERMINAL

$3.99

$

Usually ships in 3-6 days

0
