10795 - Lawn-Boy Insight Platinum Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FRONT END AND TUNNEL ASSEMBLY Parts Diagram

Insight Platinum Walk-Behind Mower

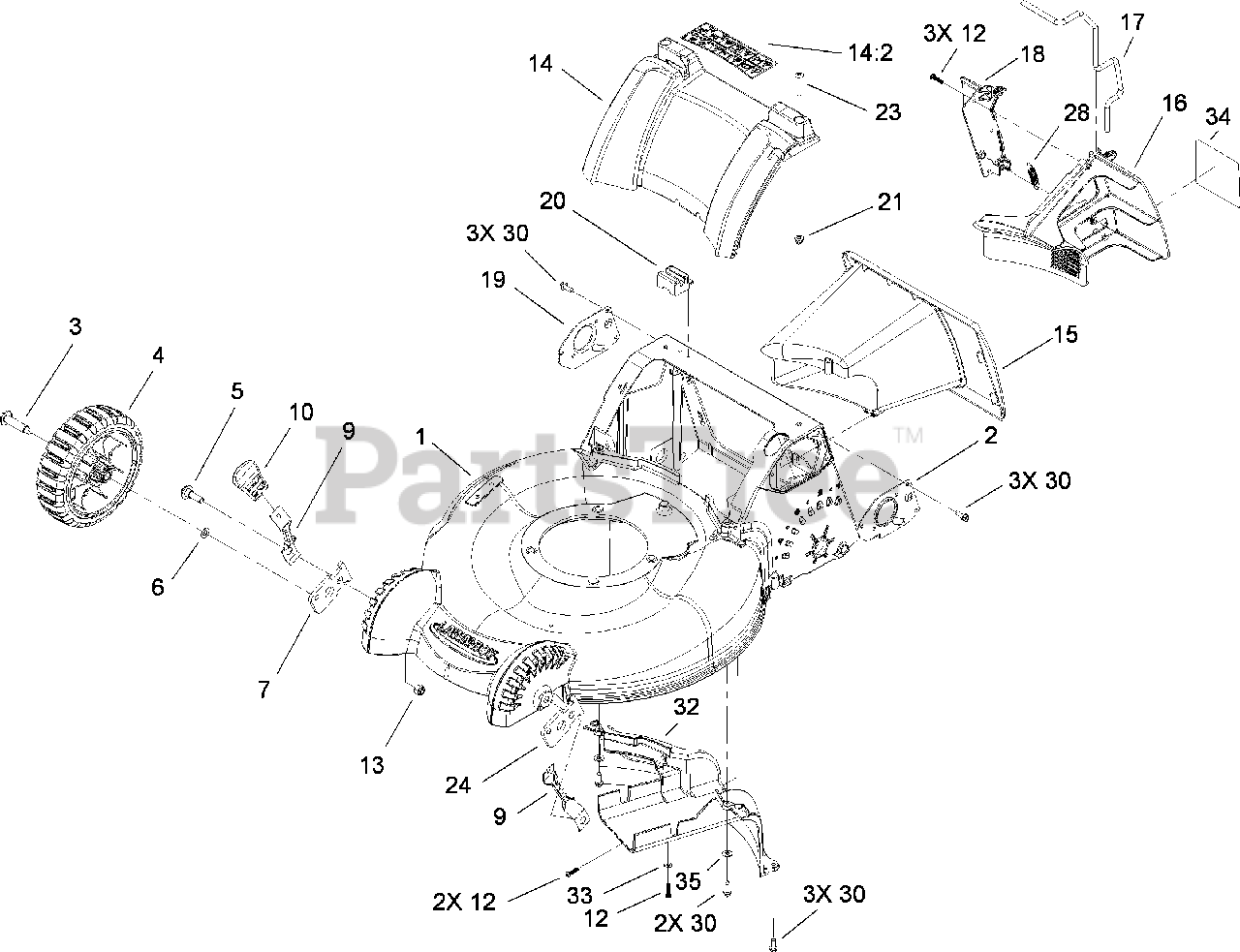

FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-9419

HOUSING ASM

$

$

Not available

2

Lawn-Boy 110-9415-03

MOUNT-HANDLE, LH

$12.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 107-3898

8 INCH WHEEL ASM
(Superseded to 117-4103)

$38.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 110-9421

ARM-PIVOT, RH

$19.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 110-9434

ARM-SPRING, FRONT

$11.99

$

In Stock, Qty 5

0

10

Lawn-Boy 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 115-3177

COVER-REAR

$53.99

$

Usually ships in 3-6 days

0

14:2

Lawn-Boy 114-2820

DECAL-WARNING

$7.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 110-9455

TUNNEL

$46.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 110-9446

PLUG-MULCH, LH

$25.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 110-9448

LATCH-PLUG, MULCH

$42.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 110-9447

PLUG-MULCH, RH

$11.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 110-9416-03

MOUNT-HANDLE, RH

$12.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 110-1786

MODULE-SWITCH

$67.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 110-9420

ARM-PIVOT, LH

$19.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 110-9458

SPRING-EXTENSION

$3.99

$

In Stock, Qty 7

0

30

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 110-9468

MULCH PLUG ASM

Note: Not illustrated

$68.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 110-9413

BAFFLE-REAR

$35.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

34

Lawn-Boy 110-9457

DECAL-PLUG, MULCH

$10.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
