10788 - Troy-Bilt Brush Cutter (SN: H007508 - H010507) CLUTCH AND CLUTCH HOUSING ASSEMBLY Parts Diagram

Brush Cutter

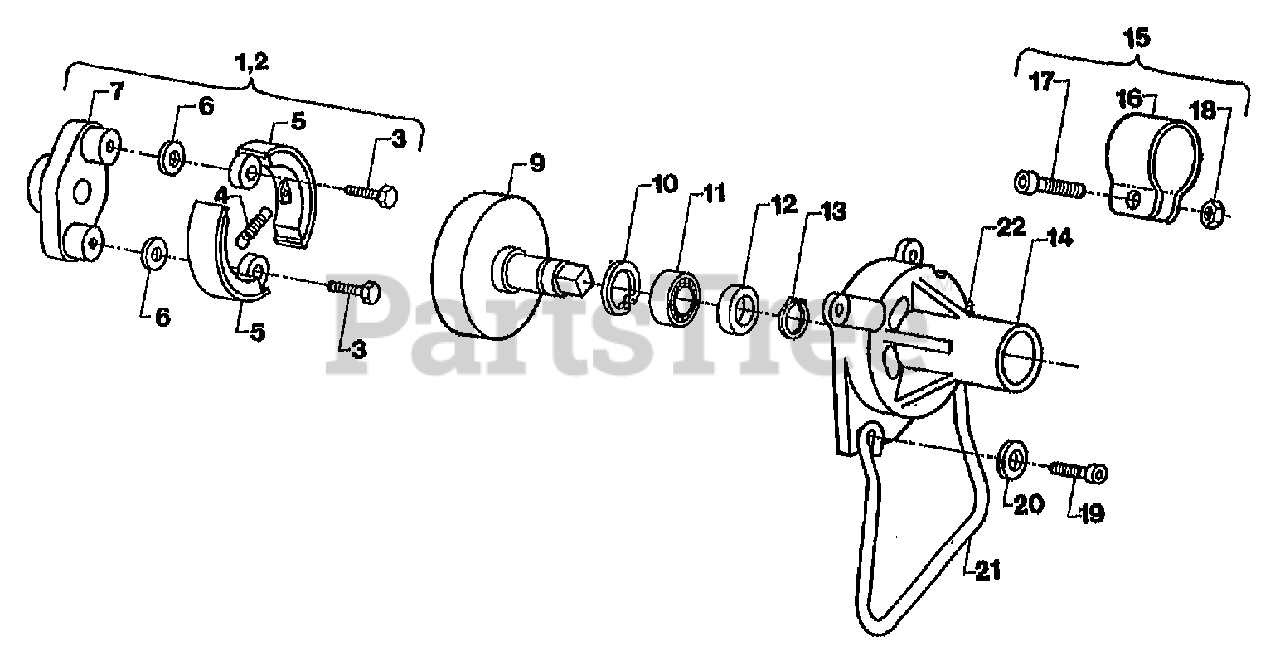

CLUTCH AND CLUTCH HOUSING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt H211145

ASSM-CLUTCH (COMPLETE)(INCL. 3-7)

$

$

Currently unavailable

2

Troy-Bilt H211318

ASSM-CLUTCH (COMPLETE)(INCL. 3-6)

$

$

Currently unavailable

3

0

SCREW, HEX. HD., CLUTCH

$

$

Not available

?4

Troy-Bilt H211147

SPRING (GREEN)-CLUTCH

$

$

Currently unavailable

5

0

SHOE, CLUTCH

$

$

Not available

6

0

WASHER, FLAT 1/4 ID CLUTCH

$

$

Not available

7

Troy-Bilt H209983

ROTOR THREADED-CLUTCH

$

$

Currently unavailable

?8

Troy-Bilt H212590

ASSM-CLUTCH HOUSING (INCL. 9-15)

$

$

Currently unavailable

9

Troy-Bilt H209291

ASSM-DRUM & ARBOR

$

$

Currently unavailable

10

Troy-Bilt H205417

RING-RETAINING

$

$

Currently unavailable

11

Troy-Bilt H208960

BEARING

$

$

Currently unavailable

12

Troy-Bilt H206415

SPACER

$

$

Currently unavailable

13

Troy-Bilt H206395

RING-RETAINING

$

$

Currently unavailable

14

Troy-Bilt H212576

HSG-CLUTCH W/BEARING (INCL. 11-13)

$

$

Currently unavailable

15

Troy-Bilt H212972

KIT (INCL. 16-18)

$

$

Currently unavailable

16

0

CLAMP

$

$

Not available

17

0

SCREW, 1/4"-20X3/4" SOCKET HD CAP

$

$

Not available

18

0

NUT, 1/4"-20 CLAMP

$

$

Not available

19

Troy-Bilt H200734

SCR-HXSKT 1/4-20X.75

$

$

Currently unavailable

20

Troy-Bilt H200662

WASHER-MOTOR LEG

$

$

Currently unavailable

21

Troy-Bilt H209605

LEG-MOTOR

$

$

Currently unavailable

22

Troy-Bilt H212578

GREASE FIT.THD.

$

$

Currently unavailable

0

ENGINE, TECUMSEH-LAUSON, 1.6HP (TC-200-2001B)

$

$

Not available
