10780 - Lawn-Boy Insight Platinum Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HANDLE ASSEMBLY Parts Diagram

Insight Platinum Walk-Behind Mower

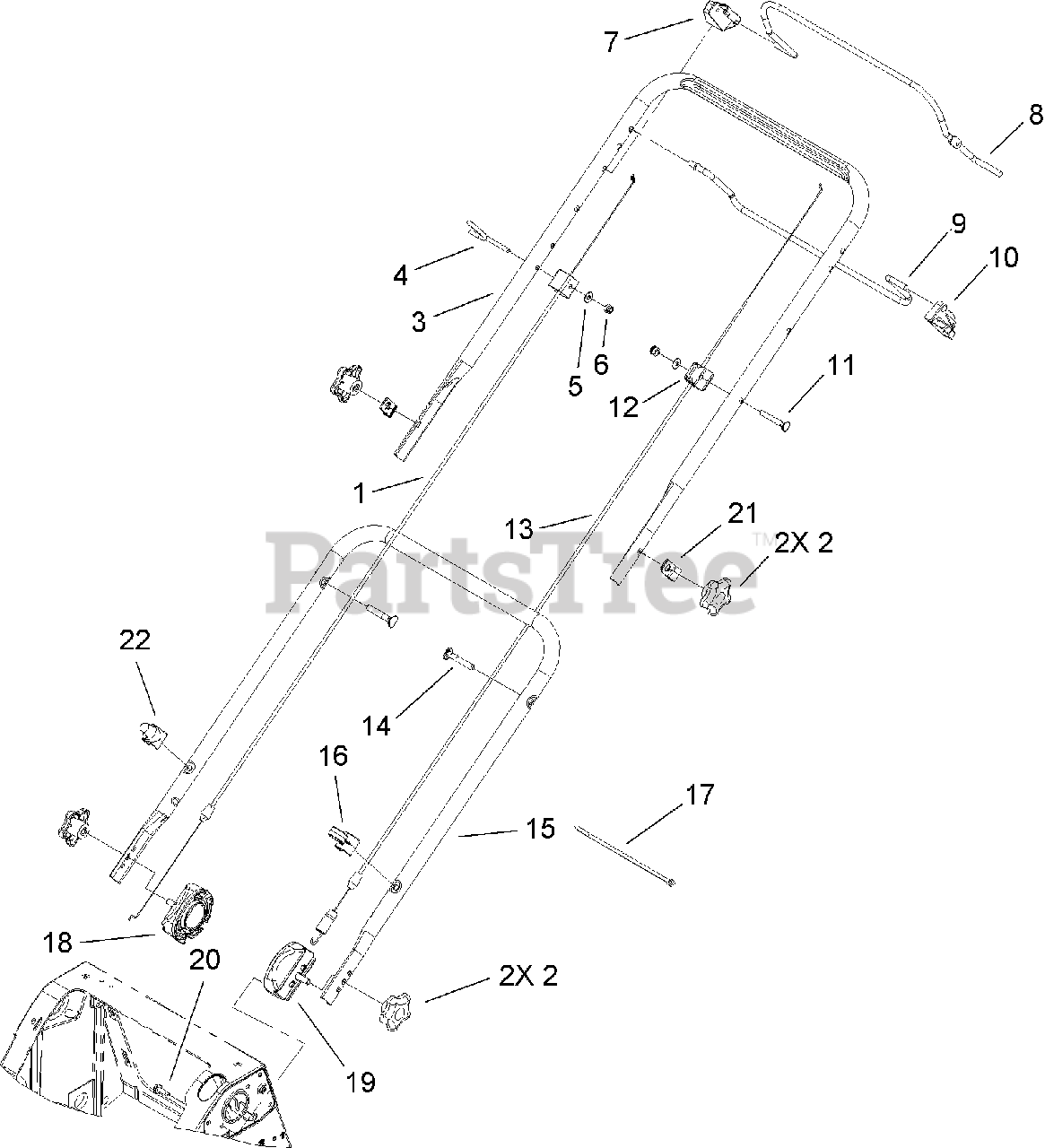

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 104-8677

Cable-Brake

$18.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 12

0

3

Lawn-Boy 104-8680-05

Handle-Upper

$64.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 106-8330

GUIDE-ROPE

$5.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 107-0757

STOP-PIVOT

$4.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 105-6800-03

Bail-Brake

$22.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 105-1837-03

Bail-Control

$39.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 104-8682

Stop-Pivot

$17.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 95-4453

SCREW

$3.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 5

0

13

Lawn-Boy 110-9485

CABLE-TRACTION

$26.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 11

0

15

Lawn-Boy 110-1828-05

HANDLE-LOWER

$86.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 12

0

17

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

18

Lawn-Boy 108-1042

RH HANDLE MOUNT ASM
(Superseded to 119-7021)

$18.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 108-1043

LH HANDLE MOUNT ASM
(Superseded to 119-7021)

$18.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 2412-113

CLAMP

$2.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 108-0994

GUIDE-ROPE, LOWER
(Superseded to 117-4141)

$13.99

$

In Stock, only 4 left!

0
