10762 B - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) SHROUD-FUEL/OIL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

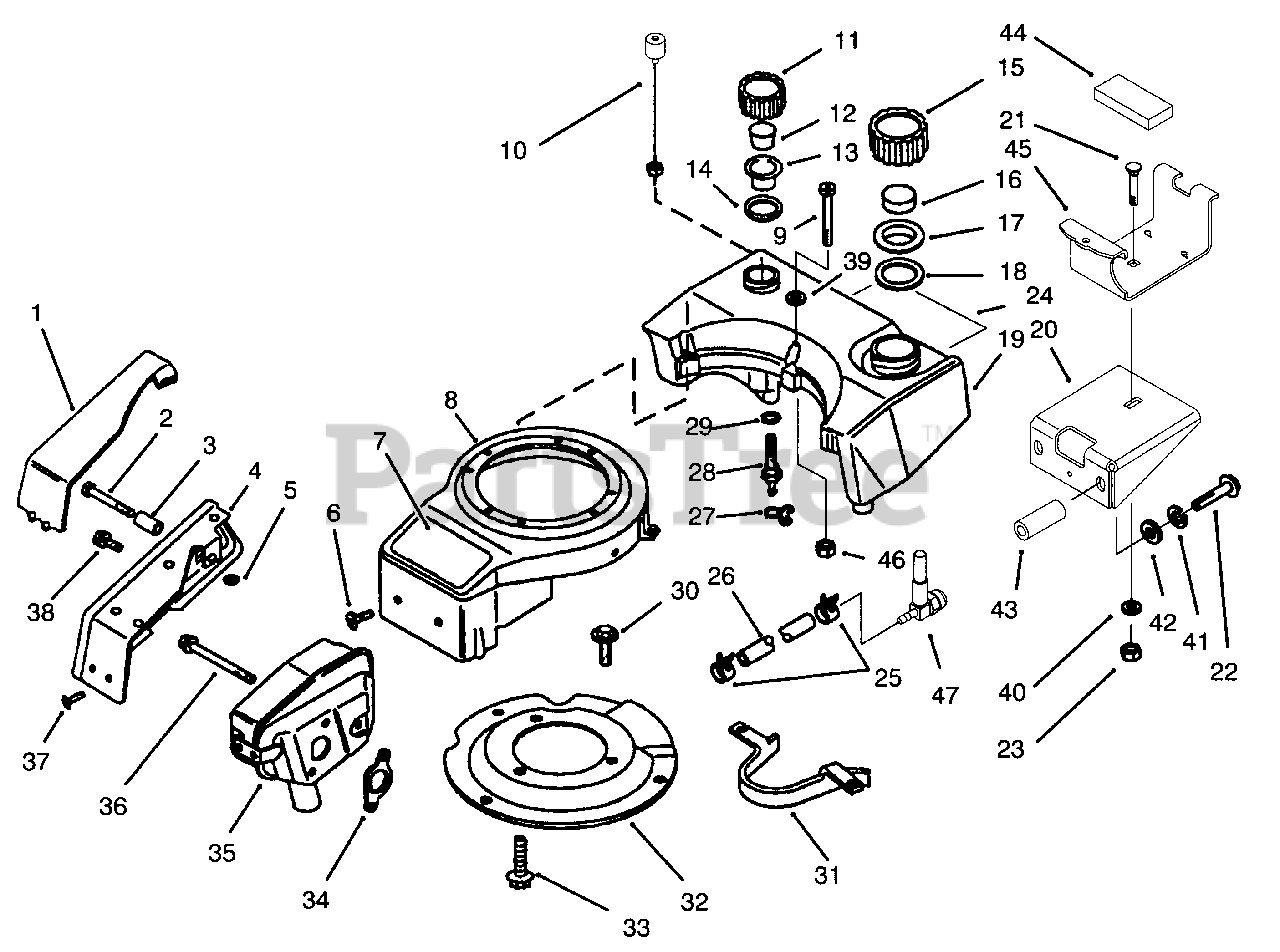

SHROUD-FUEL/OIL TANK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 613378

Cover-Muffler

$

$

Not available

2

Lawn-Boy 613372

Screw-Muffler Guard

$

$

Not available

3

Lawn-Boy 613371

Spacer-Muffler Guard

$

$

Not available

4

Lawn-Boy 684435

Assembly-Muffler Guard (Incl. Ref. No. 1 & 5)

$253.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613329

Pushnut

$2.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

$1.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 92-8832

Decal-Engine

$

$

Not available

8

Lawn-Boy 93-1219

Assy-Shroud (Incl. Ref. No. 7)

$

$

Not available

9

Lawn-Boy 3250-47

Screw-Fuel Tank

$

$

Not available

10

Lawn-Boy 93-1222

Switch-Low Oil

$

$

Not available

Lawn-Boy 705137

Nut-Oil Switch

Note: Not Illustrated

$

$

Not available

11

Lawn-Boy 684105

Assembly-Oil Cap (Incl. Ref. No 12-14)

$

$

Not available

12

Lawn-Boy 614274

Baffle

$

$

Not available

13

Lawn-Boy 614272

Cover-Baffle

$

$

Not available

14

Lawn-Boy 613313

Gasket

$

$

Not available

15

Lawn-Boy 684104

Assembly-Fuel Cap (Incl. Ref. No. 16-18)

$

$

Not available

16

Lawn-Boy 609150

Baffle

$6.49

$

In Stock, Qty 11

0

17

Lawn-Boy 614271

Cover-Baffle

$5.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 613311

Gasket

$

$

Not available

19

Lawn-Boy 93-0325

Assembly-Fuel/Oil Tank (Incl. Ref. #10,19,20 24,28-29,43-45,47)
(Superseded to 93-1208)

$

$

Not available

20

Lawn-Boy 93-1203

Bracket-FuelTank

$

$

Not available

21

Lawn-Boy 3229-2

Bolt-Carriage

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 3274-40

Screw-Bracket To Engine

$6.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 3296-8

Nut

$1.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 93-6666

Decal-Fuel Tank

$

$

Not available

25

Lawn-Boy 613489

Clamp-Fuel Line

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 613531

Fuel Line

$

$

Not available

27

Lawn-Boy 613516

Clamp-Oil Hose

$

$

Not available

28

Lawn-Boy 684336

Assembly-Oil Fitting (Incl. Ref. No. 29)

$

$

Not available

29

Lawn-Boy 613948

O-Ring

$

$

Not available

30

Lawn-Boy 611774

Screw-Mtg Plate/Hsg.

$4.49

$

In Stock, only 2 left!

0

31

Lawn-Boy 613557

Snubber-Belt

$

$

Not available

32

Lawn-Boy 613206

Plate-Engine Mounting

$147.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613483

Screw-Mtg Plate To Eng.

$

$

Not available

34

Lawn-Boy 613266

Gasket-Exhaust

$

$

Not available

35

Lawn-Boy 684579

Muffler

$

$

Not available

36

Lawn-Boy 613282

Screw-Muffler

$

$

Not available

37

Lawn-Boy 613576

Screw-Muffler Guard

$

$

Not available

38

Lawn-Boy 700056

Screw-Muffler Guard

$

$

Not available

39

Lawn-Boy 3256-14

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 3253-31

Washer-Lock
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 3256-66

Washer-Flat

$

$

Not available

43

Lawn-Boy 93-1206

Spacer

$

$

Not available

44

Lawn-Boy 93-1205

Mount-Fuel Tank

$

$

Not available

45

Lawn-Boy 93-1207

Saddle-Fuel Tank

$

$

Not available

46

Lawn-Boy 3296-2

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

47

Lawn-Boy 93-0326

Valve-Fuel Shut-Off

$

$

Not available
