10762 B - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

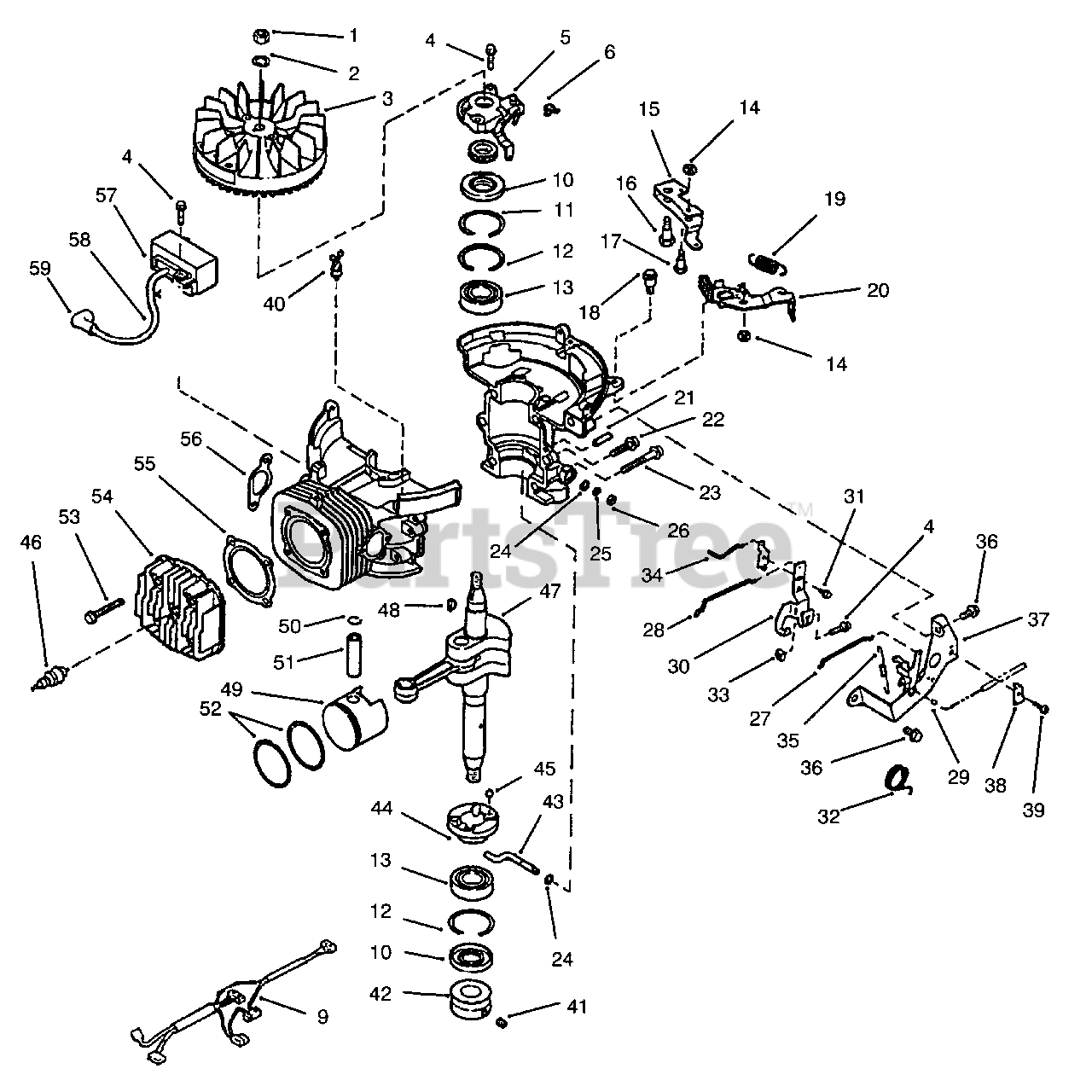

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

2

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 684023

Flywheel

$

$

Not available

4

Lawn-Boy 613208

Screw

$2.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 684275

Oil Pump Kit w/Oil Lines (Incl. Ref. No. 6)

$

$

Not available

6

Lawn-Boy 613516

Clamp-Oil Line

$

$

Not available

9

Lawn-Boy 684673

Wire Harness

$

$

Not available

10

Lawn-Boy 613182

Oil Seal-Crankshaft

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613183

Ring-Retaining

$

$

Not available

12

Lawn-Boy 613265

Ring-Retaining

$

$

Not available

13

Lawn-Boy 684022

Bearing-Crankshaft

$

$

Not available

14

Lawn-Boy 602315

Nut

$4.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 613390

Brake Actuator

$

$

Not available

16

Lawn-Boy 614032

Shoulder Bolt

$33.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 613360

Shoulder Bolt

$

$

Not available

18

Lawn-Boy 613756

Shoulder Bolt

$

$

Not available

19

Lawn-Boy 613386

Brake Spring

$9.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 684365

Brake & Switch

$

$

Not available

21

Lawn-Boy 300402

Pin-Taper

$

$

Not available

22

Lawn-Boy 613110

Screw

$

$

Not available

23

Lawn-Boy 613111

Screw

$5.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 613429

Washer-Governor Shaft

$

$

Not available

25

Lawn-Boy 613328

Ring-Retain.-Gov. Shaft

$5.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 613230

Seal-Oil,Governor Shaft

$

$

Not available

27

Lawn-Boy 613274

Rod-Choke

$

$

Not available

28

Lawn-Boy 613277

Rod-Throttle

$

$

Not available

29

Lawn-Boy 92-6397

Retainer-Throttle Wire

$

$

Not available

30

Lawn-Boy 684437

Kit-Gov. & Oil Pump Lever(Incl. Ref. No. 31)

$

$

Not available

31

Lawn-Boy 613269

Screw

$2.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 613628

Spring-Torsion

$

$

Not available

33

Lawn-Boy 613336

Nut

$

$

Not available

34

Lawn-Boy 613276

Rod-Oil Pump Control

$

$

Not available

35

Lawn-Boy 614043

Spring-Governor

$

$

Not available

36

Lawn-Boy 613337

Screw

$

$

Not available

37

Lawn-Boy 684090

Assy.-Governor Bracket(Incl. Ref. No. 32)

$68.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 613388

Clamp-Throttle Cable
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 613387

Screw

$

$

Not available

40

Lawn-Boy 613683

Wire Tie

$4.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613227

Screw-Set,Engine Pulley
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 613228

Pulley-Engine

$

$

Not available

43

Lawn-Boy 613747

Shaft-Governor

$

$

Not available

44

Lawn-Boy 684465

Ramp-Governor

$

$

Not available

45

Lawn-Boy 613229

Ball-Governor

$

$

Not available

46

Lawn-Boy 614009

Spark Plug

$5.49

$

In Stock, only 3 left!

0

47

Lawn-Boy 683993

Crankshaft & Conn. Rod

$

$

Not available

48

Lawn-Boy 607199

Key

$5.49

$

In Stock, Qty 9

0

49

Lawn-Boy 684272

Assy-Piston & Ring (Std) (Incl. Ref. No. 50-52)

$

$

Not available

50

Lawn-Boy 613258

Ring-Retaining

$

$

Not available

51

Lawn-Boy 613148

Pin-Wrist

$

$

Not available

52

Lawn-Boy 684273

Ring Set (Standard)

$

$

Not available

52

Lawn-Boy 684309

Ring Set (0.020" Oversize)

$

$

Not available

53

Lawn-Boy 613233

Screw-Cyl. Head to Block

$4.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 613197

Head-Cylinder

$

$

Not available

55

Lawn-Boy 613382

Gasket-Head

$

$

Not available

56

Lawn-Boy 613266

Gasket-Exhaust

$

$

Not available

57

Lawn-Boy 684049

Module-C.D. Ignition(Incl. Ref. No. 58-59)
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

58

Lawn-Boy 684179

High Tension Lead & Cover(Incl. Ref. No. 59)

$32.99

$

In Stock, only 1 left!

0

59

Lawn-Boy 684698

Assy.-Cover & Terminal

$7.49

$

Usually ships in 3-6 days

0

Lawn-Boy 684276

Short Block (Incl. Ref. #10-13,21-26,41-47 & 49-56)

Note: Not Illustrated

$

$

Not available
