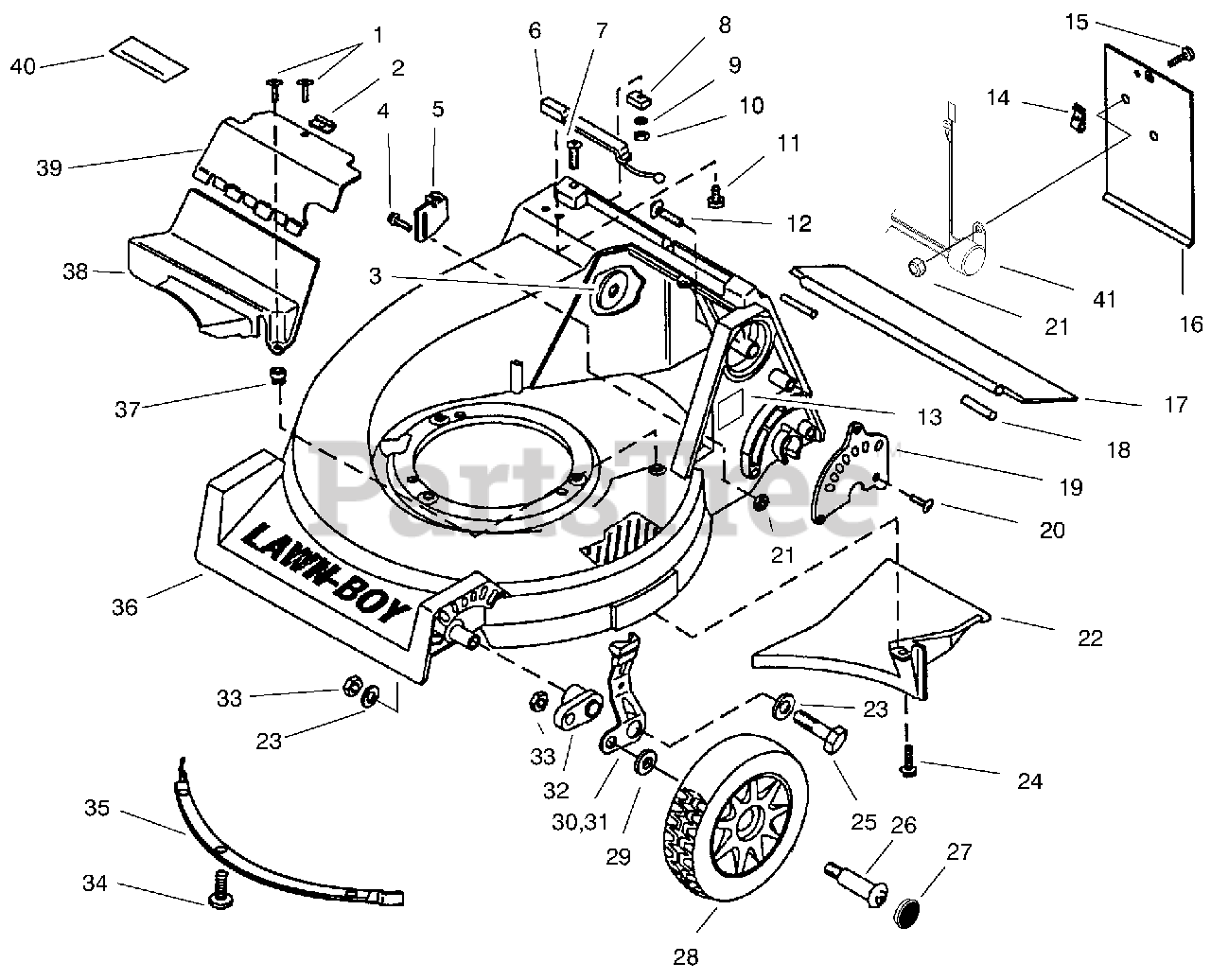

10761 B - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 613341

Nut-Speed

$

$

Not available

3

Lawn-Boy 613910

Washer
(Superseded to 5-3177)

$2.49

$

Usually ships in 3-6 days

0

$

$

Not available

5

Lawn-Boy 614522

Anchor-Cable

$

$

Not available

6

Lawn-Boy 684366

Switch Ass'y

$

$

Not available

7

$

$

Not available

8

$

$

Not available

9

Lawn-Boy 613625

Washer-Lock

$

$

Not available

$

$

Not available

11

Lawn-Boy 613749

Screw-Stainless

$

$

Not available

12

Lawn-Boy 613321

Bolt-Ribbed Neck

$

$

Not available

13

Lawn-Boy 66-2000

Decal-Noise

$

$

Not available

14

Lawn-Boy 613340

Nut-Speed

$2.49

$

Usually ships in 3-6 days

0

15

$

$

Not available

16

Lawn-Boy 613346

Door-Access

$

$

Not available

17

Lawn-Boy 92-9553

Shield-Trailing

$

$

Not available

18

$1.99

$

In Stock, Qty 6

0

19

$

$

Not available

20

Lawn-Boy 613381

Screw-Button Head

$5.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 12

0

22

Lawn-Boy 613289

Baffle-Chute

$

$

Not available

23

$2.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 46-6811

Screw-Hex Washer Hd.

$3.49

$

In Stock, only 3 left!

0

25

$

$

Not available

26

Lawn-Boy 614430

Bolt-Shoulder

$

$

Not available

27

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-8887

Wheel & Tire Assembly 8"

$

$

Not available

29

$14.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 684220

Knob & Spring

$

$

Not available

31

Lawn-Boy 684219

Knob&Spring

$

$

Not available

32

Lawn-Boy 613917

Arm-Height Adjustment

$106.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-59

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

34

Lawn-Boy 613925

Screw-Button Head

$

$

Not available

35

Lawn-Boy 613924

Baffle-Front

$

$

Not available

36

Lawn-Boy 16-6119

Housing-21" (Incl. Ref. #40 & 41)

$

$

Not available

37

Lawn-Boy 611380

Grommet

$

$

Not available

38

Lawn-Boy 92-9320

Cover-Drive Lower

$

$

Not available

39

Lawn-Boy 92-9319

Cover-Drive Upper

$

$

Not available

40

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 92-8824

Harness-Bag Interlock
(Superseded to 94-5819)

$

$

Not available
