10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) REAR AXLE ASSEMBLY Parts Diagram

Walk-Behind Mower

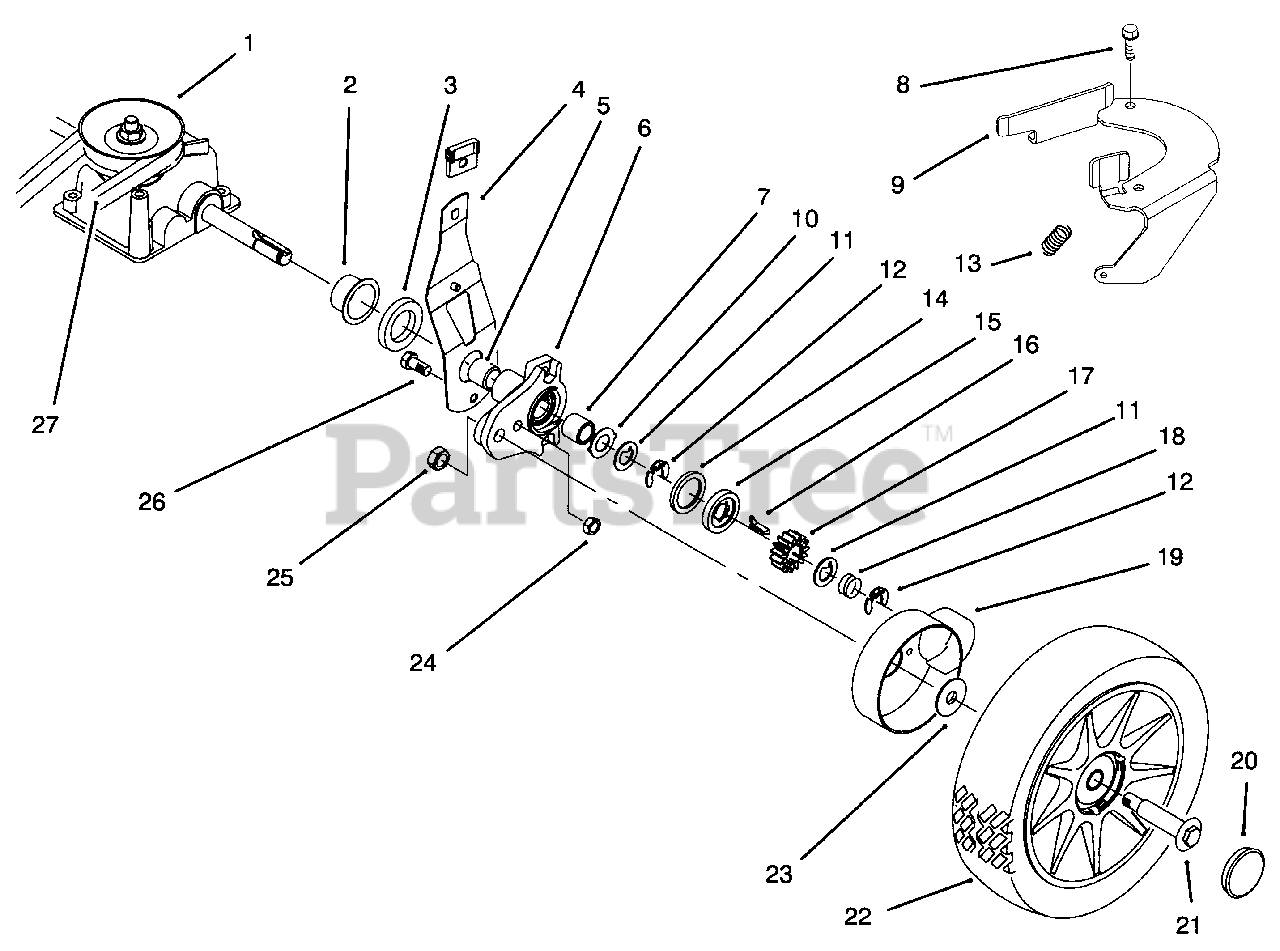

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-8815

Gear Case Assembly

$

$

Not available

2

Lawn-Boy 614443

Ring-Isolator

$

$

Not available

3

Lawn-Boy 614447

Spacer-Axle Shaft

$3.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 684618

Knob & Spring Assembly

$

$

Not available

5

$4.99

$

In Stock, Qty 6

0

6

Lawn-Boy 92-7746

Arm-Height Adjustment

$50.99

$

In Stock, only 2 left!

0

7

$6.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 49-2040

Screw-Hex Hd. Cap

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-8880

Guide-Belt

$

$

Not available

10

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 65-4740

Washer-Thrust Keyed

$2.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 6

0

13

Lawn-Boy 614529

Spring-Extension

$

$

Not available

14

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

15

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 66-6050

Key-Rocking L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Lawn-Boy 66-6040

Key-Rocking R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 12

0

17

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

18

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 614427

Cover-Wheel
(Superseded to 94-1609)

$10.99

$

In Stock, Qty 5

0

20

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 614430

Bolt-Shoulder

$

$

Not available

22

Lawn-Boy 92-8813

Wheel & Tire Assembly 8"

$

$

Not available

23

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 3296-59

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

26

Lawn-Boy 32144-85

Screw-Tapping

$1.99

$

In Stock, Qty 20+

0

27

$

$

Not available
