10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

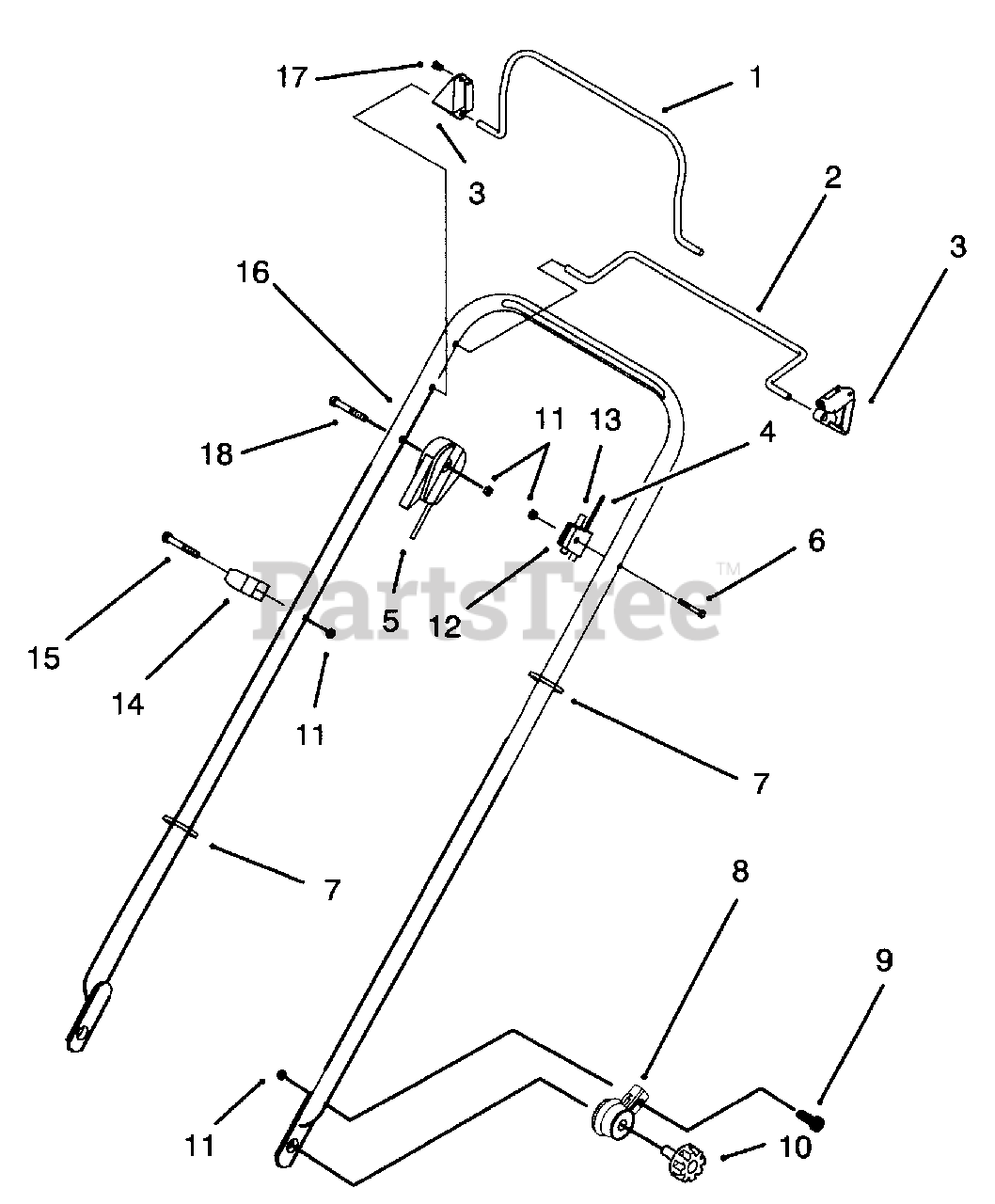

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-8804

Bail-Brake Int'l

$102.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-8805

Bail-SP Control Int'l

$

$

Not available

3

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

4

Lawn-Boy 92-9330

Cable-Brake

$82.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 92-9329

Cable-Throttle

$

$

Not available

6

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 9

0

7

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

8

Lawn-Boy 92-9321

Handle-Knuckle

$

$

Not available

9

Lawn-Boy 32108-59

Screw-Pan Hd.

$

$

Not available

10

Lawn-Boy 613358

Knob-Handle Mount

$

$

Not available

11

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 46-6980

Support-Cable

$15.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-9323

Cable-Traction

$115.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

15

Lawn-Boy 321-53

Screw-Hex Hd. Cap
(Superseded to 33115-035)

$2.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-8801

Handle-Int'l

$

$

Not available

17

Lawn-Boy 3290-409

Rivet-Pop

$0.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 321-48

Screw-Hex Hd. Cap

$1.99

$

In Stock, only 2 left!

0
