10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

Walk-Behind Mower

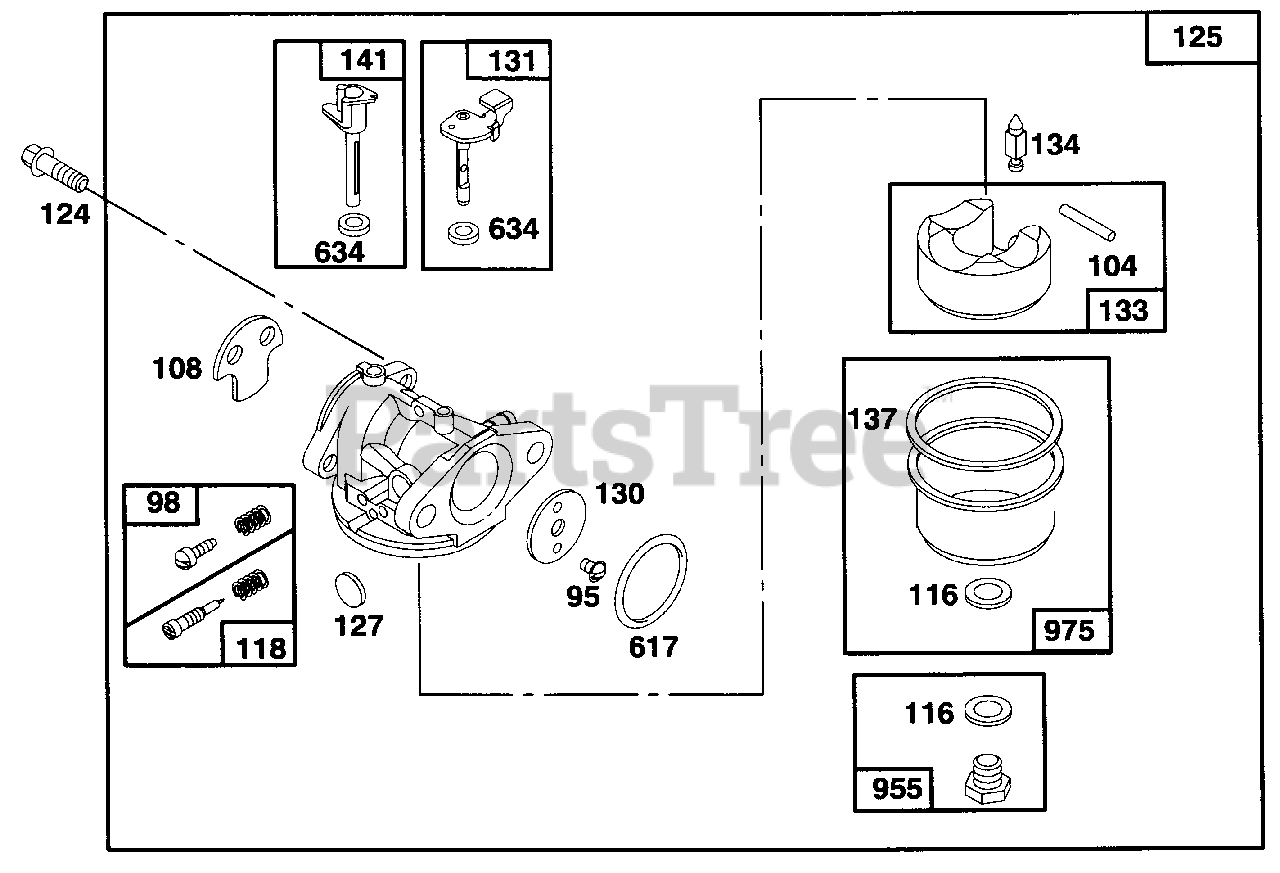

ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

  • Title

95

Lawn-Boy 94098

Screw-Throttle Valve Mtg.

$

$

Currently unavailable

98

Lawn-Boy 398185

Screw-Idle Adj.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

108

Lawn-Boy 223471

Valve-Choke

$

$

Currently unavailable

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

118

Lawn-Boy 493765

Valve-Needle

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Carburetor Mtg.

$

$

Currently unavailable

125

Lawn-Boy 494217

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

130

Lawn-Boy 223470

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft-Throttle

$

$

Currently unavailable

133

Lawn-Boy 398187

Float Assy.-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

141

Lawn-Boy 494218

Shaft-Choke

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

955

Lawn-Boy 493869

Screw-Bowl Mtg. (Std.) Note: 493763 Screw Bowl Mtg. (High Altitude)

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl Assy.-Carburetor

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable

1058

Lawn-Boy 272262

Owner's Manual

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable
