10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

Walk-Behind Mower

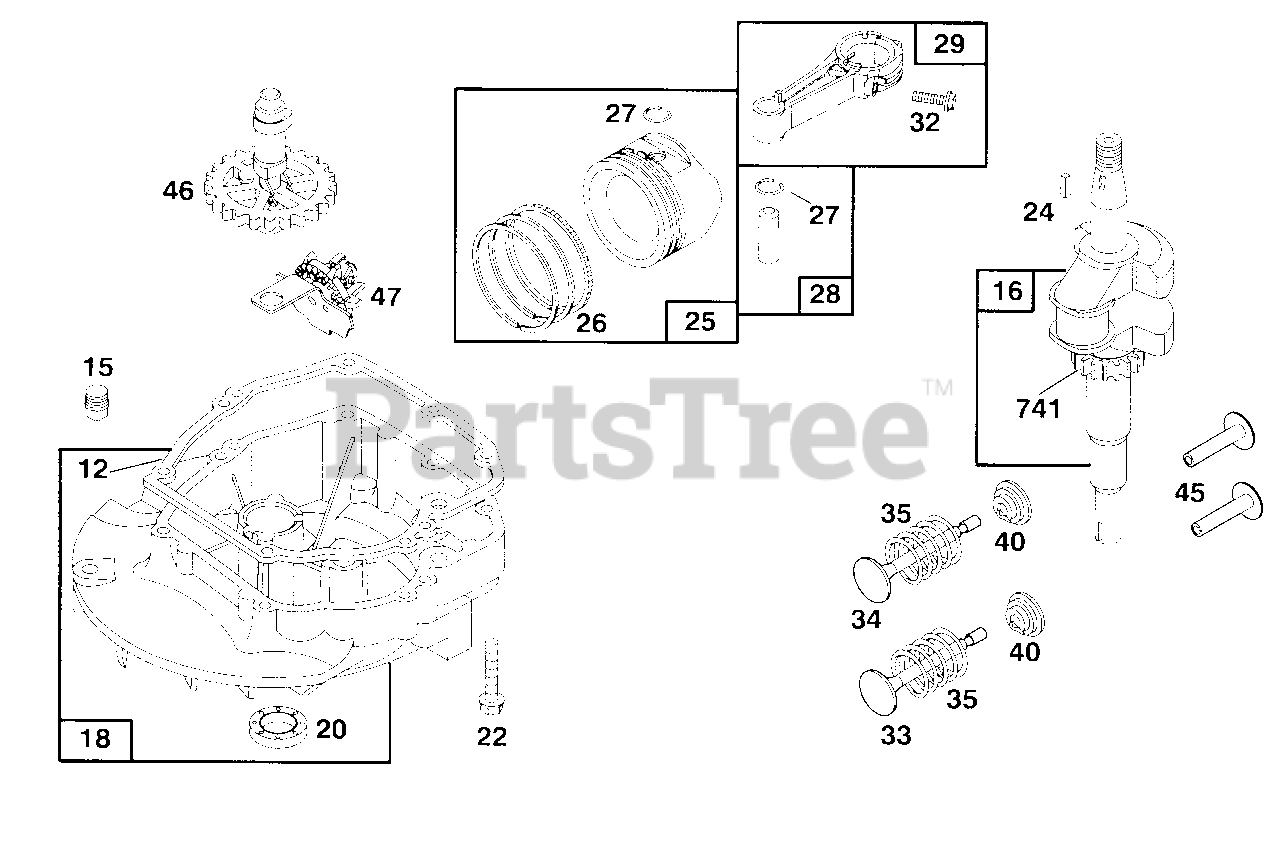

ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

  • Title
12

Lawn-Boy 272198

Gasket-Crankcase

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

15

Lawn-Boy 94720

Plug-Oil Drain

$

$

Currently unavailable

16

Lawn-Boy 496809

Crankshaft Note: Order 94388 For Timing Gear Key.

$

$

Currently unavailable

18

Lawn-Boy 493279

Sump-Engine

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

22

Lawn-Boy 94220

Screw-Hex. Head Note: 94612 Screw Hex. Head (One (1) Used in Hole Nearest Breather.)

$

$

Currently unavailable

24

Lawn-Boy 222698

Key-Flywheel

$

$

Currently unavailable

25

Lawn-Boy 493262

Piston Assy. (Standard)

$

$

Currently unavailable

Lawn-Boy 493385

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 493386

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 493387

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Lawn-Boy 493261

Ring Set (Standard)

$

$

Currently unavailable

Lawn-Boy 493388

Ring Set (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 493389

Ring Set (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 493390

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Lawn-Boy 26026

Lock-Piston Pin

$

$

Currently unavailable

28

Lawn-Boy 298909

Pin-Piston (Standard)

$

$

Currently unavailable

Lawn-Boy 298908

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Lawn-Boy 490566

Rod Assembly-Conn. Note: For Conn. Rod With .020" Undersize Crankpin Bearing-Order No. 490743.

$

$

Currently unavailable

32

Lawn-Boy 94699

Screw-Conn. Rod

$

$

Currently unavailable

33

Lawn-Boy 262651

Valve-Exhaust

$

$

Currently unavailable

34

Lawn-Boy 262652

Valve-Intake

$

$

Currently unavailable

35

Lawn-Boy 262224

Spring-Valve

$

$

Currently unavailable

40

Lawn-Boy 93312

Retainer-Valve Spring

$

$

Currently unavailable

45

Lawn-Boy 262204

Tappet-Valve

$

$

Currently unavailable

46

Lawn-Boy 492830

Gear-Cam

$

$

Currently unavailable

47

Lawn-Boy 493737

Slinger-Oil

$

$

Currently unavailable

121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

741

Lawn-Boy 262598

Gear-Timing

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable

1058

Lawn-Boy 272262

Owner's Manual

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable
