10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

Walk-Behind Mower

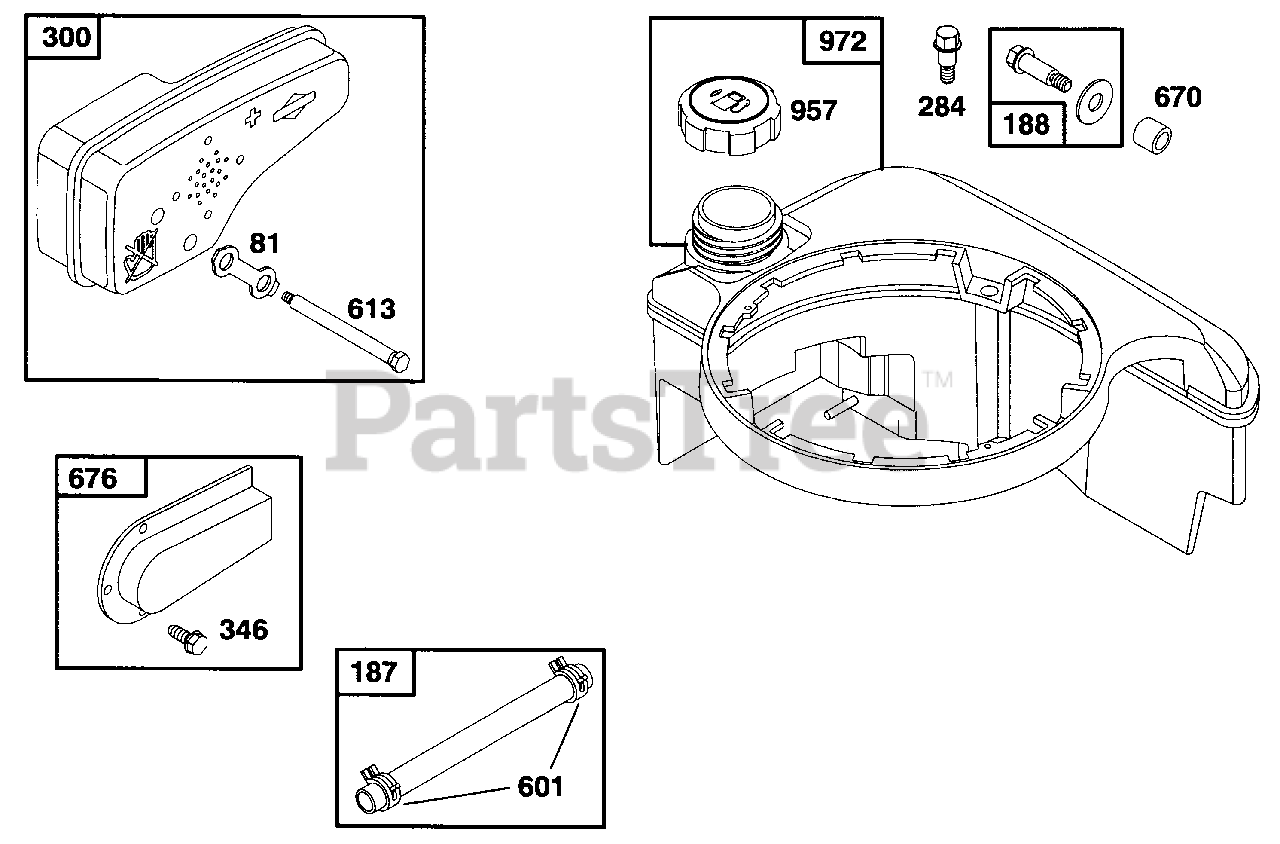

ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

  • Title
81

Lawn-Boy 223664

Lock-Muffler Screw

$

$

Currently unavailable

121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

187

Lawn-Boy 492790

Hose-Fuel

$

$

Currently unavailable

188

Lawn-Boy 398540

Screw-Tank Mtg.

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Hex. Head

$

$

Currently unavailable

300

Lawn-Boy 490547

Muffler Exhaust

$

$

Currently unavailable

346

Lawn-Boy 93705

Screw-Hex. Head

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

601

Lawn-Boy 93807

Clamp-Hose

$

$

Currently unavailable

613

Lawn-Boy 94231

Screw-Muffler Mtg.

$

$

Currently unavailable

670

Lawn-Boy 280512

Spacer-Fuel Tank

$

$

Currently unavailable

676

Lawn-Boy 493871

Deflector-Muffler

$

$

Currently unavailable

957

Lawn-Boy 397974

Cap Assy.-Fuel

$

$

Currently unavailable

972

Lawn-Boy 495224

Tank Assembly-Fuel

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable

1058

Lawn-Boy 272262

Owner's Manual

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable
